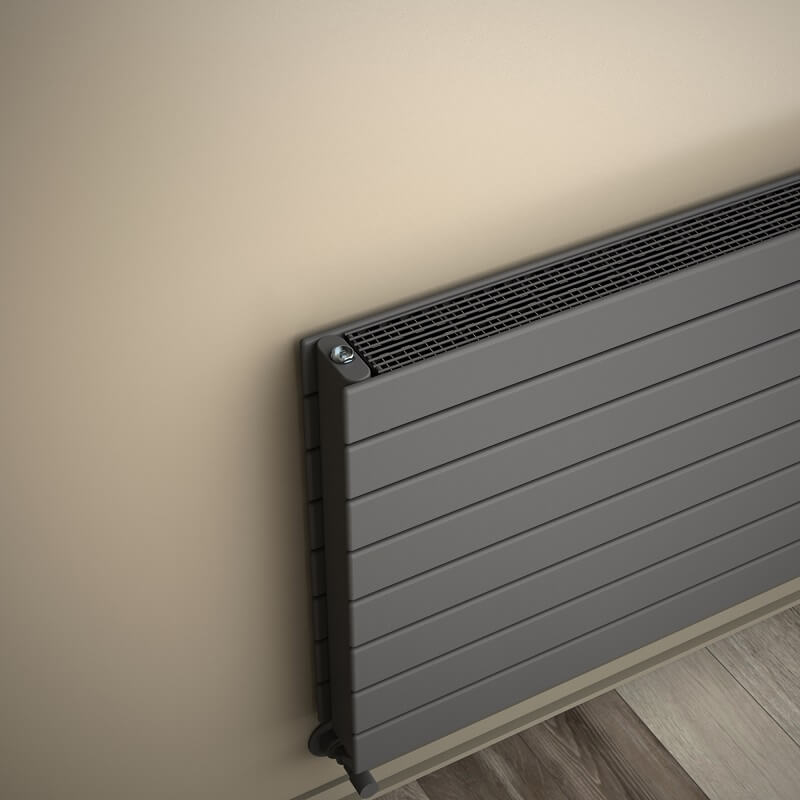

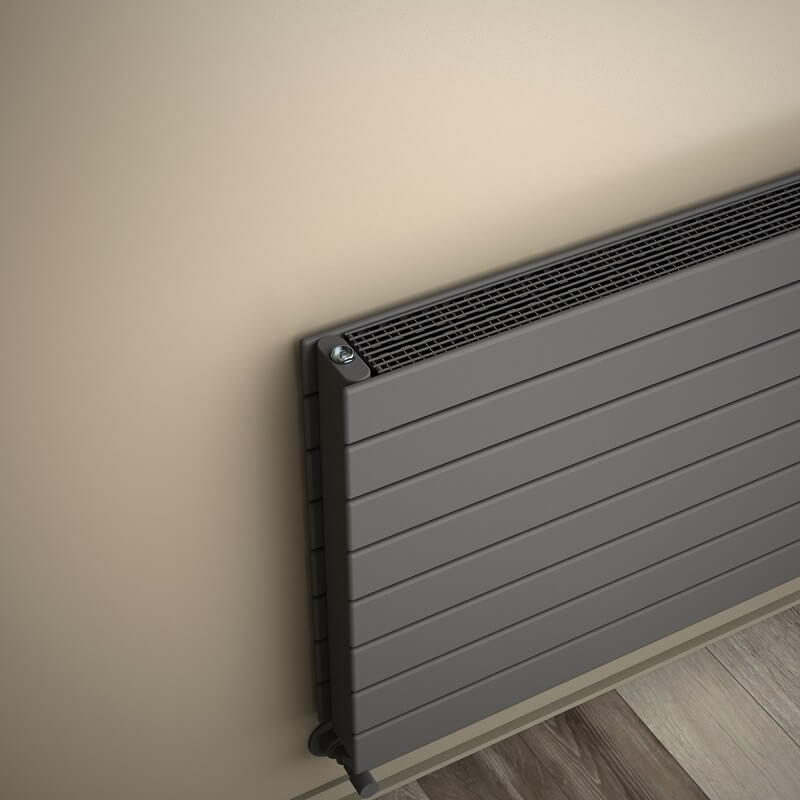

Type 22H Decorative Radiator 588x700 Anthracite

Name: Type 22H Decorative Radiator 588x700 Anthracite
SKU: 222H05880700B2TS
Price: 17571.84 TRY
Availability: InStock

Product Code : 222H05880700B2TS

Guarantee : 10 Year

TAXES Included

Price

43,929.60 TL

Discounted Price

17,571.84 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8274","68_0":"16509","67_0":"13764","66_0":"11019","65_0":"17769","64_0":"19029","63_0":"20289","62_0":"22221","61_0":"21951"},"variant_prices":{"69_0":"14643.2","68_0":"14643.2","67_0":"14643.2","66_0":"14643.2","65_0":"14643.2","64_0":"14643.2","63_0":"14643.2","62_0":"14643.2","61_0":"14643.2"},"variant_price_raws":{"69_0":14643.2,"68_0":14643.2,"67_0":14643.2,"66_0":14643.2,"65_0":14643.2,"64_0":14643.2,"63_0":14643.2,"62_0":14643.2,"61_0":14643.2},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":36608,"68_0":36608,"67_0":36608,"66_0":36608,"65_0":36608,"64_0":36608,"63_0":36608,"62_0":36608,"61_0":36608},"variant_supplier_codes":{"69_0":"222H05880700B2TS","68_0":"222H05880700B2TM1","67_0":"222H05880700B2TM3","66_0":"222H05880700B2TM2","65_0":"222H05880700B2TY0","64_0":"222H05880700B2TC1","63_0":"222H05880700B2TC2","62_0":"222H05880700B2TL4","61_0":"222H05880700B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=588 mm

• Width=700 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=7,6 lt

• Weight=26 kg

• Boxed Weight=27,54 kg

• Box Size=64x76x13,6 cm

TAPPING OPTIONS

• Standard Entry=650 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=790mm

• Cross Up-Right / Down-Left=790mm

• Cross Up-Left / Down-Right=790mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1001 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1262Kcal/h

• Heat Output 55/45-20° ?t=30°C=513Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1163 Watt

• Heat Output 90/70-20°?t=60°C=1466 Watt

• Heat Output 55/45-20°?t=30°C=596 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3969 Btu

• Heat Output 90/70-20°?t=60°C=5001 Btu

• Heat Output 55/45-20°?t=30°C=2033 Btu
