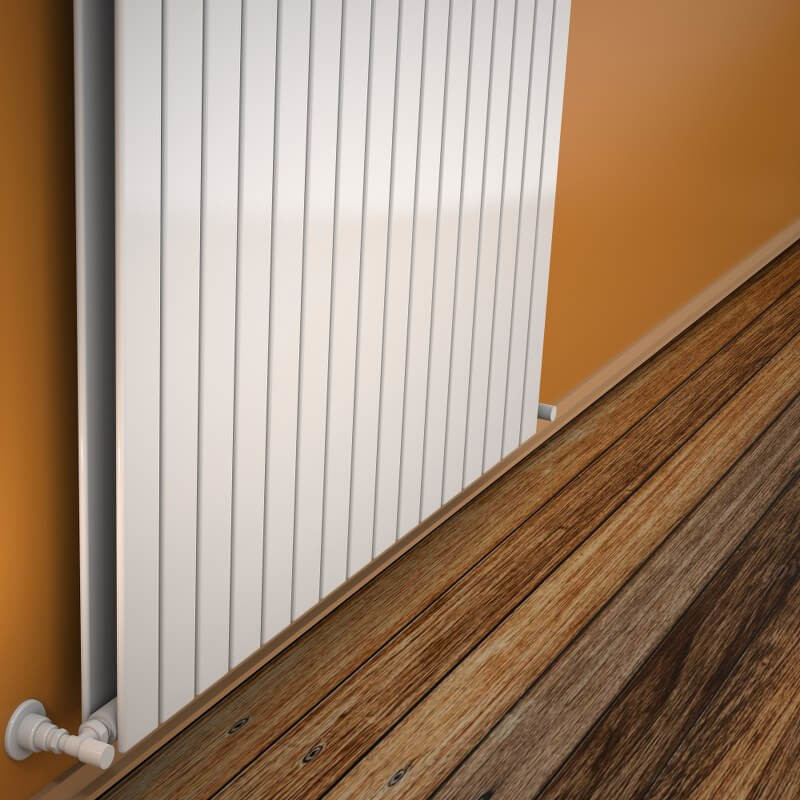

Type 20V Decorative Radiator 600x1180 White

Name: Type 20V Decorative Radiator 600x1180 White
SKU: 220V06001180B1PS
Price: 19237.68 TRY
Availability: InStock

Product Code : 220V06001180B1PS

Guarantee : 10 Year

TAXES Included

Price

34,977.60 TL

Discounted Price

19,237.68 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

31.12.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=600 mm

• Width=1180 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=16 Pieces

• Total Number of Profiles (Front + Back)=16+16 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,8 lt

• Weight=33,2 kg

• Boxed Weight=35,63 kg

• Box Size=122x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1270 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =1270 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1087 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1370Kcal/h

• Heat Output 55/45-20° ?t=30°C=557 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1263 Watt

• Heat Output 90/70-20°?t=60°C=1592 Watt

• Heat Output 55/45-20°?t=30°C=647 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4310 Btu

• Heat Output 90/70-20°?t=60°C=5431 Btu

• Heat Output 55/45-20°?t=30°C=2207 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
