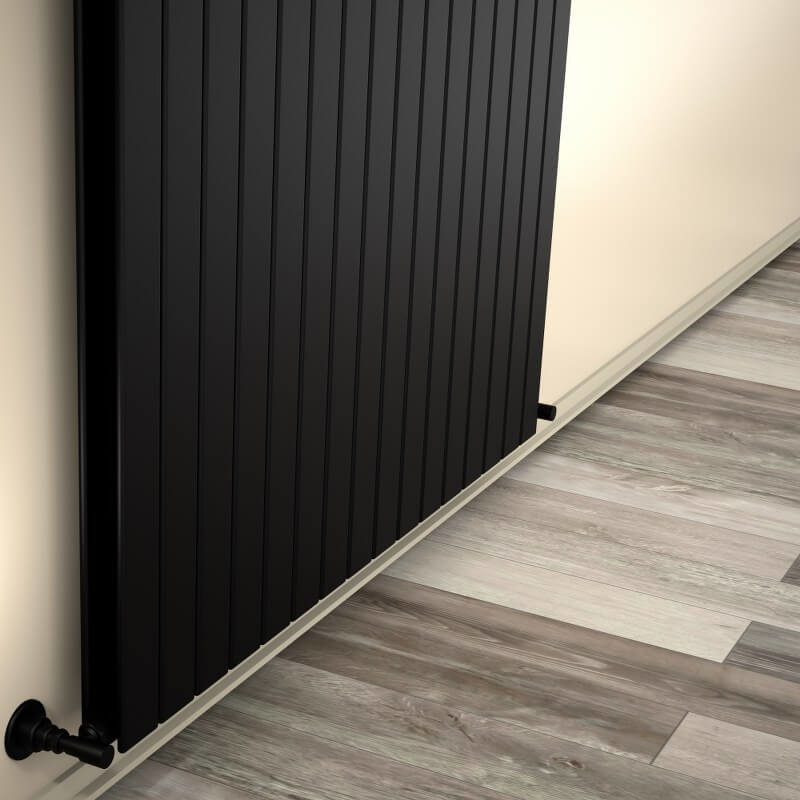

Type 20V Decorative Radiator 600x1180 Matte Black

Product Code : 220V06001180B3MS
Guarantee : 10 Year
TAXES Included
Price
:
43,722.00 TL
Discounted Price
:
24,047.10 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
31.12.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)
  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height
    =600 mm

    • Width=1180 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=16 Pieces

    • Total Number of Profiles (Front + Back)=16+16 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=11,8 lt

    • Weight=33,2 kg

    • Boxed Weight
    =35,63 kg

    • Box Size=122x65x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1270 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =1270 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1087 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1370Kcal/h

    • Heat Output 55/45-20° ?t=30°C=557 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1263 Watt

    • Heat Output 90/70-20°?t=60°C=1592 Watt

    • Heat Output 55/45-20°?t=30°C=647 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=4310 Btu

    • Heat Output 90/70-20°?t=60°C=5431 Btu

    • Heat Output 55/45-20°?t=30°C=2207 Btu
