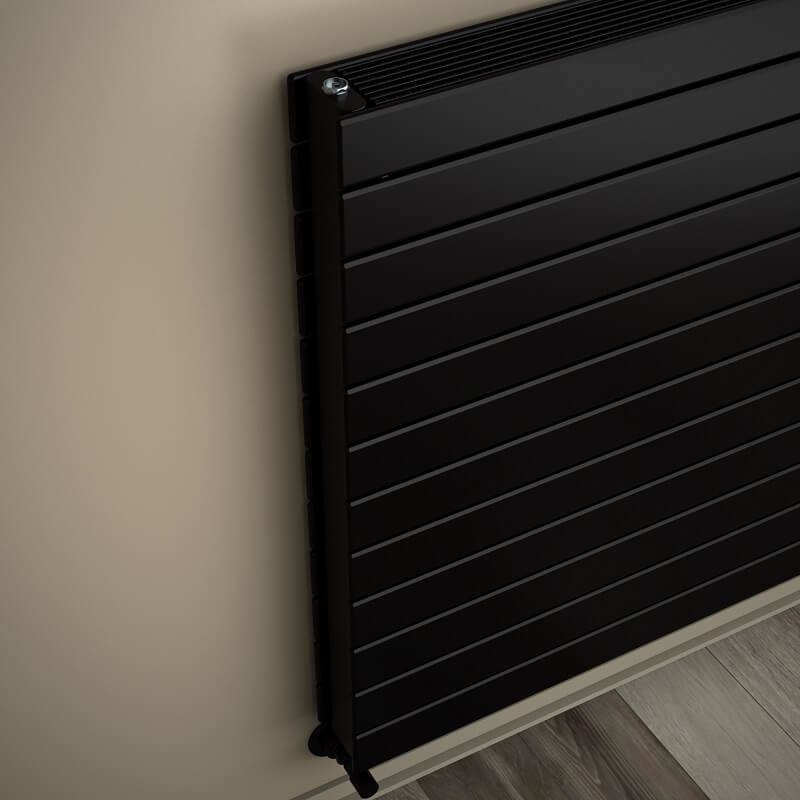

Type 22H Decorative Radiator 884x2300 Matte Black

Name: Type 22H Decorative Radiator 884x2300 Matte Black
SKU: 222H08842300B3MS
Price: 62282.40 TRY
Availability: InStock

Product Code : 222H08842300B3MS

Guarantee : 10 Year

TAXES Included

Price

155,706.00 TL

Discounted Price

62,282.40 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8402","76_0":"16637","75_0":"13892","74_0":"11147","73_0":"17897","72_0":"19157","71_0":"20417","70_0":"22601","78_0":"22937"},"variant_prices":{"77_0":"51902","76_0":"51902","75_0":"51902","74_0":"51902","73_0":"51902","72_0":"51902","71_0":"51902","70_0":"51902","78_0":"51902"},"variant_price_raws":{"77_0":51902,"76_0":51902,"75_0":51902,"74_0":51902,"73_0":51902,"72_0":51902,"71_0":51902,"70_0":51902,"78_0":51902},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":129755,"76_0":129755,"75_0":129755,"74_0":129755,"73_0":129755,"72_0":129755,"71_0":129755,"70_0":129755,"78_0":129755},"variant_supplier_codes":{"77_0":"222H08842300B3MS","76_0":"222H08842300B3MM1","75_0":"222H08842300B3MM3","74_0":"222H08842300B3MM2","73_0":"222H08842300B3MY0","72_0":"222H08842300B3MC1","71_0":"222H08842300B3MC2","70_0":"222H08842300B3MR5","78_0":"222H08842300B3ML5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=884 mm

• Width=2300 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=30,4 lt

• Weight=122,4 kg

• Boxed Weight=128,8 kg

• Box Size=94x236x13,6 cm

TAPPING OPTIONS

• Standard Entry=2250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2390mm

• Cross Up-Right / Down-Left=2390mm

• Cross Up-Left / Down-Right=2390mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 4427 Kcal/h

• Heat Output 90/70-20° ?t=60°C=5579Kcal/h

• Heat Output 55/45-20° ?t=30°C=2267Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=5147 Watt

• Heat Output 90/70-20°?t=60°C=6486 Watt

• Heat Output 55/45-20°?t=30°C=2636 Watt

Btu

• Heat Output 75/65-20°?t=50°C=17562 Btu

• Heat Output 90/70-20°?t=60°C=22129 Btu

• Heat Output 55/45-20°?t=30°C=8992 Btu
