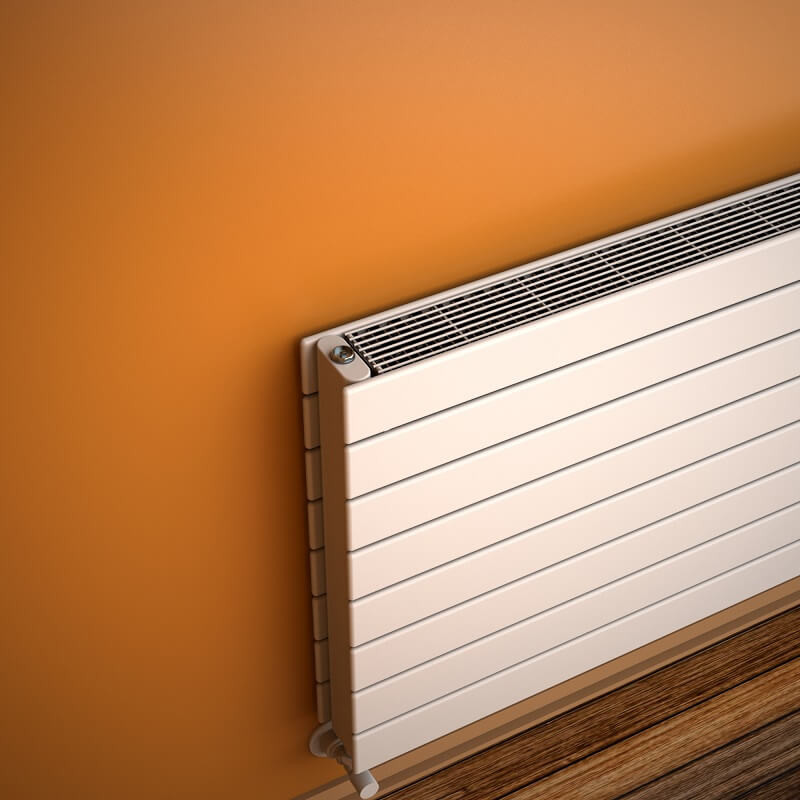

Type 22H Decorative Radiator 588x1100 White

Name: Type 22H Decorative Radiator 588x1100 White
SKU: 222H05881100B1PS
Price: 24012.96 TRY
Availability: InStock

Product Code : 222H05881100B1PS

Guarantee : 10 Year

TAXES Included

Price

60,032.40 TL

Discounted Price

24,012.96 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8283","68_0":"16518","67_0":"13773","66_0":"11028","65_0":"17778","64_0":"19038","63_0":"20298","62_0":"22230","61_0":"21960"},"variant_prices":{"69_0":"20010.8","68_0":"20010.8","67_0":"20010.8","66_0":"20010.8","65_0":"20010.8","64_0":"20010.8","63_0":"20010.8","62_0":"20010.8","61_0":"20010.8"},"variant_price_raws":{"69_0":20010.8,"68_0":20010.8,"67_0":20010.8,"66_0":20010.8,"65_0":20010.8,"64_0":20010.8,"63_0":20010.8,"62_0":20010.8,"61_0":20010.8},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":50027,"68_0":50027,"67_0":50027,"66_0":50027,"65_0":50027,"64_0":50027,"63_0":50027,"62_0":50027,"61_0":50027},"variant_supplier_codes":{"69_0":"222H05881100B1PS","68_0":"222H05881100B1PM1","67_0":"222H05881100B1PM3","66_0":"222H05881100B1PM2","65_0":"222H05881100B1PY0","64_0":"222H05881100B1PC1","63_0":"222H05881100B1PC2","62_0":"222H05881100B1PL4","61_0":"222H05881100B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=588 mm

• Width=1100 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,8 lt

• Weight=39,9 kg

• Boxed Weight=42,15 kg

• Box Size=64x116x13,6 cm

TAPPING OPTIONS

• Standard Entry=1050 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1190mm

• Cross Up-Right / Down-Left=1190mm

• Cross Up-Left / Down-Right=1190mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1585 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1998Kcal/h

• Heat Output 55/45-20° ?t=30°C=812Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1842 Watt

• Heat Output 90/70-20°?t=60°C=2321 Watt

• Heat Output 55/45-20°?t=30°C=944 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6285 Btu

• Heat Output 90/70-20°?t=60°C=7920 Btu

• Heat Output 55/45-20°?t=30°C=3218 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
