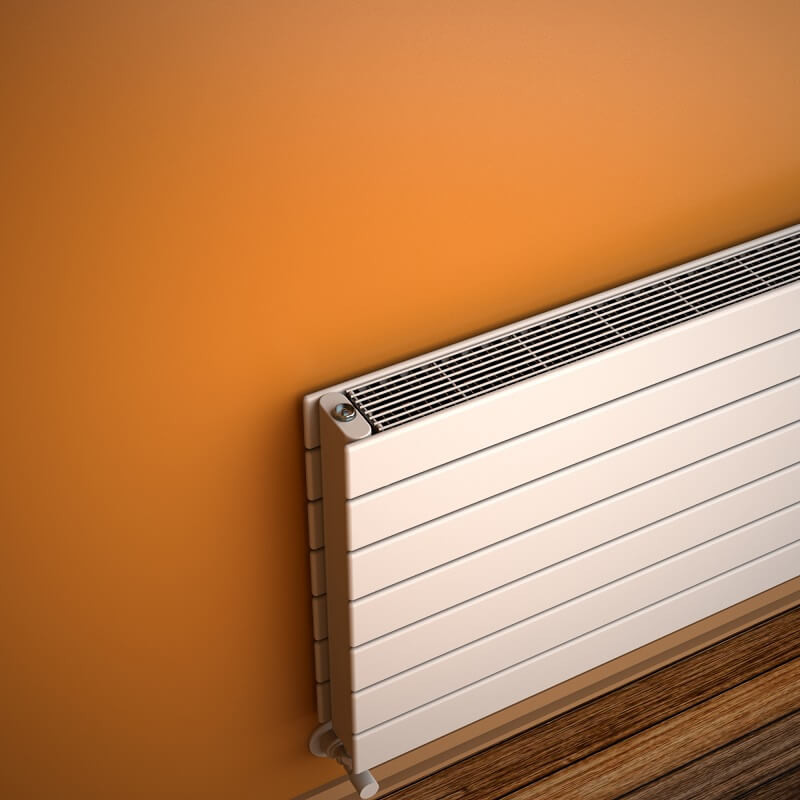

Type 22H Decorative Radiator 514x2600 White

Name: Type 22H Decorative Radiator 514x2600 White
SKU: 222H05142600B1PS
Price: 42768.96 TRY
Availability: InStock

Product Code : 222H05142600B1PS

Guarantee : 10 Year

TAXES Included

Price

106,922.40 TL

Discounted Price

42,768.96 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8268","59_0":"11013","58_0":"13758","57_0":"16503","56_0":"17763","55_0":"19023","54_0":"20283","53_0":"21399","52_0":"21735"},"variant_prices":{"60_0":"35640.8","59_0":"35640.8","58_0":"35640.8","57_0":"35640.8","56_0":"35640.8","55_0":"35640.8","54_0":"35640.8","53_0":"35640.8","52_0":"35640.8"},"variant_price_raws":{"60_0":35640.8,"59_0":35640.8,"58_0":35640.8,"57_0":35640.8,"56_0":35640.8,"55_0":35640.8,"54_0":35640.8,"53_0":35640.8,"52_0":35640.8},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":89102,"59_0":89102,"58_0":89102,"57_0":89102,"56_0":89102,"55_0":89102,"54_0":89102,"53_0":89102,"52_0":89102},"variant_supplier_codes":{"60_0":"222H05142600B1PS","59_0":"222H05142600B1PM2","58_0":"222H05142600B1PM3","57_0":"222H05142600B1PM1","56_0":"222H05142600B1PY0","55_0":"222H05142600B1PC1","54_0":"222H05142600B1PC2","53_0":"222H05142600B1PR2","52_0":"222H05142600B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=514 mm

• Width=2600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19,8 lt

• Weight=80,6 kg

• Boxed Weight=84,91 kg

• Box Size=57x266x13,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 3392 Kcal/h

• Heat Output 90/70-20° ?t=60°C=4274Kcal/h

• Heat Output 55/45-20° ?t=30°C=1737Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3944 Watt

• Heat Output 90/70-20°?t=60°C=4970 Watt

• Heat Output 55/45-20°?t=30°C=2020 Watt

Btu

• Heat Output 75/65-20°?t=50°C=13457 Btu

• Heat Output 90/70-20°?t=60°C=16956 Btu

• Heat Output 55/45-20°?t=30°C=6890 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
