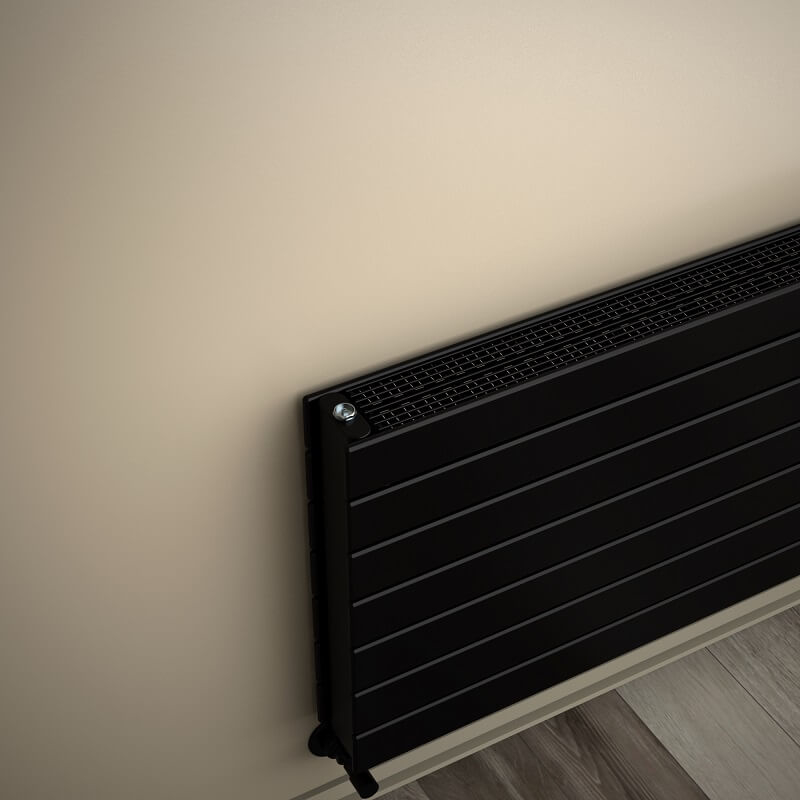

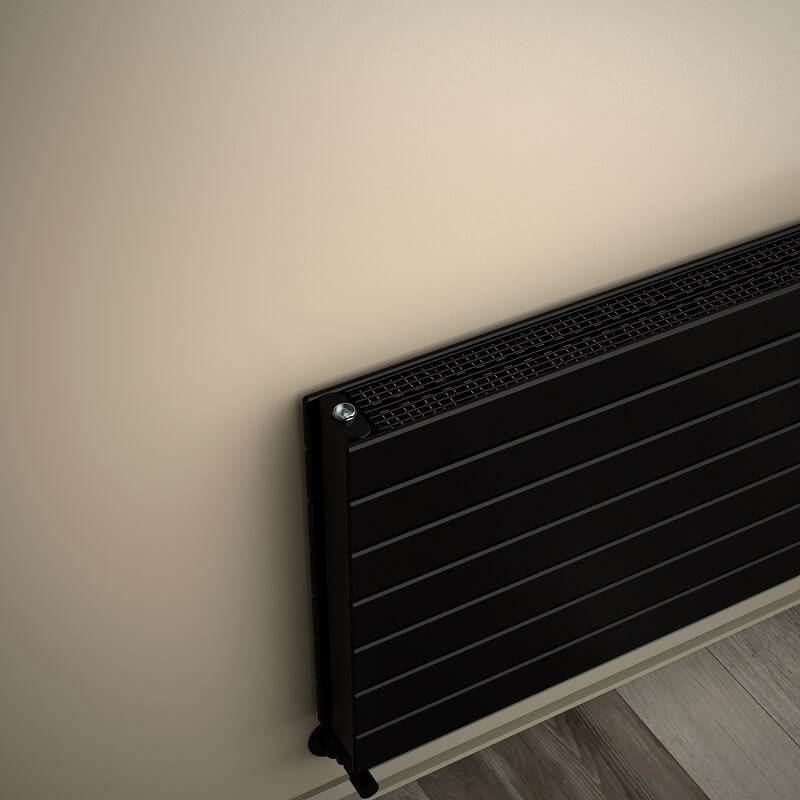

Type 22H Decorative Radiator 514x1900 Matte Black

Name: Type 22H Decorative Radiator 514x1900 Matte Black
SKU: 222H05141900B3MS
Price: 32917.44 TRY
Availability: InStock

Product Code : 222H05141900B3MS

Guarantee : 10 Year

TAXES Included

Price

82,293.60 TL

Discounted Price

32,917.44 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8242","59_0":"10987","58_0":"13732","57_0":"16477","56_0":"17737","55_0":"18997","54_0":"20257","53_0":"21373","52_0":"21709"},"variant_prices":{"60_0":"27431.2","59_0":"27431.2","58_0":"27431.2","57_0":"27431.2","56_0":"27431.2","55_0":"27431.2","54_0":"27431.2","53_0":"27431.2","52_0":"27431.2"},"variant_price_raws":{"60_0":27431.2,"59_0":27431.2,"58_0":27431.2,"57_0":27431.2,"56_0":27431.2,"55_0":27431.2,"54_0":27431.2,"53_0":27431.2,"52_0":27431.2},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":68578,"59_0":68578,"58_0":68578,"57_0":68578,"56_0":68578,"55_0":68578,"54_0":68578,"53_0":68578,"52_0":68578},"variant_supplier_codes":{"60_0":"222H05141900B3MS","59_0":"222H05141900B3MM2","58_0":"222H05141900B3MM3","57_0":"222H05141900B3MM1","56_0":"222H05141900B3MY0","55_0":"222H05141900B3MC1","54_0":"222H05141900B3MC2","53_0":"222H05141900B3MR2","52_0":"222H05141900B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 22H

• Material =Steel

• Height=514 mm

• Width=1900 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15 lt

• Weight=59,3 kg

• Boxed Weight=62,53 kg

• Box Size=57x196x13,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2479 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3124Kcal/h

• Heat Output 55/45-20° ?t=30°C=1270Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2882 Watt

• Heat Output 90/70-20°?t=60°C=3632 Watt

• Heat Output 55/45-20°?t=30°C=1476 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9834 Btu

• Heat Output 90/70-20°?t=60°C=12391 Btu

• Heat Output 55/45-20°?t=30°C=5036 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

Other Colors

%60 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8240","59_0":"10985","58_0":"13730","57_0":"16475","56_0":"17735","55_0":"18995","54_0":"20255","53_0":"21371","52_0":"21707"},"variant_prices":{"60_0":"27431.2","59_0":"27431.2","58_0":"27431.2","57_0":"27431.2","56_0":"27431.2","55_0":"27431.2","54_0":"27431.2","53_0":"27431.2","52_0":"27431.2"},"variant_price_raws":{"60_0":27431.2,"59_0":27431.2,"58_0":27431.2,"57_0":27431.2,"56_0":27431.2,"55_0":27431.2,"54_0":27431.2,"53_0":27431.2,"52_0":27431.2},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":68578,"59_0":68578,"58_0":68578,"57_0":68578,"56_0":68578,"55_0":68578,"54_0":68578,"53_0":68578,"52_0":68578},"variant_supplier_codes":{"60_0":"222H05141900B1PS","59_0":"222H05141900B1PM2","58_0":"222H05141900B1PM3","57_0":"222H05141900B1PM1","56_0":"222H05141900B1PY0","55_0":"222H05141900B1PC1","54_0":"222H05141900B1PC2","53_0":"222H05141900B1PR2","52_0":"222H05141900B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

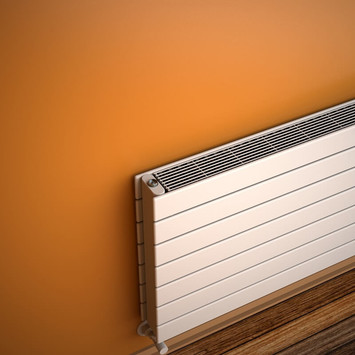

Type 22H Decorative Radiator 514x1900 White ∆t50°C=2479 Kcal/h | ∆t60°C= 3125 Kcal/h | 7 Pipes | Heats 16-48 m2
