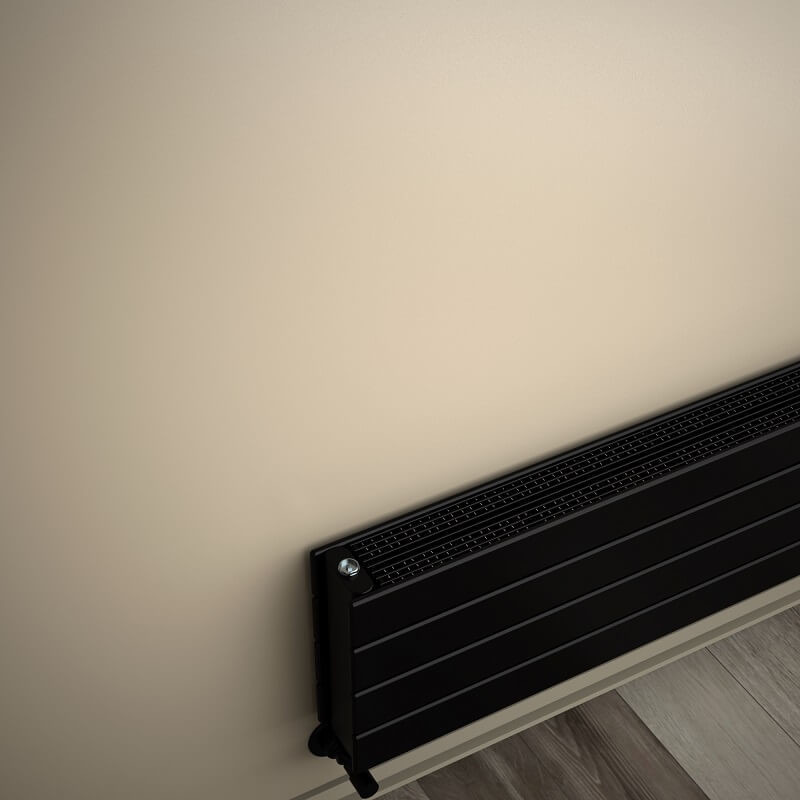

Type 22H Decorative Radiator 292x2600 Matte Black

Product Code : 222H02922600B3MS
Guarantee : 10 Year
TAXES Included
Price
:
67,018.80 TL
Discounted Price
:
26,807.52 TL
<p>15 Year Warranty</p>
15 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-25cm Entry Right Side-25cm Entry Right

Side-25cm Entry Left Side-25cm Entry Left

Choose Quantity
Planned Delivery
:
28.11.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 22H

    • Material =Steel

    • Height    =292 mm

    • Width=2600 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+4 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x80 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=100 mm

    • Wall to Center of Inlet=85 mm

    • Wall Projection Distance=135 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=11,3 lt

    • Weight=46,1 kg

    • Boxed Weight    =48,68 kg

    • Box Size=35x266x13,6 cm


    TAPPING OPTIONS




    • Standard Entry=2550 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=2690mm

    • Cross Up-Right / Down-Left=2690mm

    • Cross Up-Left / Down-Right=2690mm

    • Side - Right=250mm

    • Side - Left=250mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 2206 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2780Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1130Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2564 Watt

    • Heat Output 90/70-20°?t=60°C=3231 Watt

    • Heat Output 55/45-20°?t=30°C=1313 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=8749 Btu

    • Heat Output 90/70-20°?t=60°C=11024 Btu

    • Heat Output 55/45-20°?t=30°C=4480 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

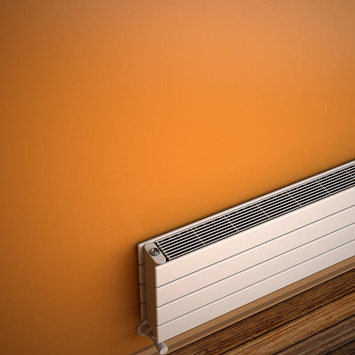

  • %60 Discount - Type 22H Decorative Radiator 292x2600 White
    AKS Seçenekleri
    Type 22H Decorative Radiator 292x2600 White ∆t50°C=2205 Kcal/h | ∆t60°C= 2780 Kcal/h | 4 Pipes | Heats 15-43 m2
    67,018.80 TL
    26,807.52 TL

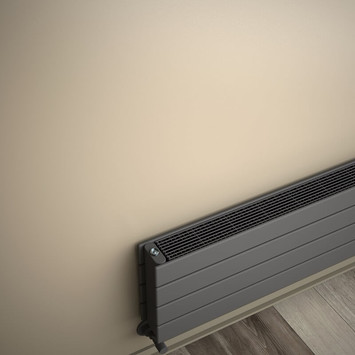

  • %60 Discount - Type 22H Decorative Radiator 292x2600 Anthracite
