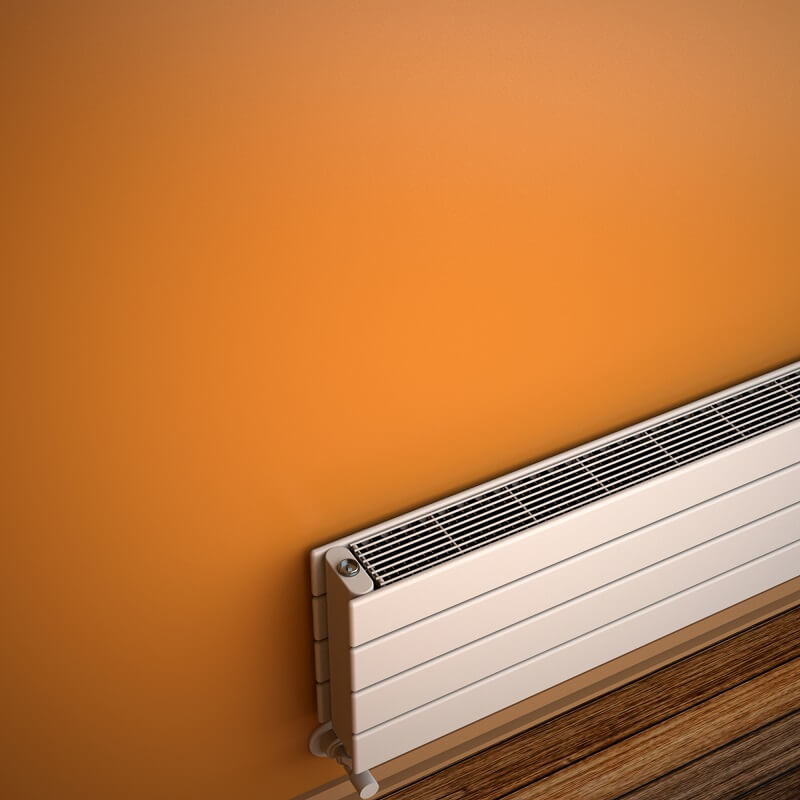

Type 22H Decorative Radiator 292x1700 White

Product Code : 222H02921700B1PS
Guarantee : 10 Year
TAXES Included
Price
:
33,902.40 TL
Discounted Price
:
16,951.20 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-25cm Entry Right Side-25cm Entry Right

Side-25cm Entry Left Side-25cm Entry Left

Choose Quantity
Planned Delivery
:
13.08.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 22H

    • Material =Steel

    • Height    =292 mm

    • Width=1700 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+4 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=30x80 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=100 mm

    • Wall to Center of Inlet=85 mm

    • Wall Projection Distance=135 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=7,8 lt

    • Weight=30,4 kg

    • Boxed Weight    =32,19 kg

    • Box Size=35x176x13,6 cm


    TAPPING OPTIONS




    • Standard Entry=1650 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1790mm

    • Cross Up-Right / Down-Left=1790mm

    • Cross Up-Left / Down-Right=1790mm

    • Side - Right=250mm

    • Side - Left=250mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1443 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1819Kcal/h

    • Heat Output 55/45-20° ?t=30°C=739Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1677 Watt

    • Heat Output 90/70-20°?t=60°C=2114 Watt

    • Heat Output 55/45-20°?t=30°C=859 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5722 Btu

    • Heat Output 90/70-20°?t=60°C=7210 Btu

    • Heat Output 55/45-20°?t=30°C=2930 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
