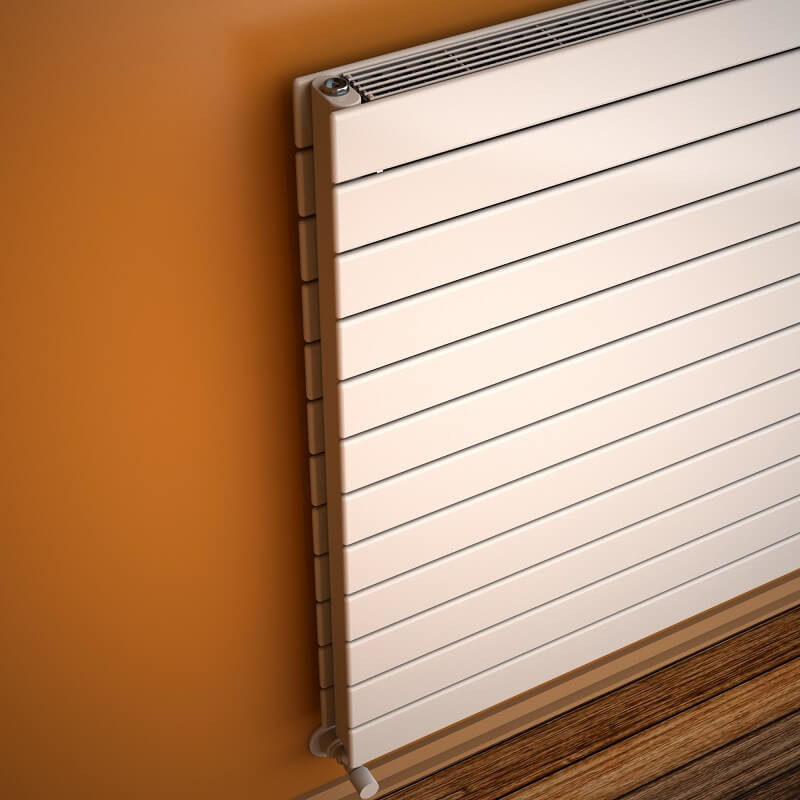

Type 21H Decorative Radiator 884x1900 White

Name: Type 21H Decorative Radiator 884x1900 White
SKU: 221H08841900B1PS
Price: 43618.20 TRY
Availability: InStock

Product Code : 221H08841900B1PS

Guarantee : 10 Year

TAXES Included

Price

87,236.40 TL

Discounted Price

43,618.20 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8081","76_0":"16316","75_0":"13571","74_0":"10826","73_0":"17576","72_0":"18836","71_0":"20096","70_0":"22499","78_0":"22835"},"variant_prices":{"77_0":36348.5,"76_0":37148.5,"75_0":37148.5,"74_0":37148.5,"73_0":37148.5,"72_0":37148.5,"71_0":37148.5,"70_0":37148.5,"78_0":37148.5},"variant_price_raws":{"77_0":36348.5,"76_0":37148.5,"75_0":37148.5,"74_0":37148.5,"73_0":37148.5,"72_0":37148.5,"71_0":37148.5,"70_0":37148.5,"78_0":37148.5},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"72697","76_0":"74297","75_0":"74297","74_0":"74297","73_0":"74297","72_0":"74297","71_0":"74297","70_0":"74297","78_0":"74297"},"variant_supplier_codes":{"77_0":"221H08841900B1PS","76_0":"221H08841900B1PM1","75_0":"221H08841900B1PM3","74_0":"221H08841900B1PM2","73_0":"221H08841900B1PY0","72_0":"221H08841900B1PC1","71_0":"221H08841900B1PC2","70_0":"221H08841900B1PR5","78_0":"221H08841900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=884 mm

• Width=1900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=27,3 lt

• Weight=92,8 kg

• Boxed Weight=98,14 kg

• Box Size=94x196x11,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2907 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3663Kcal/h

• Heat Output 55/45-20° ?t=30°C=1489Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3380 Watt

• Heat Output 90/70-20°?t=60°C=4259 Watt

• Heat Output 55/45-20°?t=30°C=1731 Watt

Btu

• Heat Output 75/65-20°?t=50°C=11533 Btu

• Heat Output 90/70-20°?t=60°C=14532 Btu

• Heat Output 55/45-20°?t=30°C=5905 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8081","76_0":"16316","75_0":"13571","74_0":"10826","73_0":"17576","72_0":"18836","71_0":"20096","70_0":"22499","78_0":"22835"},"variant_prices":{"77_0":36348.5,"76_0":37148.5,"75_0":37148.5,"74_0":37148.5,"73_0":37148.5,"72_0":37148.5,"71_0":37148.5,"70_0":37148.5,"78_0":37148.5},"variant_price_raws":{"77_0":36348.5,"76_0":37148.5,"75_0":37148.5,"74_0":37148.5,"73_0":37148.5,"72_0":37148.5,"71_0":37148.5,"70_0":37148.5,"78_0":37148.5},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"72697","76_0":"74297","75_0":"74297","74_0":"74297","73_0":"74297","72_0":"74297","71_0":"74297","70_0":"74297","78_0":"74297"},"variant_supplier_codes":{"77_0":"221H08841900B1PS","76_0":"221H08841900B1PM1","75_0":"221H08841900B1PM3","74_0":"221H08841900B1PM2","73_0":"221H08841900B1PY0","72_0":"221H08841900B1PC1","71_0":"221H08841900B1PC2","70_0":"221H08841900B1PR5","78_0":"221H08841900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Type 21H Decorative Radiator 884x1900 White ∆t50°C=2907 Kcal/h | ∆t60°C= 3664 Kcal/h | 12 Pipes | Heats 19-56 m2

87,236.40 TL

43,618.20 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"8082","76_0":"16317","75_0":"13572","74_0":"10827","73_0":"17577","72_0":"18837","71_0":"20097","70_0":"22500","78_0":"22836"},"variant_prices":{"77_0":45435.625,"76_0":46235.625,"75_0":46235.625,"74_0":46235.625,"73_0":46235.625,"72_0":46235.625,"71_0":46235.625,"70_0":46235.625,"78_0":46235.625},"variant_price_raws":{"77_0":45435.625,"76_0":46235.625,"75_0":46235.625,"74_0":46235.625,"73_0":46235.625,"72_0":46235.625,"71_0":46235.625,"70_0":46235.625,"78_0":46235.625},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"90871.25","76_0":"92471.25","75_0":"92471.25","74_0":"92471.25","73_0":"92471.25","72_0":"92471.25","71_0":"92471.25","70_0":"92471.25","78_0":"92471.25"},"variant_supplier_codes":{"77_0":"221H08841900B2TS","76_0":"221H08841900B2TM1","75_0":"221H08841900B2TM3","74_0":"221H08841900B2TM2","73_0":"221H08841900B2TY0","72_0":"221H08841900B2TC1","71_0":"221H08841900B2TC2","70_0":"221H08841900B2TR5","78_0":"221H08841900B2TL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

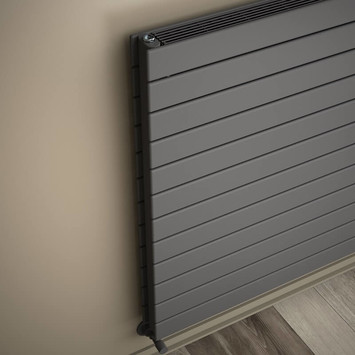

Type 21H Decorative Radiator 884x1900 Anthracite ∆t50°C=2907 Kcal/h | ∆t60°C= 3664 Kcal/h | 12 Pipes | Heats 19-56 m2
