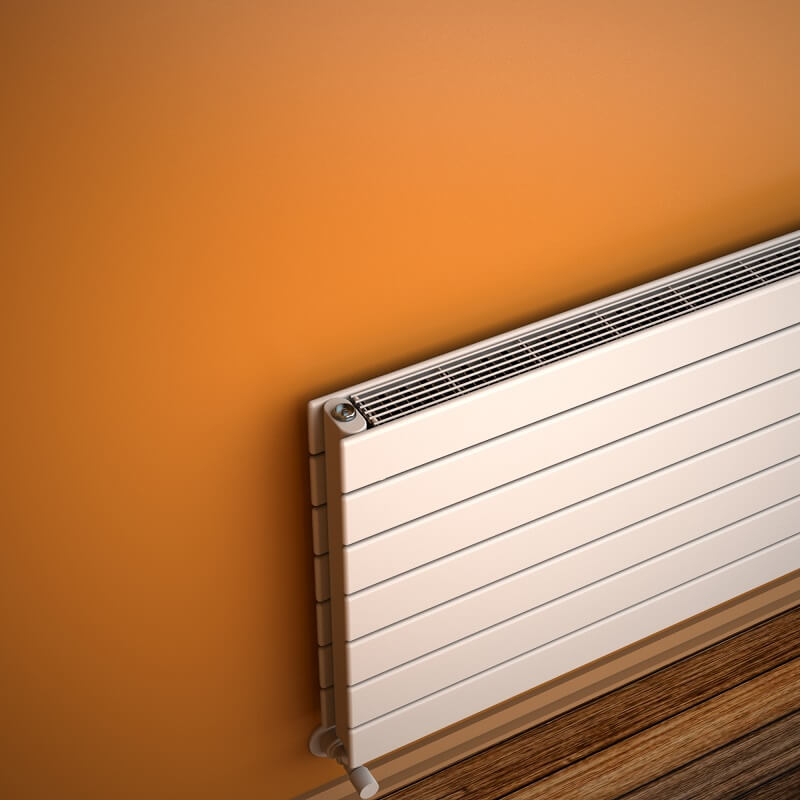

Type 21H Decorative Radiator 514x900 White

Name: Type 21H Decorative Radiator 514x900 White
SKU: 221H05140900B1PS
Price: 15462.60 TRY
Availability: InStock

Product Code : 221H05140900B1PS

Guarantee : 10 Year

TAXES Included

Price

30,925.20 TL

Discounted Price

15,462.60 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7897","59_0":"10642","58_0":"13387","57_0":"16132","56_0":"17392","55_0":"18652","54_0":"19912","53_0":"21247","52_0":"21583"},"variant_prices":{"60_0":12885.5,"59_0":13685.5,"58_0":13685.5,"57_0":13685.5,"56_0":13685.5,"55_0":13685.5,"54_0":13685.5,"53_0":13685.5,"52_0":13685.5},"variant_price_raws":{"60_0":12885.5,"59_0":13685.5,"58_0":13685.5,"57_0":13685.5,"56_0":13685.5,"55_0":13685.5,"54_0":13685.5,"53_0":13685.5,"52_0":13685.5},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"25771","59_0":"27371","58_0":"27371","57_0":"27371","56_0":"27371","55_0":"27371","54_0":"27371","53_0":"27371","52_0":"27371"},"variant_supplier_codes":{"60_0":"221H05140900B1PS","59_0":"221H05140900B1PM2","58_0":"221H05140900B1PM3","57_0":"221H05140900B1PM1","56_0":"221H05140900B1PY0","55_0":"221H05140900B1PC1","54_0":"221H05140900B1PC2","53_0":"221H05140900B1PR2","52_0":"221H05140900B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

26.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=514 mm

• Width=900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,2 lt

• Weight=26,3 kg

• Boxed Weight=27,99 kg

• Box Size=57x96x11,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 933 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1176Kcal/h

• Heat Output 55/45-20° ?t=30°C=478Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1084 Watt

• Heat Output 90/70-20°?t=60°C=1366 Watt

• Heat Output 55/45-20°?t=30°C=556 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3699 Btu

• Heat Output 90/70-20°?t=60°C=4661 Btu

• Heat Output 55/45-20°?t=30°C=1894 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7897","59_0":"10642","58_0":"13387","57_0":"16132","56_0":"17392","55_0":"18652","54_0":"19912","53_0":"21247","52_0":"21583"},"variant_prices":{"60_0":12885.5,"59_0":13685.5,"58_0":13685.5,"57_0":13685.5,"56_0":13685.5,"55_0":13685.5,"54_0":13685.5,"53_0":13685.5,"52_0":13685.5},"variant_price_raws":{"60_0":12885.5,"59_0":13685.5,"58_0":13685.5,"57_0":13685.5,"56_0":13685.5,"55_0":13685.5,"54_0":13685.5,"53_0":13685.5,"52_0":13685.5},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"25771","59_0":"27371","58_0":"27371","57_0":"27371","56_0":"27371","55_0":"27371","54_0":"27371","53_0":"27371","52_0":"27371"},"variant_supplier_codes":{"60_0":"221H05140900B1PS","59_0":"221H05140900B1PM2","58_0":"221H05140900B1PM3","57_0":"221H05140900B1PM1","56_0":"221H05140900B1PY0","55_0":"221H05140900B1PC1","54_0":"221H05140900B1PC2","53_0":"221H05140900B1PR2","52_0":"221H05140900B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x900 White ∆t50°C=932 Kcal/h | ∆t60°C= 1175 Kcal/h | 7 Pipes | Heats 6-18 m2

30,925.20 TL

15,462.60 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7898","59_0":"10643","58_0":"13388","57_0":"16133","56_0":"17393","55_0":"18653","54_0":"19913","53_0":"21248","52_0":"21584"},"variant_prices":{"60_0":16106.875,"59_0":16906.875,"58_0":16906.875,"57_0":16906.875,"56_0":16906.875,"55_0":16906.875,"54_0":16906.875,"53_0":16906.875,"52_0":16906.875},"variant_price_raws":{"60_0":16106.875,"59_0":16906.875,"58_0":16906.875,"57_0":16906.875,"56_0":16906.875,"55_0":16906.875,"54_0":16906.875,"53_0":16906.875,"52_0":16906.875},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"32213.75","59_0":"33813.75","58_0":"33813.75","57_0":"33813.75","56_0":"33813.75","55_0":"33813.75","54_0":"33813.75","53_0":"33813.75","52_0":"33813.75"},"variant_supplier_codes":{"60_0":"221H05140900B2TS","59_0":"221H05140900B2TM2","58_0":"221H05140900B2TM3","57_0":"221H05140900B2TM1","56_0":"221H05140900B2TY0","55_0":"221H05140900B2TC1","54_0":"221H05140900B2TC2","53_0":"221H05140900B2TR2","52_0":"221H05140900B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x900 Anthracite ∆t50°C=932 Kcal/h | ∆t60°C= 1175 Kcal/h | 7 Pipes | Heats 6-18 m2

38,656.50 TL

19,328.25 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7899","59_0":"10644","58_0":"13389","57_0":"16134","56_0":"17394","55_0":"18654","54_0":"19914","53_0":"21249","52_0":"21585"},"variant_prices":{"60_0":16106.875,"59_0":16906.875,"58_0":16906.875,"57_0":16906.875,"56_0":16906.875,"55_0":16906.875,"54_0":16906.875,"53_0":16906.875,"52_0":16906.875},"variant_price_raws":{"60_0":16106.875,"59_0":16906.875,"58_0":16906.875,"57_0":16906.875,"56_0":16906.875,"55_0":16906.875,"54_0":16906.875,"53_0":16906.875,"52_0":16906.875},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"32213.75","59_0":"33813.75","58_0":"33813.75","57_0":"33813.75","56_0":"33813.75","55_0":"33813.75","54_0":"33813.75","53_0":"33813.75","52_0":"33813.75"},"variant_supplier_codes":{"60_0":"221H05140900B3MS","59_0":"221H05140900B3MM2","58_0":"221H05140900B3MM3","57_0":"221H05140900B3MM1","56_0":"221H05140900B3MY0","55_0":"221H05140900B3MC1","54_0":"221H05140900B3MC2","53_0":"221H05140900B3MR2","52_0":"221H05140900B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x900 Matte Black ∆t50°C=932 Kcal/h | ∆t60°C= 1175 Kcal/h | 7 Pipes | Heats 6-18 m2

38,656.50 TL

19,328.25 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"7900","59_0":"10645","58_0":"13390","57_0":"16135","56_0":"17395","55_0":"18655","54_0":"19915","53_0":"21250","52_0":"21586"},"variant_prices":{"60_0":16987,"59_0":17787,"58_0":17787,"57_0":17787,"56_0":17787,"55_0":17787,"54_0":17787,"53_0":17787,"52_0":17787},"variant_price_raws":{"60_0":16987,"59_0":17787,"58_0":17787,"57_0":17787,"56_0":17787,"55_0":17787,"54_0":17787,"53_0":17787,"52_0":17787},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"33974","59_0":"35574","58_0":"35574","57_0":"35574","56_0":"35574","55_0":"35574","54_0":"35574","53_0":"35574","52_0":"35574"},"variant_supplier_codes":{"60_0":"221H05140900K6FS","59_0":"221H05140900K6FM2","58_0":"221H05140900K6FM3","57_0":"221H05140900K6FM1","56_0":"221H05140900K6FY0","55_0":"221H05140900K6FC1","54_0":"221H05140900K6FC2","53_0":"221H05140900K6FR2","52_0":"221H05140900K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 21H Decorative Radiator 514x900 Wood Effect ∆t50°C=932 Kcal/h | ∆t60°C= 1175 Kcal/h | 7 Pipes | Heats 6-18 m2

40,768.80 TL

20,384.40 TL
