%50 Discount

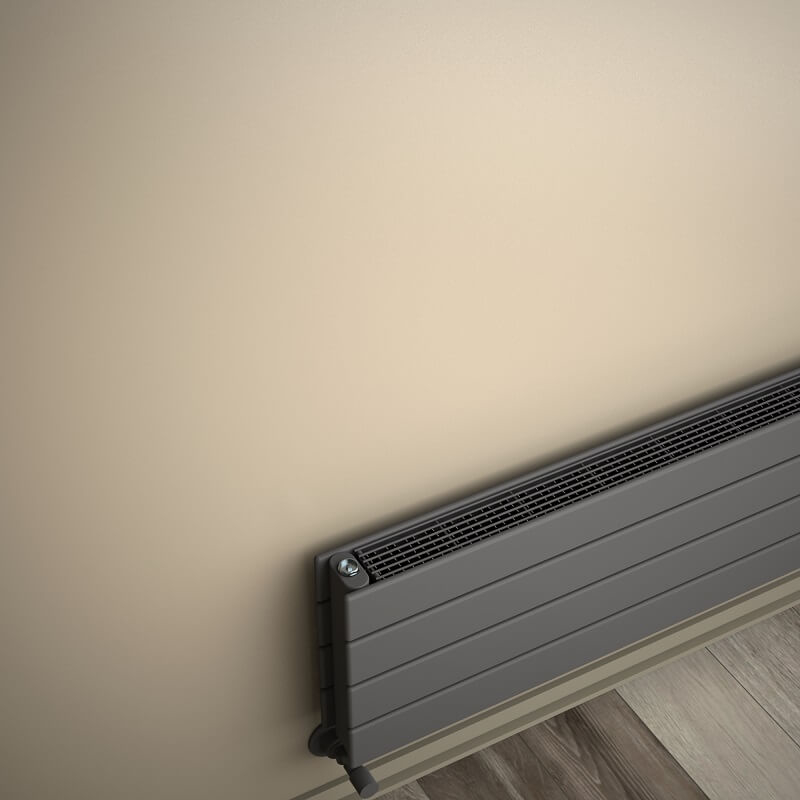

Type 21H Decorative Radiator 292x700 Anthracite

Name: Type 21H Decorative Radiator 292x700 Anthracite
SKU: 221H02920700B2TS
Price: 11731.50 TRY
Availability: InStock

Product Code : 221H02920700B2TS

Guarantee : 10 Year

TAXES Included

Price

23,463.00 TL

Discounted Price

11,731.50 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"7815","40_0":"16050","42_0":"10560","41_0":"13305","43_0":"17310","45_0":"18570","44_0":"19830","46_0":"20604","47_0":"20922"},"variant_prices":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"variant_price_raws":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"19552.5","40_0":"21152.5","42_0":"21152.5","41_0":"21152.5","43_0":"21152.5","45_0":"21152.5","44_0":"21152.5","46_0":"21152.5","47_0":"21152.5"},"variant_supplier_codes":{"39_0":"221H02920700B2TS","40_0":"221H02920700B2TM1","42_0":"221H02920700B2TM2","41_0":"221H02920700B2TM3","43_0":"221H02920700B2TY0","45_0":"221H02920700B2TC1","44_0":"221H02920700B2TC2","46_0":"221H02920700B2TR1","47_0":"221H02920700B2TL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Right 50mm

Bottom Left 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-25cm Entry Right

Side-25cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

12.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 21H

• Material =Steel

• Height=292 mm

• Width=700 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,8 lt

• Weight=11,9 kg

• Boxed Weight=12,82 kg

• Box Size=35x76x11,6 cm

TAPPING OPTIONS

• Standard Entry=650 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=790mm

• Cross Up-Right / Down-Left=790mm

• Cross Up-Left / Down-Right=790mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 482 Kcal/h

• Heat Output 90/70-20° ?t=60°C=608Kcal/h

• Heat Output 55/45-20° ?t=30°C=247Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=560 Watt

• Heat Output 90/70-20°?t=60°C=706 Watt

• Heat Output 55/45-20°?t=30°C=287 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1911 Btu

• Heat Output 90/70-20°?t=60°C=2408 Btu

• Heat Output 55/45-20°?t=30°C=979 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"7814","40_0":"16049","42_0":"10559","41_0":"13304","43_0":"17309","45_0":"18569","44_0":"19829","46_0":"20603","47_0":"20921"},"variant_prices":{"39_0":7821,"40_0":8621,"42_0":8621,"41_0":8621,"43_0":8621,"45_0":8621,"44_0":8621,"46_0":8621,"47_0":8621},"variant_price_raws":{"39_0":7821,"40_0":8621,"42_0":8621,"41_0":8621,"43_0":8621,"45_0":8621,"44_0":8621,"46_0":8621,"47_0":8621},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"15642","40_0":"17242","42_0":"17242","41_0":"17242","43_0":"17242","45_0":"17242","44_0":"17242","46_0":"17242","47_0":"17242"},"variant_supplier_codes":{"39_0":"221H02920700B1PS","40_0":"221H02920700B1PM1","42_0":"221H02920700B1PM2","41_0":"221H02920700B1PM3","43_0":"221H02920700B1PY0","45_0":"221H02920700B1PC1","44_0":"221H02920700B1PC2","46_0":"221H02920700B1PR1","47_0":"221H02920700B1PL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Type 21H Decorative Radiator 292x700 White ∆t50°C=482 Kcal/h | ∆t60°C= 608 Kcal/h | 4 Pipes | Heats 4-10 m2

18,770.40 TL

9,385.20 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"7815","40_0":"16050","42_0":"10560","41_0":"13305","43_0":"17310","45_0":"18570","44_0":"19830","46_0":"20604","47_0":"20922"},"variant_prices":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"variant_price_raws":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"19552.5","40_0":"21152.5","42_0":"21152.5","41_0":"21152.5","43_0":"21152.5","45_0":"21152.5","44_0":"21152.5","46_0":"21152.5","47_0":"21152.5"},"variant_supplier_codes":{"39_0":"221H02920700B2TS","40_0":"221H02920700B2TM1","42_0":"221H02920700B2TM2","41_0":"221H02920700B2TM3","43_0":"221H02920700B2TY0","45_0":"221H02920700B2TC1","44_0":"221H02920700B2TC2","46_0":"221H02920700B2TR1","47_0":"221H02920700B2TL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Type 21H Decorative Radiator 292x700 Anthracite ∆t50°C=482 Kcal/h | ∆t60°C= 608 Kcal/h | 4 Pipes | Heats 4-10 m2

23,463.00 TL

11,731.50 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"7816","40_0":"16051","42_0":"10561","41_0":"13306","43_0":"17311","45_0":"18571","44_0":"19831","46_0":"20605","47_0":"20923"},"variant_prices":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"variant_price_raws":{"39_0":9776.25,"40_0":10576.25,"42_0":10576.25,"41_0":10576.25,"43_0":10576.25,"45_0":10576.25,"44_0":10576.25,"46_0":10576.25,"47_0":10576.25},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"19552.5","40_0":"21152.5","42_0":"21152.5","41_0":"21152.5","43_0":"21152.5","45_0":"21152.5","44_0":"21152.5","46_0":"21152.5","47_0":"21152.5"},"variant_supplier_codes":{"39_0":"221H02920700B3MS","40_0":"221H02920700B3MM1","42_0":"221H02920700B3MM2","41_0":"221H02920700B3MM3","43_0":"221H02920700B3MY0","45_0":"221H02920700B3MC1","44_0":"221H02920700B3MC2","46_0":"221H02920700B3MR1","47_0":"221H02920700B3ML1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Type 21H Decorative Radiator 292x700 Matte Black ∆t50°C=482 Kcal/h | ∆t60°C= 608 Kcal/h | 4 Pipes | Heats 4-10 m2

23,463.00 TL

11,731.50 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"7817","40_0":"16052","42_0":"10562","41_0":"13307","43_0":"17312","45_0":"18572","44_0":"19832","46_0":"20606","47_0":"20924"},"variant_prices":{"39_0":10898.5,"40_0":11698.5,"42_0":11698.5,"41_0":11698.5,"43_0":11698.5,"45_0":11698.5,"44_0":11698.5,"46_0":11698.5,"47_0":11698.5},"variant_price_raws":{"39_0":10898.5,"40_0":11698.5,"42_0":11698.5,"41_0":11698.5,"43_0":11698.5,"45_0":11698.5,"44_0":11698.5,"46_0":11698.5,"47_0":11698.5},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"21797","40_0":"23397","42_0":"23397","41_0":"23397","43_0":"23397","45_0":"23397","44_0":"23397","46_0":"23397","47_0":"23397"},"variant_supplier_codes":{"39_0":"221H02920700K6FS","40_0":"221H02920700K6FM1","42_0":"221H02920700K6FM2","41_0":"221H02920700K6FM3","43_0":"221H02920700K6FY0","45_0":"221H02920700K6FC1","44_0":"221H02920700K6FC2","46_0":"221H02920700K6FR1","47_0":"221H02920700K6FL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Type 21H Decorative Radiator 292x700 Wood Effect ∆t50°C=482 Kcal/h | ∆t60°C= 608 Kcal/h | 4 Pipes | Heats 4-10 m2

26,156.40 TL

13,078.20 TL
