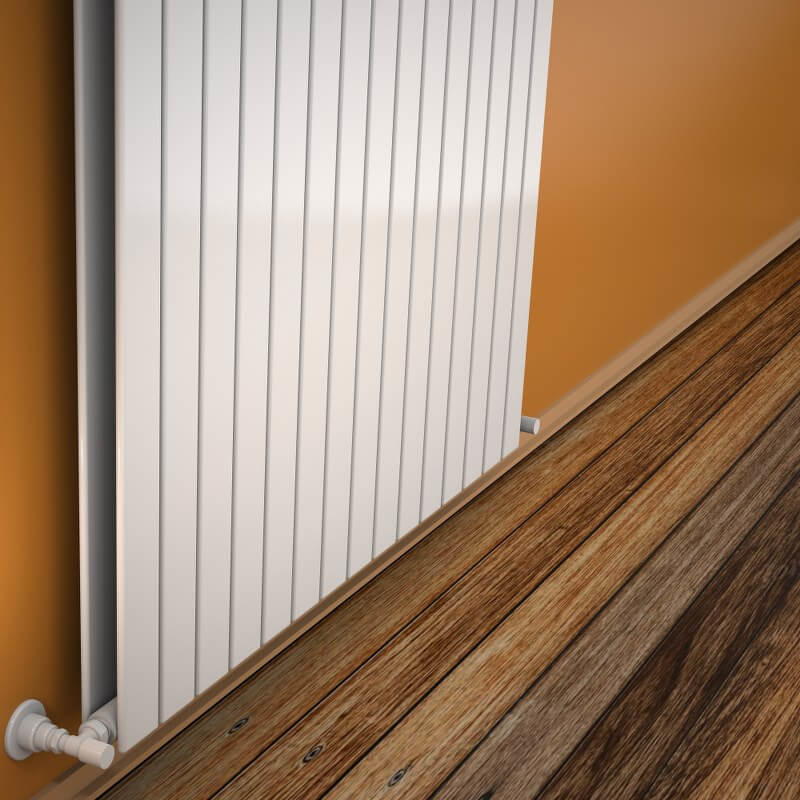

Type 20V Decorative Radiator 900x1106 White

Name: Type 20V Decorative Radiator 900x1106 White
SKU: 220V09001106B1PS
Price: 26239.20 TRY
Availability: InStock

Product Code : 220V09001106B1PS

Guarantee : 10 Year

TAXES Included

Price

65,598.00 TL

Discounted Price

26,239.20 TL

15 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

02.12.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1106 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=15 Pieces

• Total Number of Profiles (Front + Back)=15+15 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,5 lt

• Weight=45,2 kg

• Boxed Weight=48,49 kg

• Box Size=115x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1196 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1196 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1476 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1860Kcal/h

• Heat Output 55/45-20° ?t=30°C=756 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1716 Watt

• Heat Output 90/70-20°?t=60°C=2163 Watt

• Heat Output 55/45-20°?t=30°C=879 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5855 Btu

• Heat Output 90/70-20°?t=60°C=7378 Btu

• Heat Output 55/45-20°?t=30°C=2998 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
