%50 Discount

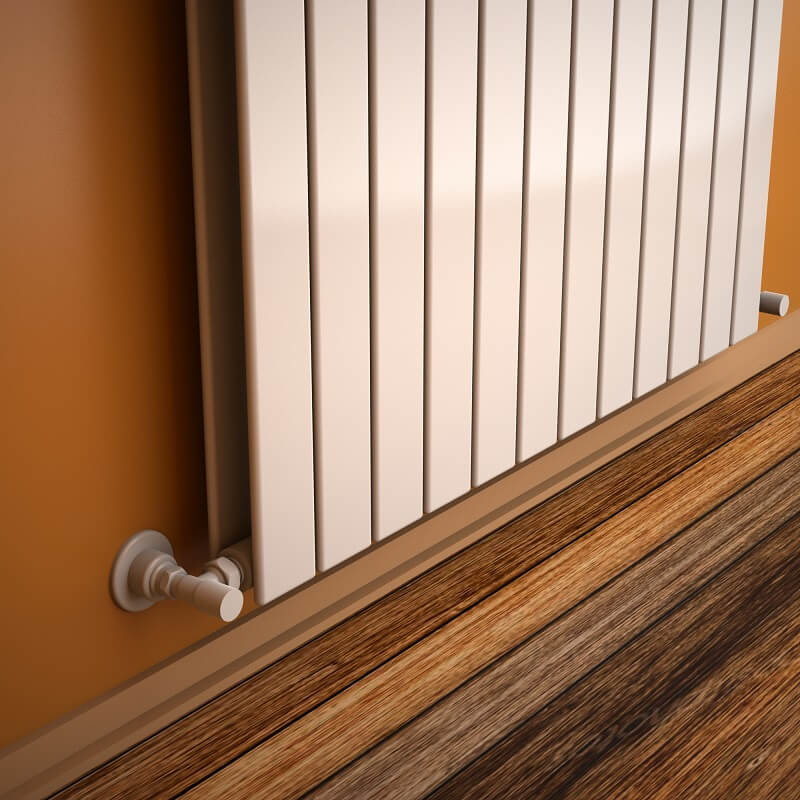

Type 20V Decorative Radiator 600x884 White

Name: Type 20V Decorative Radiator 600x884 White
SKU: 220V06000884B1PS
Price: 13684.80 TRY
Availability: InStock

Product Code : 220V06000884B1PS

Guarantee : 10 Year

TAXES Included

Price

27,369.60 TL

Discounted Price

13,684.80 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

28.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=600 mm

• Width=884 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,8 lt

• Weight=25 kg

• Boxed Weight=26,9 kg

• Box Size=93x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 815 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1027Kcal/h

• Heat Output 55/45-20° ?t=30°C=418 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=947 Watt

• Heat Output 90/70-20°?t=60°C=1194 Watt

• Heat Output 55/45-20°?t=30°C=485 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3232 Btu

• Heat Output 90/70-20°?t=60°C=4073 Btu

• Heat Output 55/45-20°?t=30°C=1655 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7353","36_0":"15588","34_0":"12843","35_0":"10098"},"variant_prices":{"37_0":11404,"36_0":12204,"34_0":12204,"35_0":12204},"variant_price_raws":{"37_0":11404,"36_0":12204,"34_0":12204,"35_0":12204},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"22808","36_0":"24408","34_0":"24408","35_0":"24408"},"variant_supplier_codes":{"37_0":"220V06000884B1PS","36_0":"220V06000884B1PM1","34_0":"220V06000884B1PM3","35_0":"220V06000884B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 600x884 White ∆t50°C=814 Kcal/h | ∆t60°C= 1026 Kcal/h | 12 Pipes | Heats 6-16 m2

27,369.60 TL

13,684.80 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7354","36_0":"15589","34_0":"12844","35_0":"10099"},"variant_prices":{"37_0":14255,"36_0":15055,"34_0":15055,"35_0":15055},"variant_price_raws":{"37_0":14255,"36_0":15055,"34_0":15055,"35_0":15055},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28510","36_0":"30110","34_0":"30110","35_0":"30110"},"variant_supplier_codes":{"37_0":"220V06000884B2TS","36_0":"220V06000884B2TM1","34_0":"220V06000884B2TM3","35_0":"220V06000884B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"99","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 600x884 Anthracite ∆t50°C=814 Kcal/h | ∆t60°C= 1026 Kcal/h | 12 Pipes | Heats 6-16 m2

34,212.00 TL

17,106.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7355","36_0":"15590","34_0":"12845","35_0":"10100"},"variant_prices":{"37_0":14255,"36_0":15055,"34_0":15055,"35_0":15055},"variant_price_raws":{"37_0":14255,"36_0":15055,"34_0":15055,"35_0":15055},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"28510","36_0":"30110","34_0":"30110","35_0":"30110"},"variant_supplier_codes":{"37_0":"220V06000884B3MS","36_0":"220V06000884B3MM1","34_0":"220V06000884B3MM3","35_0":"220V06000884B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 600x884 Matte Black ∆t50°C=814 Kcal/h | ∆t60°C= 1026 Kcal/h | 12 Pipes | Heats 6-16 m2

34,212.00 TL

17,106.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7356","36_0":"15591","34_0":"12846","35_0":"10101"},"variant_prices":{"37_0":15774.5,"36_0":16574.5,"34_0":16574.5,"35_0":16574.5},"variant_price_raws":{"37_0":15774.5,"36_0":16574.5,"34_0":16574.5,"35_0":16574.5},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"31549","36_0":"33149","34_0":"33149","35_0":"33149"},"variant_supplier_codes":{"37_0":"220V06000884K6FS","36_0":"220V06000884K6FM1","34_0":"220V06000884K6FM3","35_0":"220V06000884K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 600x884 Wood Effect ∆t50°C=814 Kcal/h | ∆t60°C= 1026 Kcal/h | 12 Pipes | Heats 6-16 m2

37,858.80 TL

18,929.40 TL
