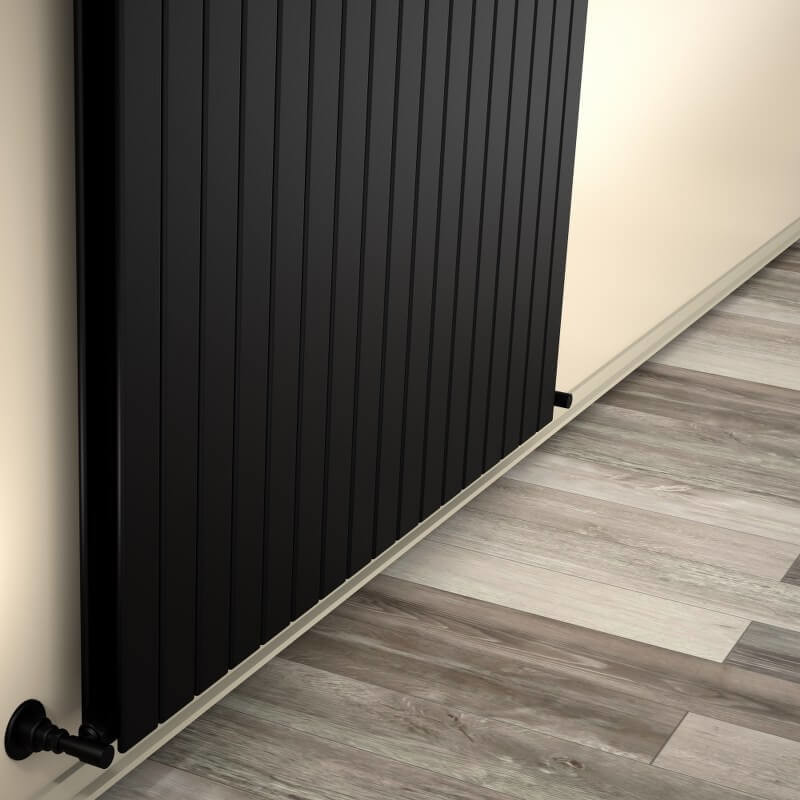

Type 20V Decorative Radiator 600x1254 Matte Black

Product Code : 220V06001254B3MS
Guarantee : 10 Year
TAXES Included
Price
:
46,098.00 TL
Discounted Price
:
23,049.00 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
31.08.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =600 mm

    • Width=1254 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=17 Pieces

    • Total Number of Profiles (Front + Back)=17+17 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=12,5 lt

    • Weight=35,3 kg

    • Boxed Weight    =37,86 kg

    • Box Size=130x65x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1344 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =1344 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1155 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1456Kcal/h

    • Heat Output 55/45-20° ?t=30°C=592 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1342 Watt

    • Heat Output 90/70-20°?t=60°C=1691 Watt

    • Heat Output 55/45-20°?t=30°C=688 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=4579 Btu

    • Heat Output 90/70-20°?t=60°C=5770 Btu

    • Heat Output 55/45-20°?t=30°C=2345 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

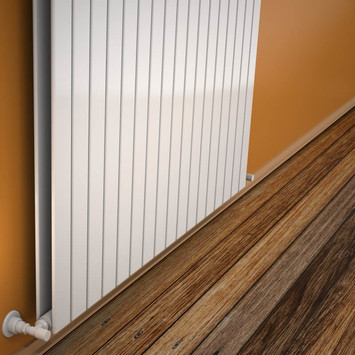

  • %50 Discount - Type 20V Decorative Radiator 600x1254 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 600x1254 White ∆t50°C=1154 Kcal/h | ∆t60°C= 1455 Kcal/h | 17 Pipes | Heats 8-23 m2
    36,878.40 TL
    18,439.20 TL

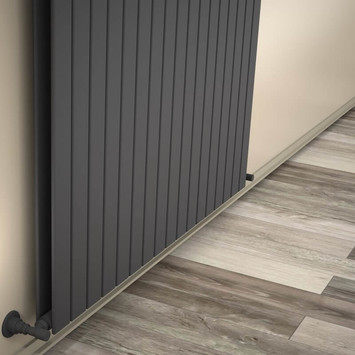

  • %50 Discount - Type 20V Decorative Radiator 600x1254 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 600x1254 Anthracite ∆t50°C=1154 Kcal/h | ∆t60°C= 1455 Kcal/h | 17 Pipes | Heats 8-23 m2
    46,098.00 TL
    23,049.00 TL
  • %50 Discount - Type 20V Decorative Radiator 600x1254 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 600x1254 Matte Black ∆t50°C=1154 Kcal/h | ∆t60°C= 1455 Kcal/h | 17 Pipes | Heats 8-23 m2
    46,098.00 TL
    23,049.00 TL
  • %50 Discount - Type 20V Decorative Radiator 600x1254 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 600x1254 Wood Effect ∆t50°C=1154 Kcal/h | ∆t60°C= 1455 Kcal/h | 17 Pipes | Heats 8-23 m2
    49,482.00 TL
    24,741.00 TL
