%50 Discount

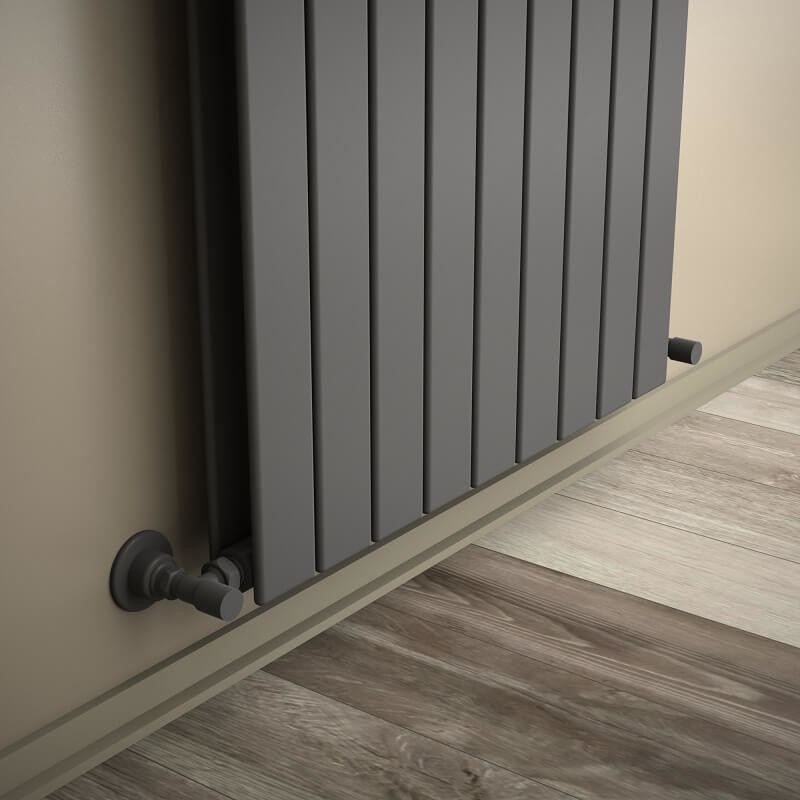

Type 20V Decorative Radiator 400x662 Anthracite

Name: Type 20V Decorative Radiator 400x662 Anthracite
SKU: 220V04000662B2TS
Price: 10387.50 TRY
Availability: InStock

Product Code : 220V04000662B2TS

Guarantee : 10 Year

TAXES Included

Price

20,775.00 TL

Discounted Price

10,387.50 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

12.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=662 mm

• Color/Coating=Anthracite

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+9 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4,8 lt

• Weight=13,1 kg

• Boxed Weight=14,2 kg

• Box Size=71x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 418 Kcal/h

• Heat Output 90/70-20° ?t=60°C=527Kcal/h

• Heat Output 55/45-20° ?t=30°C=215 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=485 Watt

• Heat Output 90/70-20°?t=60°C=612 Watt

• Heat Output 55/45-20°?t=30°C=249 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1655 Btu

• Heat Output 90/70-20°?t=60°C=2086 Btu

• Heat Output 55/45-20°?t=30°C=848 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
