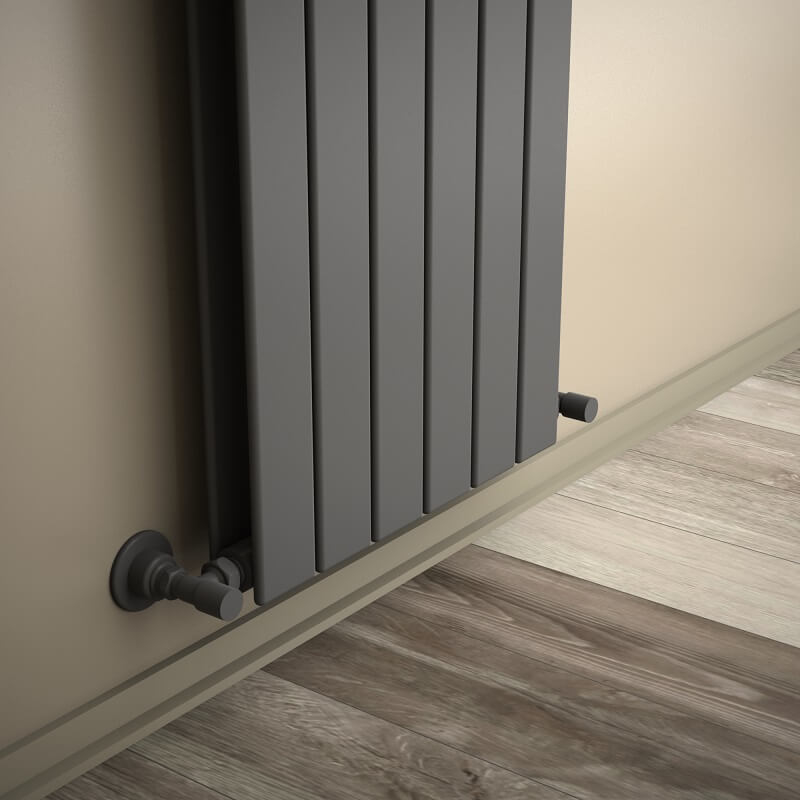

Type 20V Decorative Radiator 400x440 Anthracite

Name: Type 20V Decorative Radiator 400x440 Anthracite
SKU: 220V04000440B2TS
Price: 7855.50 TRY
Availability: InStock

Product Code : 220V04000440B2TS

Guarantee : 10 Year

TAXES Included

Price

15,711.00 TL

Discounted Price

7,855.50 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

10.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=440 mm

• Color/Coating=Anthracite

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+6 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,2 lt

• Weight=8,8 kg

• Boxed Weight=9,63 kg

• Box Size=48x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 279 Kcal/h

• Heat Output 90/70-20° ?t=60°C=352Kcal/h

• Heat Output 55/45-20° ?t=30°C=143 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=324 Watt

• Heat Output 90/70-20°?t=60°C=409 Watt

• Heat Output 55/45-20°?t=30°C=166 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1106 Btu

• Heat Output 90/70-20°?t=60°C=1394 Btu

• Heat Output 55/45-20°?t=30°C=567 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
