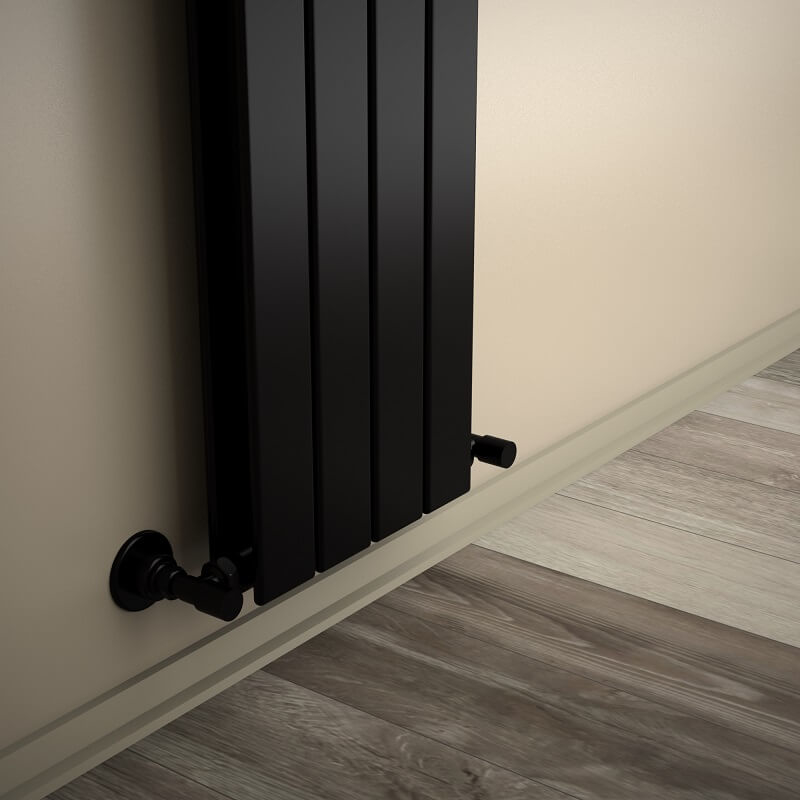

Type 20V Decorative Radiator 400x292 Matte Black

Name: Type 20V Decorative Radiator 400x292 Matte Black
SKU: 220V04000292B3MS
Price: 6201.75 TRY
Availability: InStock

Product Code : 220V04000292B3MS

Guarantee : 10 Year

TAXES Included

Price

12,403.50 TL

Discounted Price

6,201.75 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

16.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=292 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=2,1 lt

• Weight=5,9 kg

• Boxed Weight=6,56 kg

• Box Size=34x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =382 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =382 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 186 Kcal/h

• Heat Output 90/70-20° ?t=60°C=235Kcal/h

• Heat Output 55/45-20° ?t=30°C=96 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=216 Watt

• Heat Output 90/70-20°?t=60°C=273 Watt

• Heat Output 55/45-20°?t=30°C=111 Watt

Btu

• Heat Output 75/65-20°?t=50°C=737 Btu

• Heat Output 90/70-20°?t=60°C=929 Btu

• Heat Output 55/45-20°?t=30°C=378 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
