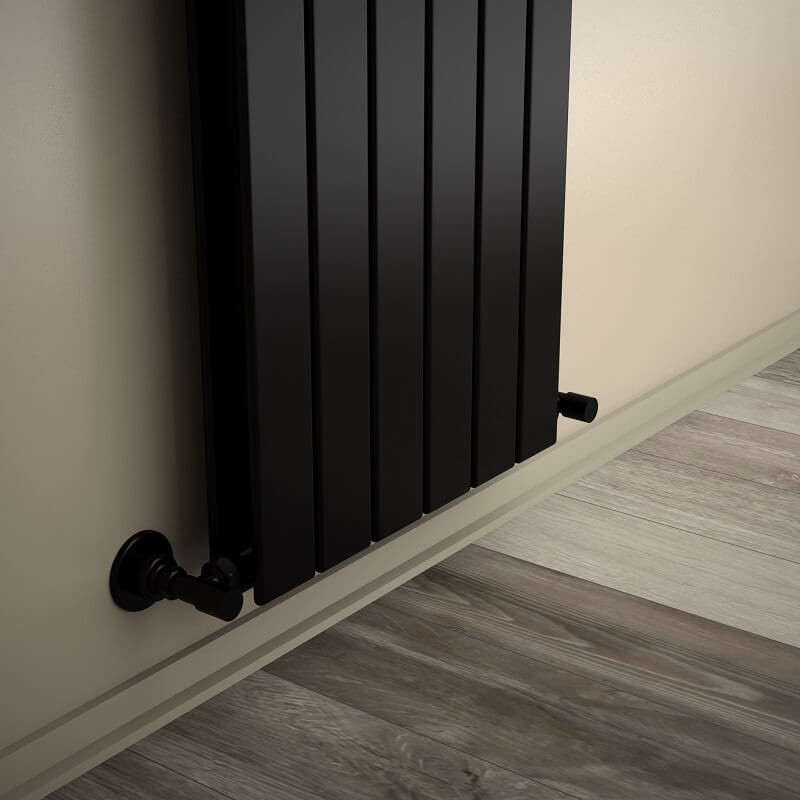

Type 20V Decorative Radiator 2200x440 Matte Black

Name: Type 20V Decorative Radiator 2200x440 Matte Black
SKU: 220V22000440B3MS
Price: 26976.75 TRY
Availability: InStock

Product Code : 220V22000440B3MS

Guarantee : 10 Year

TAXES Included

Price

53,953.50 TL

Discounted Price

26,976.75 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2200 mm

• Width=440 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+6 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,9 lt

• Weight=42,5 kg

• Boxed Weight=45,71 kg

• Box Size=48x225x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =2150 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1256 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1583Kcal/h

• Heat Output 55/45-20° ?t=30°C=644 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1460 Watt

• Heat Output 90/70-20°?t=60°C=1840 Watt

• Heat Output 55/45-20°?t=30°C=748 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4982 Btu

• Heat Output 90/70-20°?t=60°C=6278 Btu

• Heat Output 55/45-20°?t=30°C=2551 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
