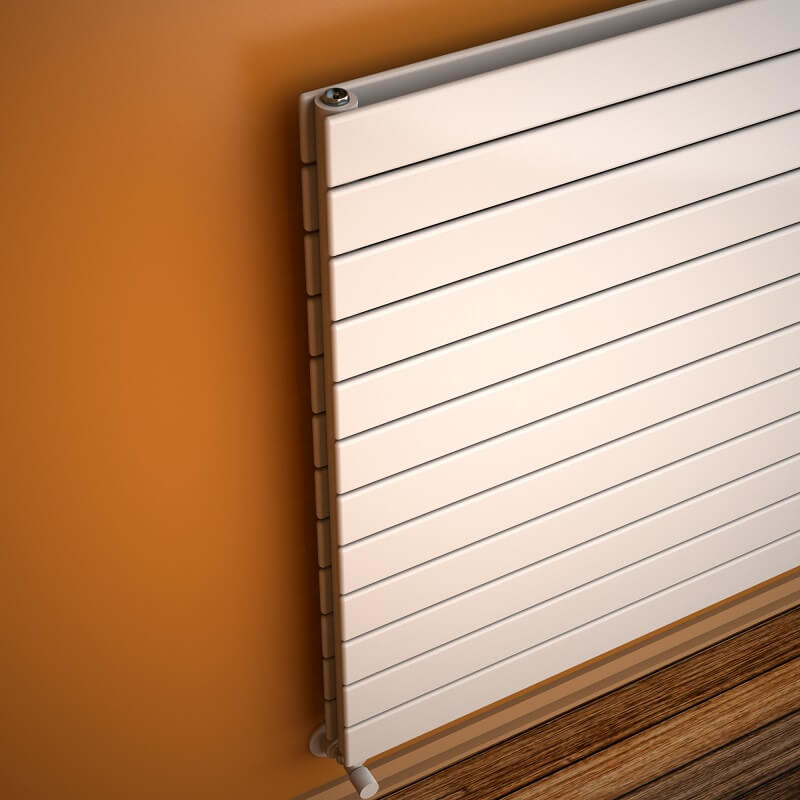

Type 20H Decorative Radiator 884x2500 White

Name: Type 20H Decorative Radiator 884x2500 White
SKU: 220H08842500B1PS
Price: 52620.48 TRY
Availability: InStock

Product Code : 220H08842500B1PS

Guarantee : 10 Year

TAXES Included

Price

131,551.20 TL

Discounted Price

52,620.48 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"6317","76_0":"14552","75_0":"11807","74_0":"9062","73_0":"17297","72_0":"18557","71_0":"19817","70_0":"22439","78_0":"22775"},"variant_prices":{"77_0":"43850.4","76_0":"43850.4","75_0":"43850.4","74_0":"43850.4","73_0":"43850.4","72_0":"43850.4","71_0":"43850.4","70_0":"43850.4","78_0":"43850.4"},"variant_price_raws":{"77_0":43850.4,"76_0":43850.4,"75_0":43850.4,"74_0":43850.4,"73_0":43850.4,"72_0":43850.4,"71_0":43850.4,"70_0":43850.4,"78_0":43850.4},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":109626,"76_0":109626,"75_0":109626,"74_0":109626,"73_0":109626,"72_0":109626,"71_0":109626,"70_0":109626,"78_0":109626},"variant_supplier_codes":{"77_0":"220H08842500B1PS","76_0":"220H08842500B1PM1","75_0":"220H08842500B1PM3","74_0":"220H08842500B1PM2","73_0":"220H08842500B1PY0","72_0":"220H08842500B1PC1","71_0":"220H08842500B1PC2","70_0":"220H08842500B1PR5","78_0":"220H08842500B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=884 mm

• Width=2500 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=31,5 lt

• Weight=96,1 kg

• Boxed Weight=103,03 kg

• Box Size=94x256x9,6 cm

TAPPING OPTIONS

• Standard Entry=2450 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2590mm

• Cross Up-Right / Down-Left=2590mm

• Cross Up-Left / Down-Right=2590mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2994 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3773Kcal/h

• Heat Output 55/45-20° ?t=30°C=1533Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=3481 Watt

• Heat Output 90/70-20°?t=60°C=4387 Watt

• Heat Output 55/45-20°?t=30°C=1783 Watt

Btu

• Heat Output 75/65-20°?t=50°C=11878 Btu

• Heat Output 90/70-20°?t=60°C=14967 Btu

• Heat Output 55/45-20°?t=30°C=6082 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
