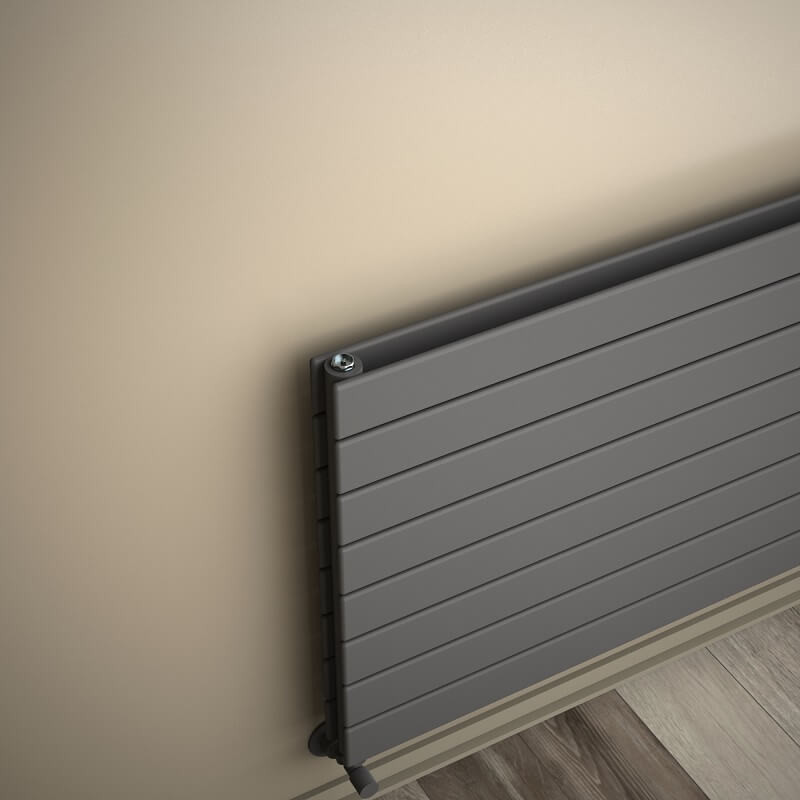

Type 20H Decorative Radiator 588x2000 Anthracite

Name: Type 20H Decorative Radiator 588x2000 Anthracite
SKU: 220H05882000B2TS
Price: 32145.00 TRY
Availability: InStock

Product Code : 220H05882000B2TS

Guarantee : 10 Year

TAXES Included

Price

64,290.00 TL

Discounted Price

32,145.00 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6046","68_0":"14281","67_0":"11536","66_0":"8791","65_0":"17026","64_0":"18286","63_0":"19546","62_0":"22132","61_0":"21862"},"variant_prices":{"69_0":26787.5,"68_0":27587.5,"67_0":27587.5,"66_0":27587.5,"65_0":27587.5,"64_0":27587.5,"63_0":27587.5,"62_0":27587.5,"61_0":27587.5},"variant_price_raws":{"69_0":26787.5,"68_0":27587.5,"67_0":27587.5,"66_0":27587.5,"65_0":27587.5,"64_0":27587.5,"63_0":27587.5,"62_0":27587.5,"61_0":27587.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"53575","68_0":"55175","67_0":"55175","66_0":"55175","65_0":"55175","64_0":"55175","63_0":"55175","62_0":"55175","61_0":"55175"},"variant_supplier_codes":{"69_0":"220H05882000B2TS","68_0":"220H05882000B2TM1","67_0":"220H05882000B2TM3","66_0":"220H05882000B2TM2","65_0":"220H05882000B2TY0","64_0":"220H05882000B2TC1","63_0":"220H05882000B2TC2","62_0":"220H05882000B2TL4","61_0":"220H05882000B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"99","64_0":"100","63_0":"100","62_0":"99","61_0":"98"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

02.09.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=588 mm

• Width=2000 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17 lt

• Weight=51,6 kg

• Boxed Weight=55,43 kg

• Box Size=64x206x9,6 cm

TAPPING OPTIONS

• Standard Entry=1950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2090mm

• Cross Up-Right / Down-Left=2090mm

• Cross Up-Left / Down-Right=2090mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1734 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2185Kcal/h

• Heat Output 55/45-20° ?t=30°C=888Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2016 Watt

• Heat Output 90/70-20°?t=60°C=2541 Watt

• Heat Output 55/45-20°?t=30°C=1033 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6879 Btu

• Heat Output 90/70-20°?t=60°C=8668 Btu

• Heat Output 55/45-20°?t=30°C=3523 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
