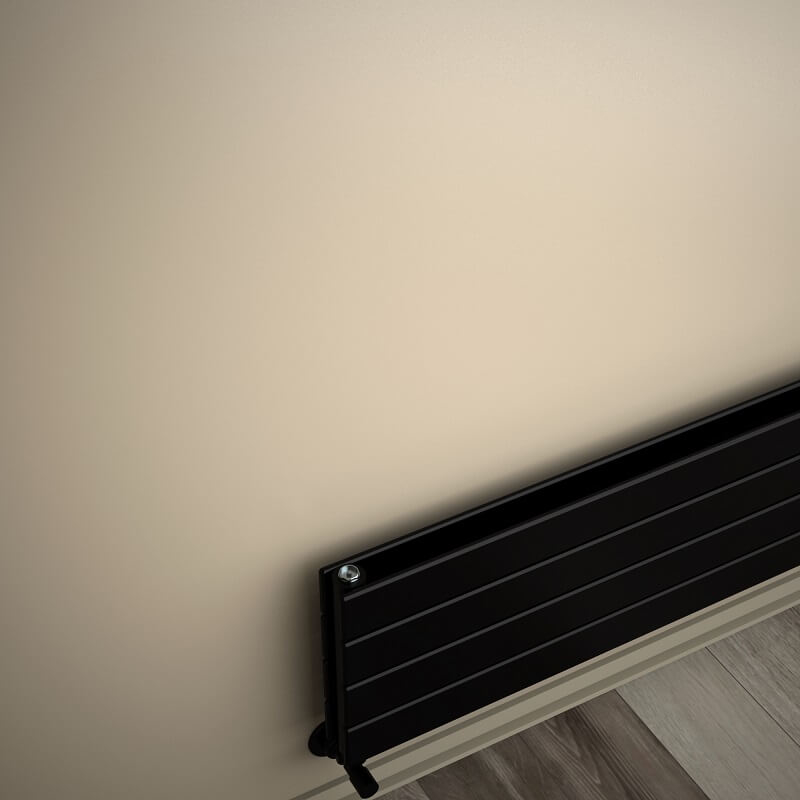

Type 20H Decorative Radiator 292x600 Matte Black

Name: Type 20H Decorative Radiator 292x600 Matte Black
SKU: 220H02920600B3MS
Price: 7596.75 TRY
Availability: InStock

Product Code : 220H02920600B3MS

Guarantee : 10 Year

TAXES Included

Price

15,193.50 TL

Discounted Price

7,596.75 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"6076","40_0":"14311","42_0":"8821","41_0":"11566","43_0":"17056","45_0":"18316","44_0":"19576","46_0":"20518","47_0":"20836"},"variant_prices":{"39_0":6330.625,"40_0":7130.625,"42_0":7130.625,"41_0":7130.625,"43_0":7130.625,"45_0":7130.625,"44_0":7130.625,"46_0":7130.625,"47_0":7130.625},"variant_price_raws":{"39_0":6330.625,"40_0":7130.625,"42_0":7130.625,"41_0":7130.625,"43_0":7130.625,"45_0":7130.625,"44_0":7130.625,"46_0":7130.625,"47_0":7130.625},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"12661.25","40_0":"14261.25","42_0":"14261.25","41_0":"14261.25","43_0":"14261.25","45_0":"14261.25","44_0":"14261.25","46_0":"14261.25","47_0":"14261.25"},"variant_supplier_codes":{"39_0":"220H02920600B3MS","40_0":"220H02920600B3MM1","42_0":"220H02920600B3MM2","41_0":"220H02920600B3MM3","43_0":"220H02920600B3MY0","45_0":"220H02920600B3MC1","44_0":"220H02920600B3MC2","46_0":"220H02920600B3MR1","47_0":"220H02920600B3ML1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"99","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Right 50mm

Bottom Left 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-25cm Entry Right

Side-25cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

11.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=292 mm

• Width=600 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=2,9 lt

• Weight=8,4 kg

• Boxed Weight=9,23 kg

• Box Size=35x66x9,6 cm

TAPPING OPTIONS

• Standard Entry=550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=690mm

• Cross Up-Right / Down-Left=690mm

• Cross Up-Left / Down-Right=690mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 302 Kcal/h

• Heat Output 90/70-20° ?t=60°C=381Kcal/h

• Heat Output 55/45-20° ?t=30°C=155Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=351 Watt

• Heat Output 90/70-20°?t=60°C=443 Watt

• Heat Output 55/45-20°?t=30°C=180 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1198 Btu

• Heat Output 90/70-20°?t=60°C=1510 Btu

• Heat Output 55/45-20°?t=30°C=614 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

panel radyatör , radyatör petek , radyatör , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"6073","40_0":"14308","42_0":"8818","41_0":"11563","43_0":"17053","45_0":"18313","44_0":"19573","46_0":"20515","47_0":"20833"},"variant_prices":{"39_0":5064.5,"40_0":5864.5,"42_0":5864.5,"41_0":5864.5,"43_0":5864.5,"45_0":5864.5,"44_0":5864.5,"46_0":5864.5,"47_0":5864.5},"variant_price_raws":{"39_0":5064.5,"40_0":5864.5,"42_0":5864.5,"41_0":5864.5,"43_0":5864.5,"45_0":5864.5,"44_0":5864.5,"46_0":5864.5,"47_0":5864.5},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"10129","40_0":"11729","42_0":"11729","41_0":"11729","43_0":"11729","45_0":"11729","44_0":"11729","46_0":"11729","47_0":"11729"},"variant_supplier_codes":{"39_0":"220H02920600B1PS","40_0":"220H02920600B1PM1","42_0":"220H02920600B1PM2","41_0":"220H02920600B1PM3","43_0":"220H02920600B1PY0","45_0":"220H02920600B1PC1","44_0":"220H02920600B1PC2","46_0":"220H02920600B1PR1","47_0":"220H02920600B1PL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"98","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Type 20H Decorative Radiator 292x600 White ∆t50°C=302 Kcal/h | ∆t60°C= 381 Kcal/h | 4 Pipes | Heats 2-6 m2

12,154.80 TL

6,077.40 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"6074","40_0":"14309","42_0":"8819","41_0":"11564","43_0":"17054","45_0":"18314","44_0":"19574","46_0":"20516","47_0":"20834"},"variant_prices":{"39_0":6330.625,"40_0":7130.625,"42_0":7130.625,"41_0":7130.625,"43_0":7130.625,"45_0":7130.625,"44_0":7130.625,"46_0":7130.625,"47_0":7130.625},"variant_price_raws":{"39_0":6330.625,"40_0":7130.625,"42_0":7130.625,"41_0":7130.625,"43_0":7130.625,"45_0":7130.625,"44_0":7130.625,"46_0":7130.625,"47_0":7130.625},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"12661.25","40_0":"14261.25","42_0":"14261.25","41_0":"14261.25","43_0":"14261.25","45_0":"14261.25","44_0":"14261.25","46_0":"14261.25","47_0":"14261.25"},"variant_supplier_codes":{"39_0":"220H02920600B2TS","40_0":"220H02920600B2TM1","42_0":"220H02920600B2TM2","41_0":"220H02920600B2TM3","43_0":"220H02920600B2TY0","45_0":"220H02920600B2TC1","44_0":"220H02920600B2TC2","46_0":"220H02920600B2TR1","47_0":"220H02920600B2TL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

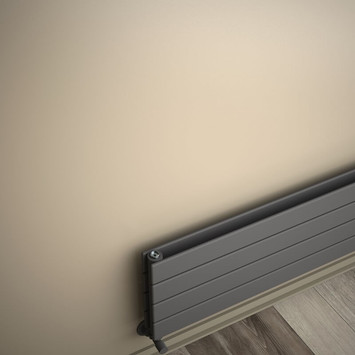

Type 20H Decorative Radiator 292x600 Anthracite ∆t50°C=302 Kcal/h | ∆t60°C= 381 Kcal/h | 4 Pipes | Heats 2-6 m2
