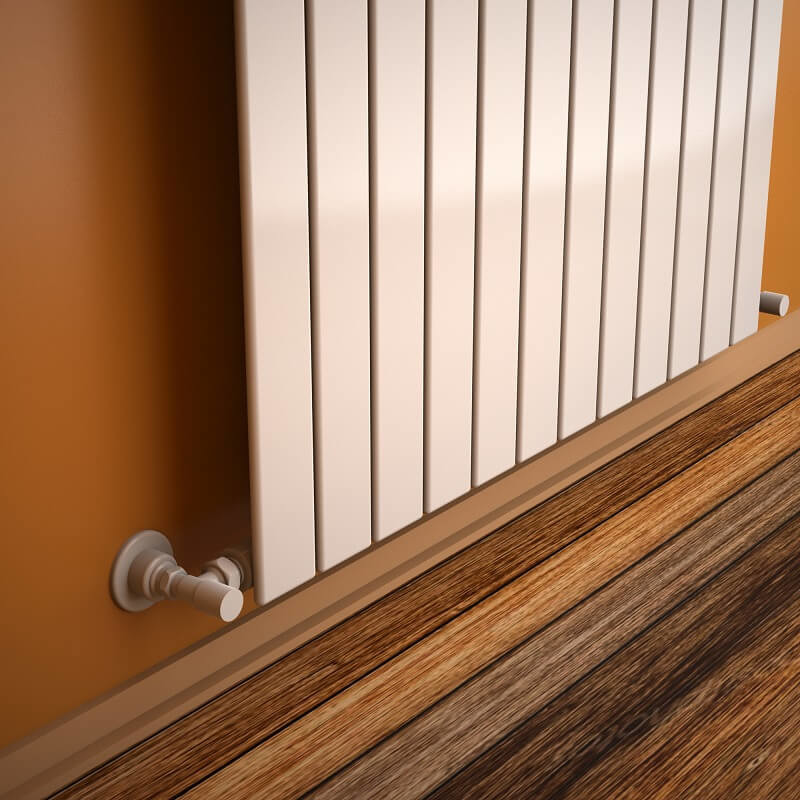

Type 10V Decorative Radiator 900x884 White

Name: Type 10V Decorative Radiator 900x884 White
SKU: 210V09000884B1PS
Price: 12858.00 TRY
Availability: InStock

Product Code : 210V09000884B1PS

Guarantee : 10 Year

TAXES Included

Price

25,716.00 TL

Discounted Price

12,858.00 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

15.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=900 mm

• Width=884 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,9 lt

• Weight=19,3 kg

• Boxed Weight=21,99 kg

• Box Size=93x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 827 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1043Kcal/h

• Heat Output 55/45-20° ?t=30°C=424 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=961 Watt

• Heat Output 90/70-20°?t=60°C=1211 Watt

• Heat Output 55/45-20°?t=30°C=493 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3279 Btu

• Heat Output 90/70-20°?t=60°C=4132 Btu

• Heat Output 55/45-20°?t=30°C=1679 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
