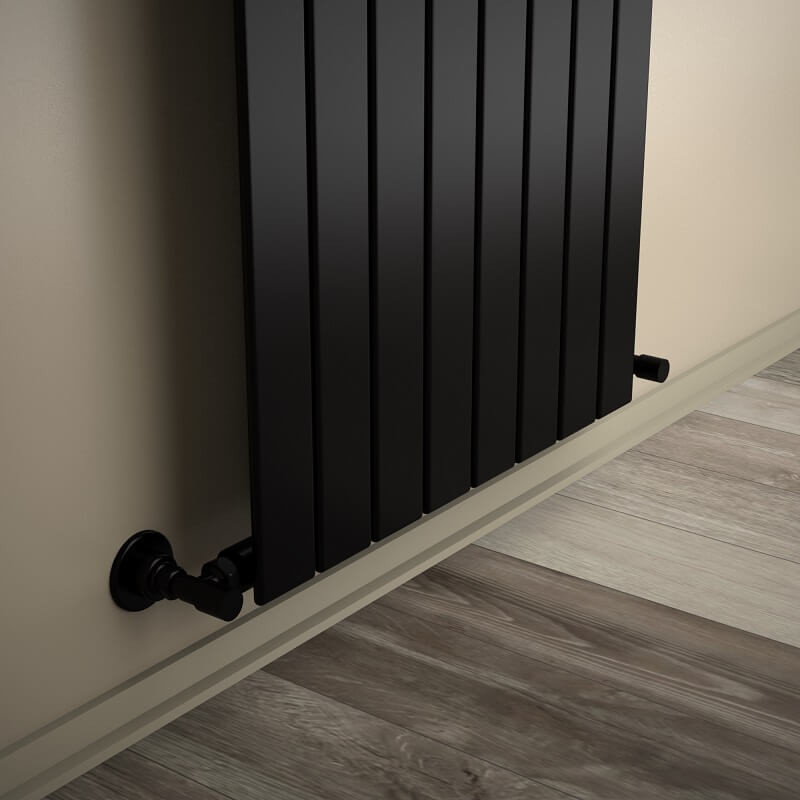

Type 10V Decorative Radiator 900x588 Matte Black

Product Code : 210V09000588B3MS
Guarantee : 10 Year
TAXES Included
Price
:
26,878.80 TL
Discounted Price
:
10,751.52 TL
<p>15 Year Warranty</p>
15 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
28.11.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =900 mm

    • Width=588 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=8 Pieces

    • Total Number of Profiles (Front + Back)=8+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=4,6 lt

    • Weight=12,9 kg

    • Boxed Weight    =14,79 kg

    • Box Size=63x95x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =678 mm

    • Standard Entry2 =850 mm

    • Standard Entry Cross =678 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 551 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=695Kcal/h

    • Heat Output 55/45-20° ?t=30°C=283 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=640 Watt

    • Heat Output 90/70-20°?t=60°C=807 Watt

    • Heat Output 55/45-20°?t=30°C=328 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=2184 Btu

    • Heat Output 90/70-20°?t=60°C=2752 Btu

    • Heat Output 55/45-20°?t=30°C=1119 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors
  • %60 Discount - Type 10V Decorative Radiator 900x588 White
    AKS Seçenekleri

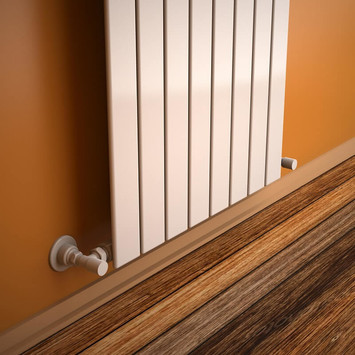

    Type 10V Decorative Radiator 900x588 White ∆t50°C=550 Kcal/h | ∆t60°C= 693 Kcal/h | 8 Pipes | Heats 4-11 m2
    26,878.80 TL
    10,751.52 TL
  • %60 Discount - Type 10V Decorative Radiator 900x588 Anthracite
    AKS Seçenekleri

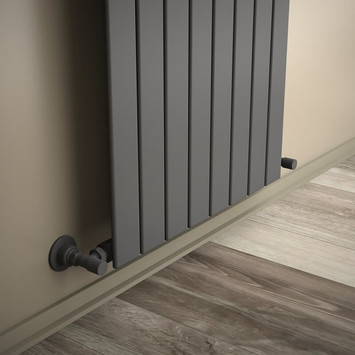

    Type 10V Decorative Radiator 900x588 Anthracite ∆t50°C=550 Kcal/h | ∆t60°C= 693 Kcal/h | 8 Pipes | Heats 4-11 m2
    26,878.80 TL
    10,751.52 TL
  • %60 Discount - Type 10V Decorative Radiator 900x588 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 900x588 Matte Black ∆t50°C=550 Kcal/h | ∆t60°C= 693 Kcal/h | 8 Pipes | Heats 4-11 m2
    26,878.80 TL
    10,751.52 TL
Accessories
