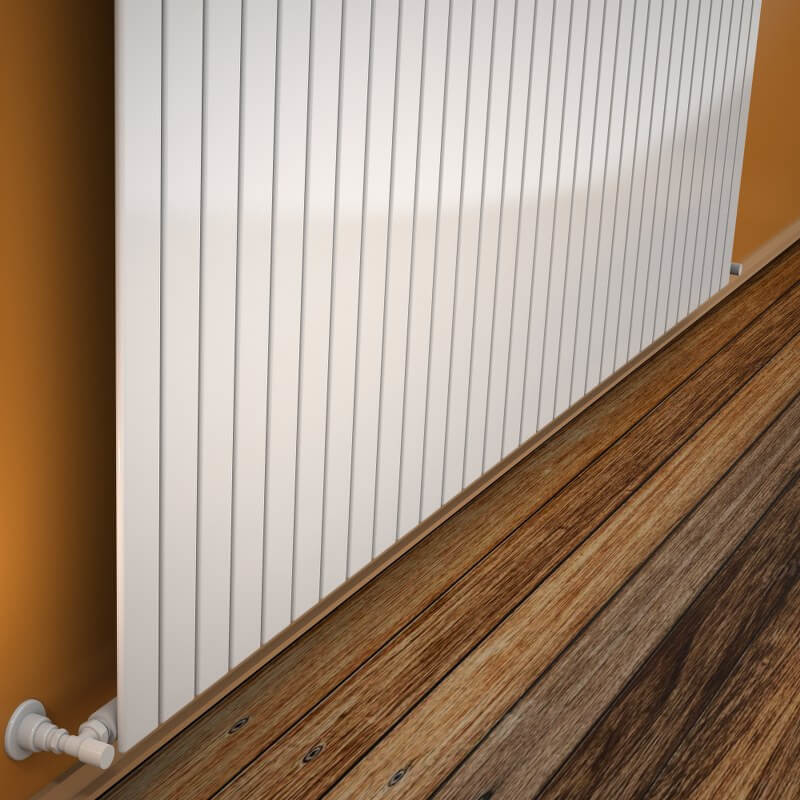

Type 10V Decorative Radiator 900x2290 White

Name: Type 10V Decorative Radiator 900x2290 White
SKU: 210V09002290B1PS
Price: 29354.40 TRY
Availability: InStock

Product Code : 210V09002290B1PS

Guarantee : 10 Year

TAXES Included

Price

58,708.80 TL

Discounted Price

29,354.40 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

18.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=900 mm

• Width=2290 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=31 Pieces

• Total Number of Profiles (Front + Back)=31+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,8 lt

• Weight=49,8 kg

• Boxed Weight=56,29 kg

• Box Size=233x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2380 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =2380 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2135 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2691Kcal/h

• Heat Output 55/45-20° ?t=30°C=1094 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2482 Watt

• Heat Output 90/70-20°?t=60°C=3128 Watt

• Heat Output 55/45-20°?t=30°C=1271 Watt

Btu

• Heat Output 75/65-20°?t=50°C=8469 Btu

• Heat Output 90/70-20°?t=60°C=10671 Btu

• Heat Output 55/45-20°?t=30°C=4337 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
