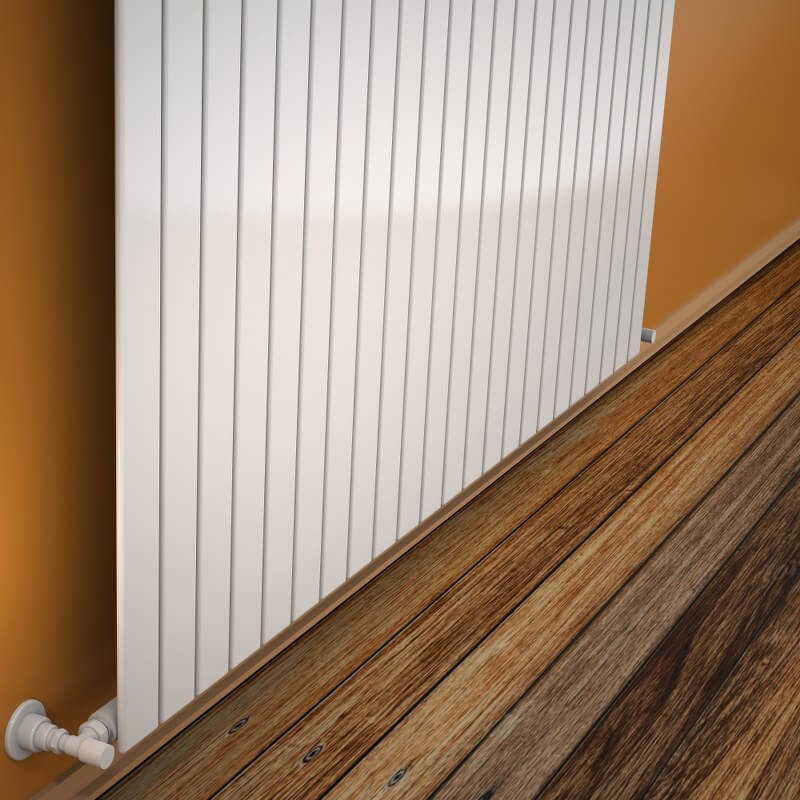

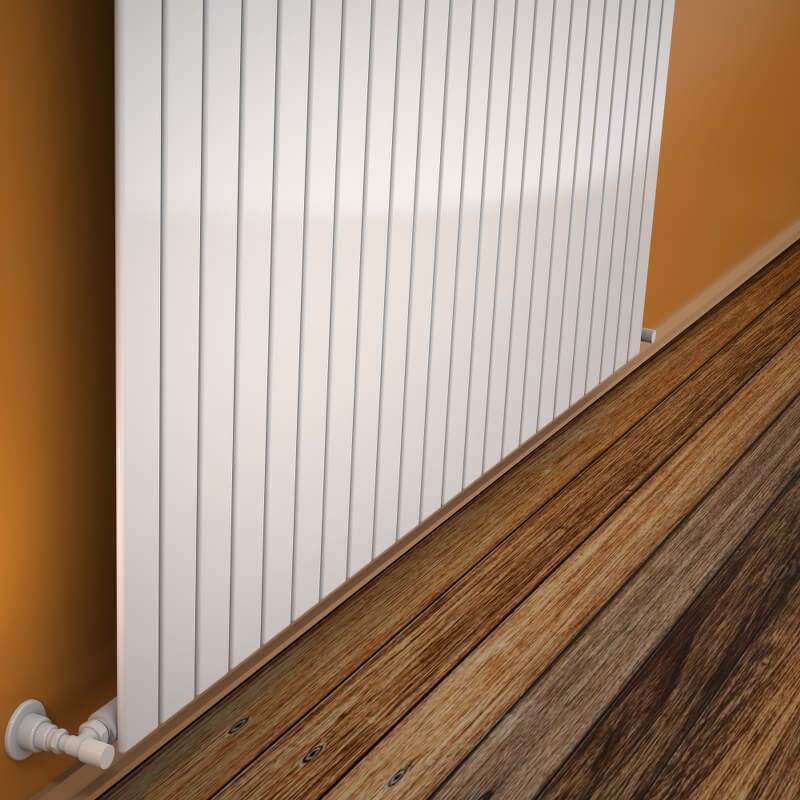

Type 10V Decorative Radiator 900x1698 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=1698 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=23 Pieces

• Total Number of Profiles (Front + Back)=23+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,2 lt

• Weight=37 kg

• Boxed Weight=41,89 kg

• Box Size=174x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1788 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1788 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1584 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1996Kcal/h

• Heat Output 55/45-20° ?t=30°C=812 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1841 Watt

• Heat Output 90/70-20°?t=60°C=2320 Watt

• Heat Output 55/45-20°?t=30°C=943 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6282 Btu

• Heat Output 90/70-20°?t=60°C=7916 Btu

• Heat Output 55/45-20°?t=30°C=3217 Btu
