%50 Discount

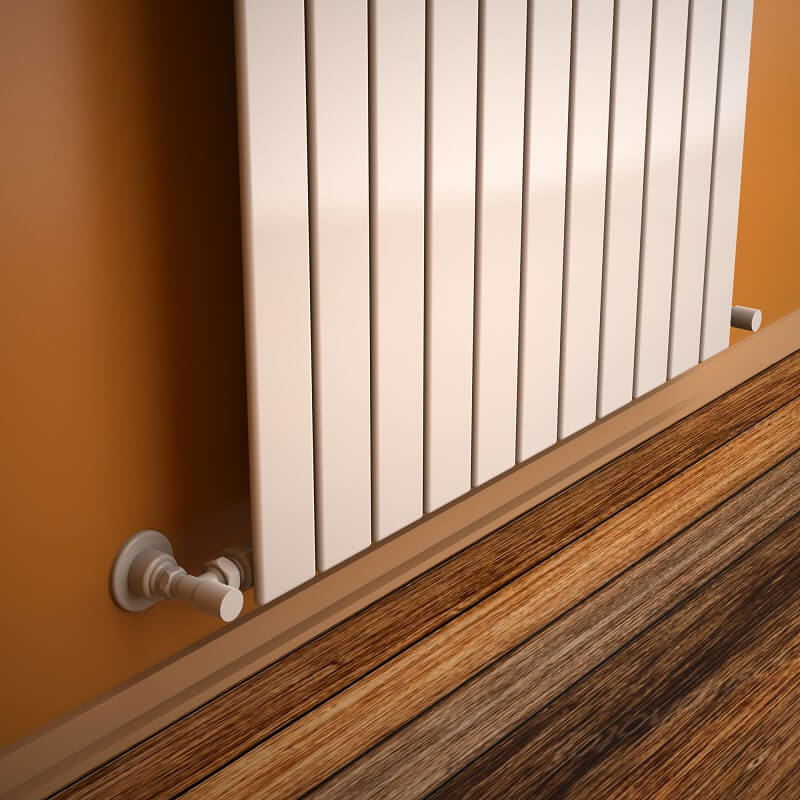

Type 10V Decorative Radiator 500x810 White

Name: Type 10V Decorative Radiator 500x810 White
SKU: 210V05000810B1PS
Price: 8227.20 TRY
Availability: InStock

Product Code : 210V05000810B1PS

Guarantee : 10 Year

TAXES Included

Price

16,454.40 TL

Discounted Price

8,227.20 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

10.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=500 mm

• Width=810 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4,1 lt

• Weight=10,9 kg

• Boxed Weight=12,42 kg

• Box Size=85x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 442 Kcal/h

• Heat Output 90/70-20° ?t=60°C=557Kcal/h

• Heat Output 55/45-20° ?t=30°C=227 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=513 Watt

• Heat Output 90/70-20°?t=60°C=647 Watt

• Heat Output 55/45-20°?t=30°C=263 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1751 Btu

• Heat Output 90/70-20°?t=60°C=2207 Btu

• Heat Output 55/45-20°?t=30°C=897 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6481","36_0":"14716","34_0":"11971","35_0":"9226"},"variant_prices":{"37_0":6856,"36_0":7656,"34_0":7656,"35_0":7656},"variant_price_raws":{"37_0":6856,"36_0":7656,"34_0":7656,"35_0":7656},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"13712","36_0":"15312","34_0":"15312","35_0":"15312"},"variant_supplier_codes":{"37_0":"210V05000810B1PS","36_0":"210V05000810B1PM1","34_0":"210V05000810B1PM3","35_0":"210V05000810B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x810 White ∆t50°C=441 Kcal/h | ∆t60°C= 556 Kcal/h | 11 Pipes | Heats 3-9 m2

16,454.40 TL

8,227.20 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6482","36_0":"14717","34_0":"11972","35_0":"9227"},"variant_prices":{"37_0":8570,"36_0":9370,"34_0":9370,"35_0":9370},"variant_price_raws":{"37_0":8570,"36_0":9370,"34_0":9370,"35_0":9370},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"17140","36_0":"18740","34_0":"18740","35_0":"18740"},"variant_supplier_codes":{"37_0":"210V05000810B2TS","36_0":"210V05000810B2TM1","34_0":"210V05000810B2TM3","35_0":"210V05000810B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x810 Anthracite ∆t50°C=441 Kcal/h | ∆t60°C= 556 Kcal/h | 11 Pipes | Heats 3-9 m2

20,568.00 TL

10,284.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6483","36_0":"14718","34_0":"11973","35_0":"9228"},"variant_prices":{"37_0":8570,"36_0":9370,"34_0":9370,"35_0":9370},"variant_price_raws":{"37_0":8570,"36_0":9370,"34_0":9370,"35_0":9370},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"17140","36_0":"18740","34_0":"18740","35_0":"18740"},"variant_supplier_codes":{"37_0":"210V05000810B3MS","36_0":"210V05000810B3MM1","34_0":"210V05000810B3MM3","35_0":"210V05000810B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x810 Matte Black ∆t50°C=441 Kcal/h | ∆t60°C= 556 Kcal/h | 11 Pipes | Heats 3-9 m2

20,568.00 TL

10,284.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"6484","36_0":"14719","34_0":"11974","35_0":"9229"},"variant_prices":{"37_0":10729.5,"36_0":11529.5,"34_0":11529.5,"35_0":11529.5},"variant_price_raws":{"37_0":10729.5,"36_0":11529.5,"34_0":11529.5,"35_0":11529.5},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"21459","36_0":"23059","34_0":"23059","35_0":"23059"},"variant_supplier_codes":{"37_0":"210V05000810K6FS","36_0":"210V05000810K6FM1","34_0":"210V05000810K6FM3","35_0":"210V05000810K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 10V Decorative Radiator 500x810 Wood Effect ∆t50°C=441 Kcal/h | ∆t60°C= 556 Kcal/h | 11 Pipes | Heats 3-9 m2

25,750.80 TL

12,875.40 TL
