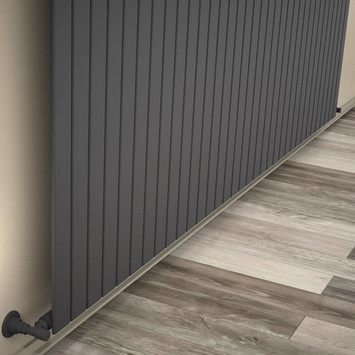

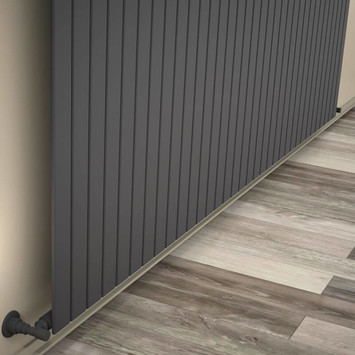

Type 10V Decorative Radiator 500x2512 Anthracite

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=500 mm

• Width=2512 mm

• Color/Coating=Anthracite

• Number of Sections=34 Pieces

• Total Number of Profiles (Front + Back)=34+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,8 lt

• Weight=33,4 kg

• Boxed Weight=37,47 kg

• Box Size=256x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2602 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =2602 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1363 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1718Kcal/h

• Heat Output 55/45-20° ?t=30°C=698 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1584 Watt

• Heat Output 90/70-20°?t=60°C=1996 Watt

• Heat Output 55/45-20°?t=30°C=812 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5405 Btu

• Heat Output 90/70-20°?t=60°C=6811 Btu

• Heat Output 55/45-20°?t=30°C=2768 Btu
