%50 Discount

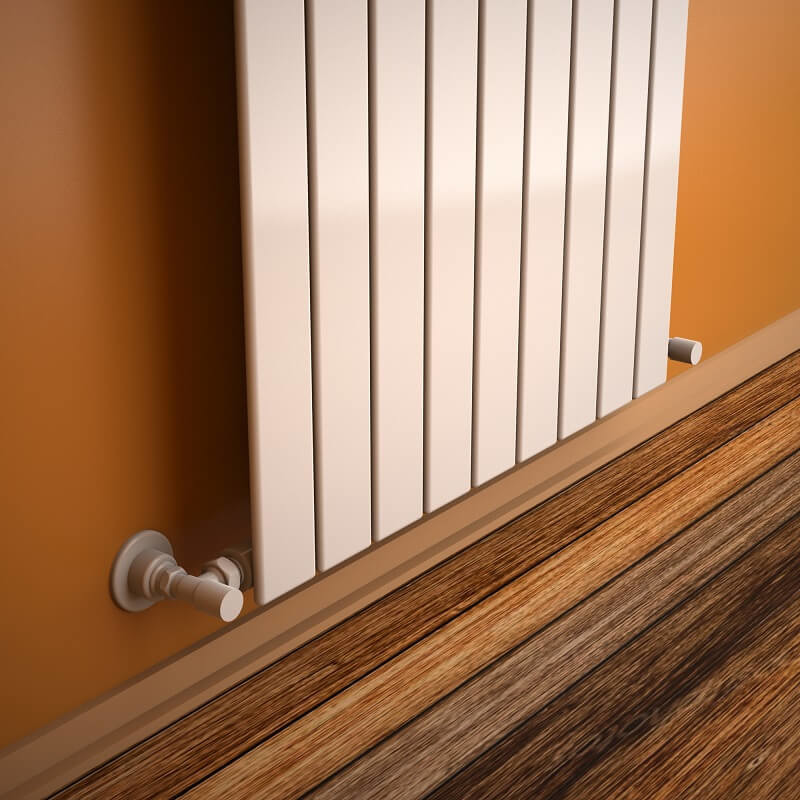

Type 10V Decorative Radiator 400x662 White

Name: Type 10V Decorative Radiator 400x662 White
SKU: 210V04000662B1PS
Price: 6408.60 TRY
Availability: InStock

Product Code : 210V04000662B1PS

Guarantee : 10 Year

TAXES Included

Price

12,817.20 TL

Discounted Price

6,408.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

10.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10V

• Material =Steel

• Height=400 mm

• Width=662 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=2,9 lt

• Weight=7,5 kg

• Boxed Weight=8,6 kg

• Box Size=71x45x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 293 Kcal/h

• Heat Output 90/70-20° ?t=60°C=370Kcal/h

• Heat Output 55/45-20° ?t=30°C=151 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=340 Watt

• Heat Output 90/70-20°?t=60°C=429 Watt

• Heat Output 55/45-20°?t=30°C=175 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1161 Btu

• Heat Output 90/70-20°?t=60°C=1463 Btu

• Heat Output 55/45-20°?t=30°C=595 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
