%50 Discount
Detay Banner

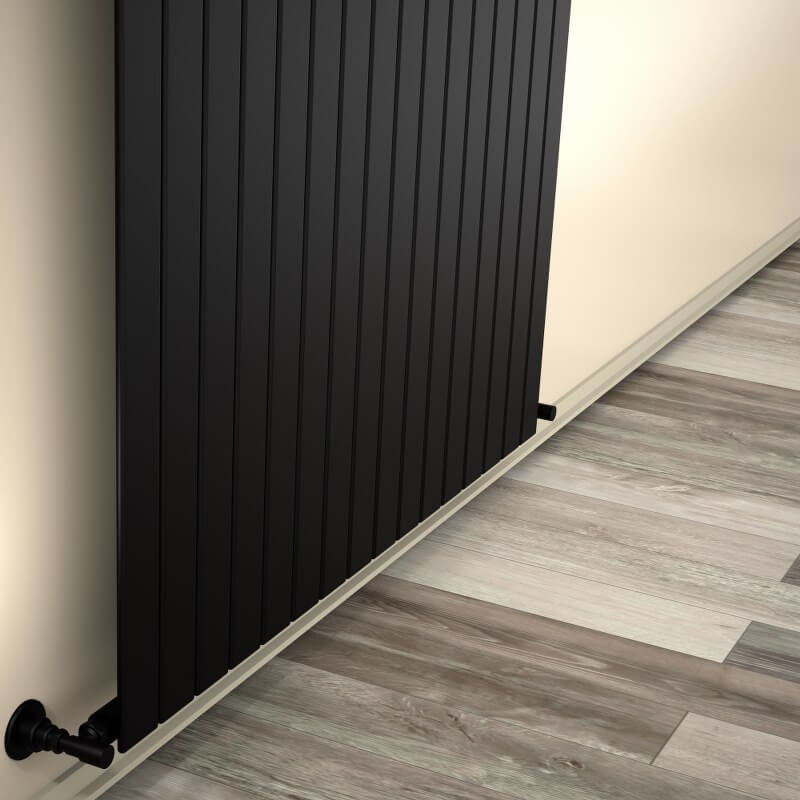

Type 10V Decorative Radiator 400x1180 Matte Black

Product Code : 210V04001180B3MS
Guarantee : 10 Year
TAXES Included
Price
:
23,773.50 TL
Discounted Price
:
11,886.75 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
14.08.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =400 mm

    • Width=1180 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=16 Pieces

    • Total Number of Profiles (Front + Back)=16+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=5,2 lt

    • Weight=13,3 kg

    • Boxed Weight    =15,02 kg

    • Box Size=122x45x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1270 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1270 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 520 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=656Kcal/h

    • Heat Output 55/45-20° ?t=30°C=267 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=604 Watt

    • Heat Output 90/70-20°?t=60°C=762 Watt

    • Heat Output 55/45-20°?t=30°C=310 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=2061 Btu

    • Heat Output 90/70-20°?t=60°C=2597 Btu

    • Heat Output 55/45-20°?t=30°C=1056 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors
  • %50 Discount - Type 10V Decorative Radiator 400x1180 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x1180 White ∆t50°C=519 Kcal/h | ∆t60°C= 654 Kcal/h | 16 Pipes | Heats 4-10 m2
    19,018.80 TL
    9,509.40 TL
  • %50 Discount - Type 10V Decorative Radiator 400x1180 Anthracite
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x1180 Anthracite ∆t50°C=519 Kcal/h | ∆t60°C= 654 Kcal/h | 16 Pipes | Heats 4-10 m2
    23,773.50 TL
    11,886.75 TL
  • %50 Discount - Type 10V Decorative Radiator 400x1180 Matte Black
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x1180 Matte Black ∆t50°C=519 Kcal/h | ∆t60°C= 654 Kcal/h | 16 Pipes | Heats 4-10 m2
    23,773.50 TL
    11,886.75 TL
  • %50 Discount - Type 10V Decorative Radiator 400x1180 Wood Effect
    AKS Seçenekleri
    Type 10V Decorative Radiator 400x1180 Wood Effect ∆t50°C=519 Kcal/h | ∆t60°C= 654 Kcal/h | 16 Pipes | Heats 4-10 m2
    28,951.20 TL
    14,475.60 TL
Accessories
