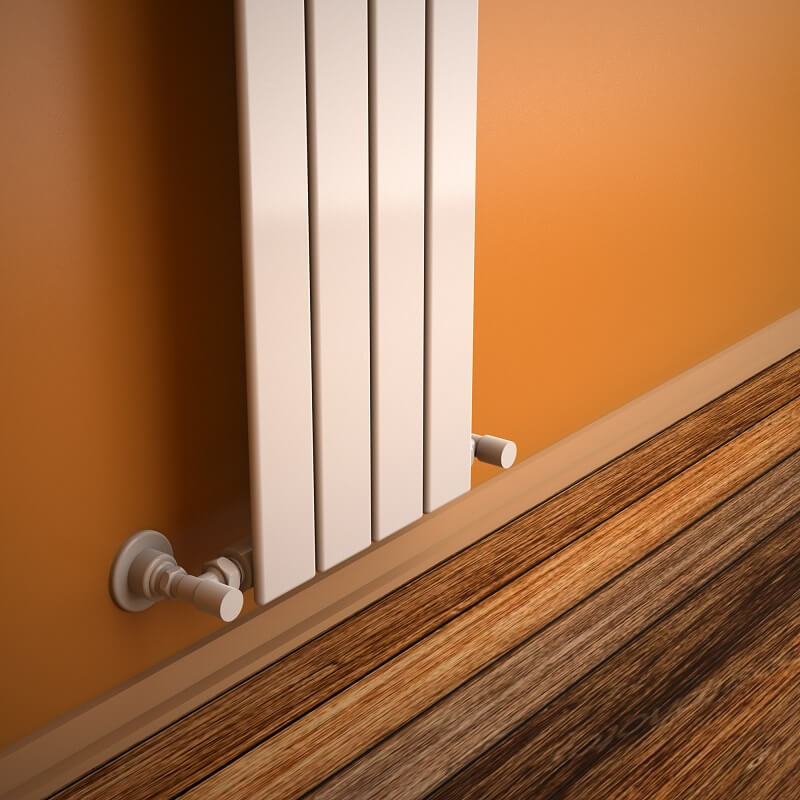

Type 10V Decorative Radiator 1500x292 White

Product Code : 210V15000292B1PS
Guarantee : 10 Year
TAXES Included
Price
:
14,800.80 TL
Discounted Price
:
7,400.40 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
16.08.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10V

    • Material =Steel

    • Height    =1500 mm

    • Width=292 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=4 Pieces

    • Total Number of Profiles (Front + Back)=4+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=3,5 lt

    • Weight=10,2 kg

    • Boxed Weight    =11,82 kg

    • Box Size=34x155x8,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =382 mm

    • Standard Entry2 =1450 mm

    • Standard Entry Cross =382 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 430 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=542Kcal/h

    • Heat Output 55/45-20° ?t=30°C=221 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=500 Watt

    • Heat Output 90/70-20°?t=60°C=630 Watt

    • Heat Output 55/45-20°?t=30°C=256 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=1706 Btu

    • Heat Output 90/70-20°?t=60°C=2150 Btu

    • Heat Output 55/45-20°?t=30°C=874 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri
Other Colors
  • %50 Discount - Type 10V Decorative Radiator 1500x292 White
    AKS Seçenekleri
    Type 10V Decorative Radiator 1500x292 White ∆t50°C=430 Kcal/h | ∆t60°C= 542 Kcal/h | 4 Pipes | Heats 3-9 m2
    14,800.80 TL
    7,400.40 TL

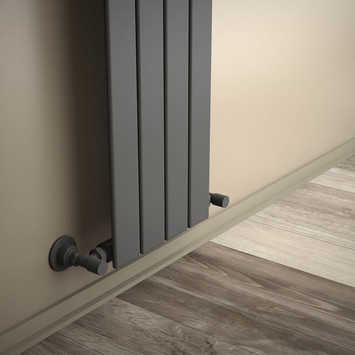

  • %50 Discount - Type 10V Decorative Radiator 1500x292 Anthracite
