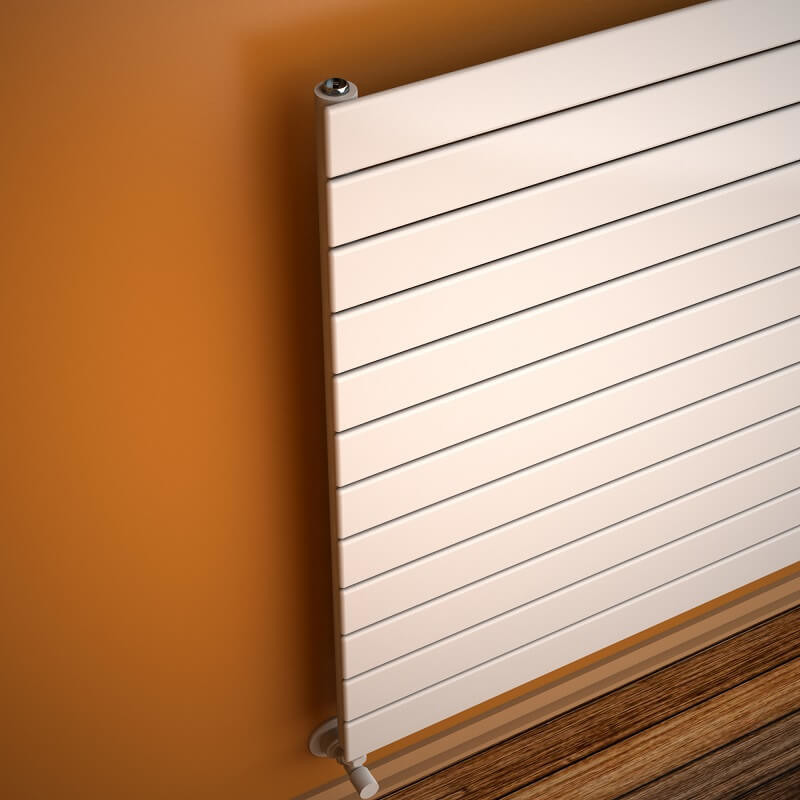

Type 10H Decorative Radiator 884x1900 White (Thin Radiator)

Name: Type 10H Decorative Radiator 884x1900 White (Thin Radiator)
SKU: 210H08841900B1PS
Price: 21540.00 TRY
Availability: InStock

Product Code : 210H08841900B1PS

Guarantee : 10 Year

TAXES Included

Price

43,080.00 TL

Discounted Price

21,540.00 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"5966","76_0":"14201","75_0":"11456","74_0":"8711","73_0":"16946","72_0":"18206","71_0":"19466","70_0":"22331","78_0":"22667"},"variant_prices":{"77_0":17950,"76_0":18750,"75_0":18750,"74_0":18750,"73_0":18750,"72_0":18750,"71_0":18750,"70_0":18750,"78_0":18750},"variant_price_raws":{"77_0":17950,"76_0":18750,"75_0":18750,"74_0":18750,"73_0":18750,"72_0":18750,"71_0":18750,"70_0":18750,"78_0":18750},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"35900","76_0":"37500","75_0":"37500","74_0":"37500","73_0":"37500","72_0":"37500","71_0":"37500","70_0":"37500","78_0":"37500"},"variant_supplier_codes":{"77_0":"210H08841900B1PS","76_0":"210H08841900B1PM1","75_0":"210H08841900B1PM3","74_0":"210H08841900B1PM2","73_0":"210H08841900B1PY0","72_0":"210H08841900B1PC1","71_0":"210H08841900B1PC2","70_0":"210H08841900B1PR5","78_0":"210H08841900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

10.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=884 mm

• Width=1900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,8 lt

• Weight=38,1 kg

• Boxed Weight=43,44 kg

• Box Size=94x196x8,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1602 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2019Kcal/h

• Heat Output 55/45-20° ?t=30°C=821Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1862 Watt

• Heat Output 90/70-20°?t=60°C=2347 Watt

• Heat Output 55/45-20°?t=30°C=954 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6354 Btu

• Heat Output 90/70-20°?t=60°C=8007 Btu

• Heat Output 55/45-20°?t=30°C=3254 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"5966","76_0":"14201","75_0":"11456","74_0":"8711","73_0":"16946","72_0":"18206","71_0":"19466","70_0":"22331","78_0":"22667"},"variant_prices":{"77_0":17950,"76_0":18750,"75_0":18750,"74_0":18750,"73_0":18750,"72_0":18750,"71_0":18750,"70_0":18750,"78_0":18750},"variant_price_raws":{"77_0":17950,"76_0":18750,"75_0":18750,"74_0":18750,"73_0":18750,"72_0":18750,"71_0":18750,"70_0":18750,"78_0":18750},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"35900","76_0":"37500","75_0":"37500","74_0":"37500","73_0":"37500","72_0":"37500","71_0":"37500","70_0":"37500","78_0":"37500"},"variant_supplier_codes":{"77_0":"210H08841900B1PS","76_0":"210H08841900B1PM1","75_0":"210H08841900B1PM3","74_0":"210H08841900B1PM2","73_0":"210H08841900B1PY0","72_0":"210H08841900B1PC1","71_0":"210H08841900B1PC2","70_0":"210H08841900B1PR5","78_0":"210H08841900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Type 10H Decorative Radiator 884x1900 White (Thin Radiator) ∆t50°C=1601 Kcal/h | ∆t60°C= 2018 Kcal/h | 12 Pipes | Heats 11-31 m2

43,080.00 TL

21,540.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"5967","76_0":"14202","75_0":"11457","74_0":"8712","73_0":"16947","72_0":"18207","71_0":"19467","70_0":"22332","78_0":"22668"},"variant_prices":{"77_0":22437.5,"76_0":23237.5,"75_0":23237.5,"74_0":23237.5,"73_0":23237.5,"72_0":23237.5,"71_0":23237.5,"70_0":23237.5,"78_0":23237.5},"variant_price_raws":{"77_0":22437.5,"76_0":23237.5,"75_0":23237.5,"74_0":23237.5,"73_0":23237.5,"72_0":23237.5,"71_0":23237.5,"70_0":23237.5,"78_0":23237.5},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"44875","76_0":"46475","75_0":"46475","74_0":"46475","73_0":"46475","72_0":"46475","71_0":"46475","70_0":"46475","78_0":"46475"},"variant_supplier_codes":{"77_0":"210H08841900B2TS","76_0":"210H08841900B2TM1","75_0":"210H08841900B2TM3","74_0":"210H08841900B2TM2","73_0":"210H08841900B2TY0","72_0":"210H08841900B2TC1","71_0":"210H08841900B2TC2","70_0":"210H08841900B2TR5","78_0":"210H08841900B2TL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

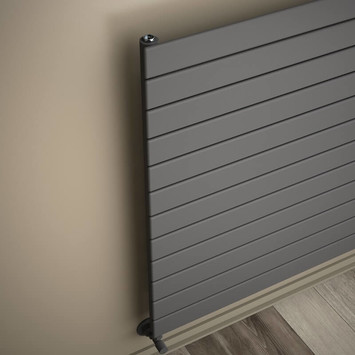

Type 10H Decorative Radiator 884x1900 Anthracite (Thin Radiator) ∆t50°C=1601 Kcal/h | ∆t60°C= 2018 Kcal/h | 12 Pipes | Heats 11-31 m2
