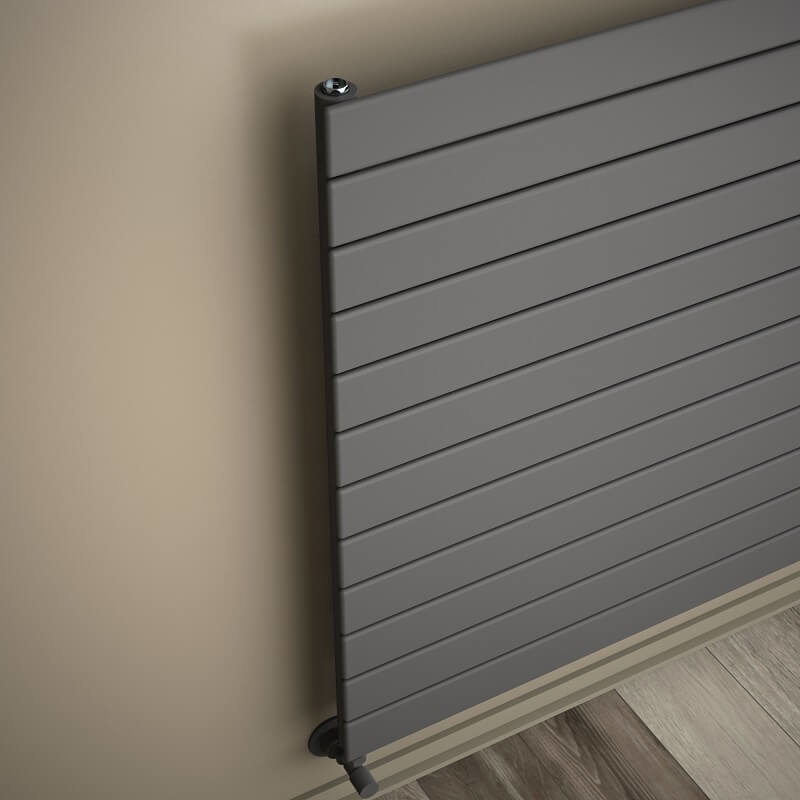

Type 10H Decorative Radiator 884x1700 Anthracite (Thin Radiator)

Product Code : 210H08841700B2TS
Guarantee : 10 Year
TAXES Included
Price
:
49,096.50 TL
Discounted Price
:
24,548.25 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-85cm Entry Right Side-85cm Entry Right

Side-85cm Entry Left Side-85cm Entry Left

Choose Quantity
Planned Delivery
:
16.08.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 10H

    • Material =Steel

    • Height    =884 mm

    • Width=1700 mm

    • Color/Coating=Anthracite

    • Number of Sections=12 Pieces

    • Total Number of Profiles (Front + Back)=12+0 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=48 mm

    • Wall to Center of Inlet=40 mm

    • Wall Projection Distance=69 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=11,6 lt

    • Weight=34,3 kg

    • Boxed Weight    =39,11 kg

    • Box Size=94x176x8,6 cm


    TAPPING OPTIONS




    • Standard Entry=1650 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1790mm

    • Cross Up-Right / Down-Left=1790mm

    • Cross Up-Left / Down-Right=1790mm

    • Side - Right=850mm

    • Side - Left=850mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1433 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1806Kcal/h

    • Heat Output 55/45-20° ?t=30°C=734Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1666 Watt

    • Heat Output 90/70-20°?t=60°C=2100 Watt

    • Heat Output 55/45-20°?t=30°C=853 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5685 Btu

    • Heat Output 90/70-20°?t=60°C=7164 Btu

    • Heat Output 55/45-20°?t=30°C=2911 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %50 Discount - Type 10H Decorative Radiator 884x1700 White (Thin Radiator)
    AKS Seçenekleri
    Type 10H Decorative Radiator 884x1700 White (Thin Radiator) ∆t50°C=1433 Kcal/h | ∆t60°C= 1806 Kcal/h | 12 Pipes | Heats 10-28 m2
    39,277.20 TL
    19,638.60 TL
  • %50 Discount - Type 10H Decorative Radiator 884x1700 Anthracite (Thin Radiator)
    AKS Seçenekleri
    Type 10H Decorative Radiator 884x1700 Anthracite (Thin Radiator) ∆t50°C=1433 Kcal/h | ∆t60°C= 1806 Kcal/h | 12 Pipes | Heats 10-28 m2
    49,096.50 TL
    24,548.25 TL
  • %50 Discount - Type 10H Decorative Radiator 884x1700 Matte Black (Thin Radiator)
    AKS Seçenekleri
    Type 10H Decorative Radiator 884x1700 Matte Black (Thin Radiator) ∆t50°C=1433 Kcal/h | ∆t60°C= 1806 Kcal/h | 12 Pipes | Heats 10-28 m2
    49,096.50 TL
    24,548.25 TL
  • %50 Discount - Type 10H Decorative Radiator 884x1700 Wood Effect (Thin Radiator)
    AKS Seçenekleri
    Type 10H Decorative Radiator 884x1700 Wood Effect (Thin Radiator) ∆t50°C=1433 Kcal/h | ∆t60°C= 1806 Kcal/h | 12 Pipes | Heats 10-28 m2
    59,023.20 TL
    29,511.60 TL
