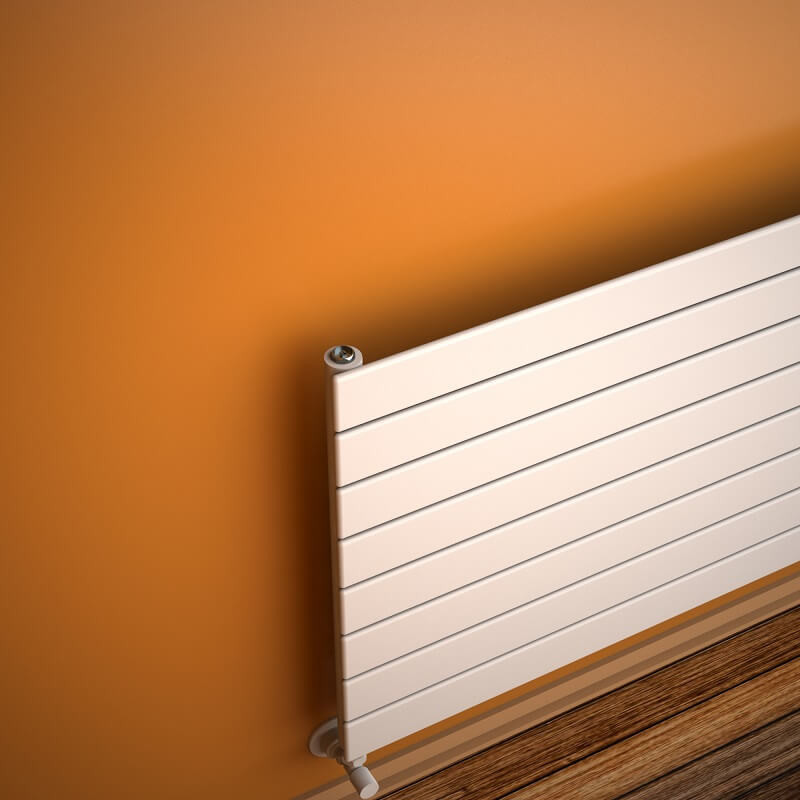

Type 10H Decorative Radiator 588x1300 White (Thin Radiator)

Name: Type 10H Decorative Radiator 588x1300 White (Thin Radiator)
SKU: 210H05881300B1PS
Price: 11287.20 TRY
Availability: InStock

Product Code : 210H05881300B1PS

Guarantee : 10 Year

TAXES Included

Price

22,574.40 TL

Discounted Price

11,287.20 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5691","68_0":"13926","67_0":"11181","66_0":"8436","65_0":"16671","64_0":"17931","63_0":"19191","62_0":"22029","61_0":"21759"},"variant_prices":{"69_0":9406,"68_0":10206,"67_0":10206,"66_0":10206,"65_0":10206,"64_0":10206,"63_0":10206,"62_0":10206,"61_0":10206},"variant_price_raws":{"69_0":9406,"68_0":10206,"67_0":10206,"66_0":10206,"65_0":10206,"64_0":10206,"63_0":10206,"62_0":10206,"61_0":10206},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"18812","68_0":"20412","67_0":"20412","66_0":"20412","65_0":"20412","64_0":"20412","63_0":"20412","62_0":"20412","61_0":"20412"},"variant_supplier_codes":{"69_0":"210H05881300B1PS","68_0":"210H05881300B1PM1","67_0":"210H05881300B1PM3","66_0":"210H05881300B1PM2","65_0":"210H05881300B1PY0","64_0":"210H05881300B1PC1","63_0":"210H05881300B1PC2","62_0":"210H05881300B1PL4","61_0":"210H05881300B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

27.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=588 mm

• Width=1300 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,2 lt

• Weight=17,9 kg

• Boxed Weight=20,5 kg

• Box Size=64x136x8,6 cm

TAPPING OPTIONS

• Standard Entry=1250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1390mm

• Cross Up-Right / Down-Left=1390mm

• Cross Up-Left / Down-Right=1390mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 761 Kcal/h

• Heat Output 90/70-20° ?t=60°C=959Kcal/h

• Heat Output 55/45-20° ?t=30°C=390Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=884 Watt

• Heat Output 90/70-20°?t=60°C=1114 Watt

• Heat Output 55/45-20°?t=30°C=453 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3017 Btu

• Heat Output 90/70-20°?t=60°C=3802 Btu

• Heat Output 55/45-20°?t=30°C=1545 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5691","68_0":"13926","67_0":"11181","66_0":"8436","65_0":"16671","64_0":"17931","63_0":"19191","62_0":"22029","61_0":"21759"},"variant_prices":{"69_0":9406,"68_0":10206,"67_0":10206,"66_0":10206,"65_0":10206,"64_0":10206,"63_0":10206,"62_0":10206,"61_0":10206},"variant_price_raws":{"69_0":9406,"68_0":10206,"67_0":10206,"66_0":10206,"65_0":10206,"64_0":10206,"63_0":10206,"62_0":10206,"61_0":10206},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"18812","68_0":"20412","67_0":"20412","66_0":"20412","65_0":"20412","64_0":"20412","63_0":"20412","62_0":"20412","61_0":"20412"},"variant_supplier_codes":{"69_0":"210H05881300B1PS","68_0":"210H05881300B1PM1","67_0":"210H05881300B1PM3","66_0":"210H05881300B1PM2","65_0":"210H05881300B1PY0","64_0":"210H05881300B1PC1","63_0":"210H05881300B1PC2","62_0":"210H05881300B1PL4","61_0":"210H05881300B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 10H Decorative Radiator 588x1300 White (Thin Radiator) ∆t50°C=760 Kcal/h | ∆t60°C= 958 Kcal/h | 8 Pipes | Heats 5-15 m2

22,574.40 TL

11,287.20 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5692","68_0":"13927","67_0":"11182","66_0":"8437","65_0":"16672","64_0":"17932","63_0":"19192","62_0":"22030","61_0":"21760"},"variant_prices":{"69_0":11757.5,"68_0":12557.5,"67_0":12557.5,"66_0":12557.5,"65_0":12557.5,"64_0":12557.5,"63_0":12557.5,"62_0":12557.5,"61_0":12557.5},"variant_price_raws":{"69_0":11757.5,"68_0":12557.5,"67_0":12557.5,"66_0":12557.5,"65_0":12557.5,"64_0":12557.5,"63_0":12557.5,"62_0":12557.5,"61_0":12557.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"23515","68_0":"25115","67_0":"25115","66_0":"25115","65_0":"25115","64_0":"25115","63_0":"25115","62_0":"25115","61_0":"25115"},"variant_supplier_codes":{"69_0":"210H05881300B2TS","68_0":"210H05881300B2TM1","67_0":"210H05881300B2TM3","66_0":"210H05881300B2TM2","65_0":"210H05881300B2TY0","64_0":"210H05881300B2TC1","63_0":"210H05881300B2TC2","62_0":"210H05881300B2TL4","61_0":"210H05881300B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 10H Decorative Radiator 588x1300 Anthracite (Thin Radiator) ∆t50°C=760 Kcal/h | ∆t60°C= 958 Kcal/h | 8 Pipes | Heats 5-15 m2

28,218.00 TL

14,109.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5694","68_0":"13929","67_0":"11184","66_0":"8439","65_0":"16674","64_0":"17934","63_0":"19194","62_0":"22032","61_0":"21762"},"variant_prices":{"69_0":11757.5,"68_0":12557.5,"67_0":12557.5,"66_0":12557.5,"65_0":12557.5,"64_0":12557.5,"63_0":12557.5,"62_0":12557.5,"61_0":12557.5},"variant_price_raws":{"69_0":11757.5,"68_0":12557.5,"67_0":12557.5,"66_0":12557.5,"65_0":12557.5,"64_0":12557.5,"63_0":12557.5,"62_0":12557.5,"61_0":12557.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"23515","68_0":"25115","67_0":"25115","66_0":"25115","65_0":"25115","64_0":"25115","63_0":"25115","62_0":"25115","61_0":"25115"},"variant_supplier_codes":{"69_0":"210H05881300B3MS","68_0":"210H05881300B3MM1","67_0":"210H05881300B3MM3","66_0":"210H05881300B3MM2","65_0":"210H05881300B3MY0","64_0":"210H05881300B3MC1","63_0":"210H05881300B3MC2","62_0":"210H05881300B3ML4","61_0":"210H05881300B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 10H Decorative Radiator 588x1300 Matte Black (Thin Radiator) ∆t50°C=760 Kcal/h | ∆t60°C= 958 Kcal/h | 8 Pipes | Heats 5-15 m2

28,218.00 TL

14,109.00 TL
%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"5693","68_0":"13928","67_0":"11183","66_0":"8438","65_0":"16673","64_0":"17933","63_0":"19193","62_0":"22031","61_0":"21761"},"variant_prices":{"69_0":14704.5,"68_0":15504.5,"67_0":15504.5,"66_0":15504.5,"65_0":15504.5,"64_0":15504.5,"63_0":15504.5,"62_0":15504.5,"61_0":15504.5},"variant_price_raws":{"69_0":14704.5,"68_0":15504.5,"67_0":15504.5,"66_0":15504.5,"65_0":15504.5,"64_0":15504.5,"63_0":15504.5,"62_0":15504.5,"61_0":15504.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"29409","68_0":"31009","67_0":"31009","66_0":"31009","65_0":"31009","64_0":"31009","63_0":"31009","62_0":"31009","61_0":"31009"},"variant_supplier_codes":{"69_0":"210H05881300K6FS","68_0":"210H05881300K6FM1","67_0":"210H05881300K6FM3","66_0":"210H05881300K6FM2","65_0":"210H05881300K6FY0","64_0":"210H05881300K6FC1","63_0":"210H05881300K6FC2","62_0":"210H05881300K6FL4","61_0":"210H05881300K6FR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"95","63_0":"100","62_0":"100","61_0":"100"}}

Type 10H Decorative Radiator 588x1300 Wood Effect (Thin Radiator) ∆t50°C=760 Kcal/h | ∆t60°C= 958 Kcal/h | 8 Pipes | Heats 5-15 m2

35,290.80 TL

17,645.40 TL
