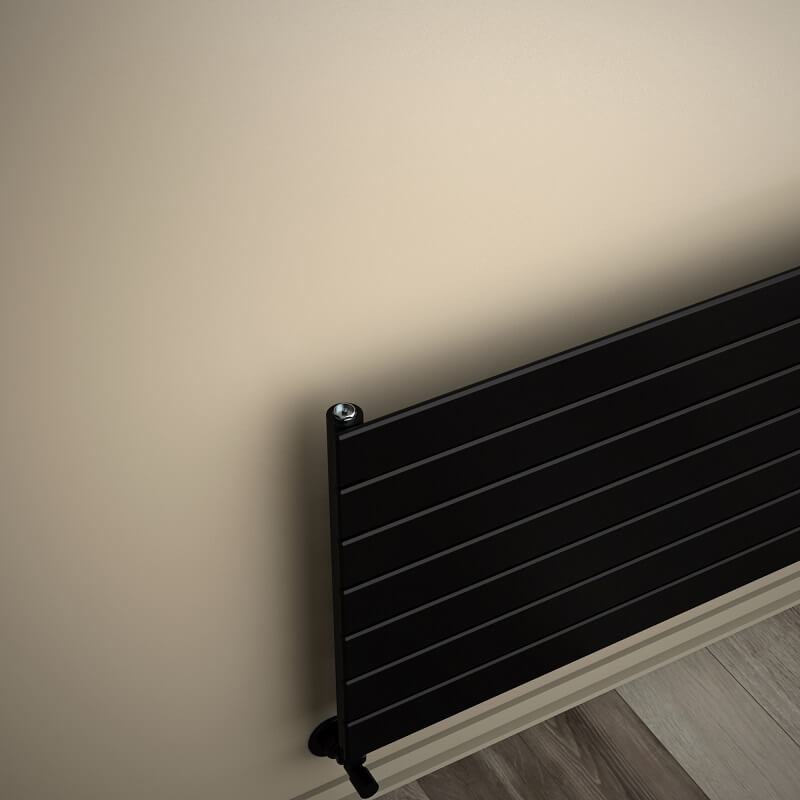

Type 10H Decorative Radiator 514x2600 Matte Black (Thin Radiator)

Name: Type 10H Decorative Radiator 514x2600 Matte Black (Thin Radiator)
SKU: 210H05142600B3MS
Price: 21757.50 TRY
Availability: InStock

Product Code : 210H05142600B3MS

Guarantee : 10 Year

TAXES Included

Price

43,515.00 TL

Discounted Price

21,757.50 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5913","59_0":"8658","58_0":"11403","57_0":"14148","56_0":"16893","55_0":"18153","54_0":"19413","53_0":"21150","52_0":"21486"},"variant_prices":{"60_0":18131.25,"59_0":18931.25,"58_0":18931.25,"57_0":18931.25,"56_0":18931.25,"55_0":18931.25,"54_0":18931.25,"53_0":18931.25,"52_0":18931.25},"variant_price_raws":{"60_0":18131.25,"59_0":18931.25,"58_0":18931.25,"57_0":18931.25,"56_0":18931.25,"55_0":18931.25,"54_0":18931.25,"53_0":18931.25,"52_0":18931.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"36262.5","59_0":"37862.5","58_0":"37862.5","57_0":"37862.5","56_0":"37862.5","55_0":"37862.5","54_0":"37862.5","53_0":"37862.5","52_0":"37862.5"},"variant_supplier_codes":{"60_0":"210H05142600B3MS","59_0":"210H05142600B3MM2","58_0":"210H05142600B3MM3","57_0":"210H05142600B3MM1","56_0":"210H05142600B3MY0","55_0":"210H05142600B3MC1","54_0":"210H05142600B3MC2","53_0":"210H05142600B3MR2","52_0":"210H05142600B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

30.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=514 mm

• Width=2600 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,9 lt

• Weight=29,9 kg

• Boxed Weight=34,21 kg

• Box Size=57x266x8,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1348 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1699Kcal/h

• Heat Output 55/45-20° ?t=30°C=691Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1567 Watt

• Heat Output 90/70-20°?t=60°C=1975 Watt

• Heat Output 55/45-20°?t=30°C=803 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5347 Btu

• Heat Output 90/70-20°?t=60°C=6738 Btu

• Heat Output 55/45-20°?t=30°C=2738 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

panel radyatör , radyatör petek , radyatör , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

Other Colors

%50 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5910","59_0":"8655","58_0":"11400","57_0":"14145","56_0":"16890","55_0":"18150","54_0":"19410","53_0":"21147","52_0":"21483"},"variant_prices":{"60_0":14505,"59_0":15305,"58_0":15305,"57_0":15305,"56_0":15305,"55_0":15305,"54_0":15305,"53_0":15305,"52_0":15305},"variant_price_raws":{"60_0":14505,"59_0":15305,"58_0":15305,"57_0":15305,"56_0":15305,"55_0":15305,"54_0":15305,"53_0":15305,"52_0":15305},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"29010","59_0":"30610","58_0":"30610","57_0":"30610","56_0":"30610","55_0":"30610","54_0":"30610","53_0":"30610","52_0":"30610"},"variant_supplier_codes":{"60_0":"210H05142600B1PS","59_0":"210H05142600B1PM2","58_0":"210H05142600B1PM3","57_0":"210H05142600B1PM1","56_0":"210H05142600B1PY0","55_0":"210H05142600B1PC1","54_0":"210H05142600B1PC2","53_0":"210H05142600B1PR2","52_0":"210H05142600B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

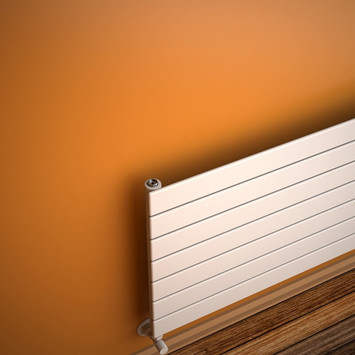

Type 10H Decorative Radiator 514x2600 White (Thin Radiator) ∆t50°C=1348 Kcal/h | ∆t60°C= 1699 Kcal/h | 7 Pipes | Heats 9-26 m2
