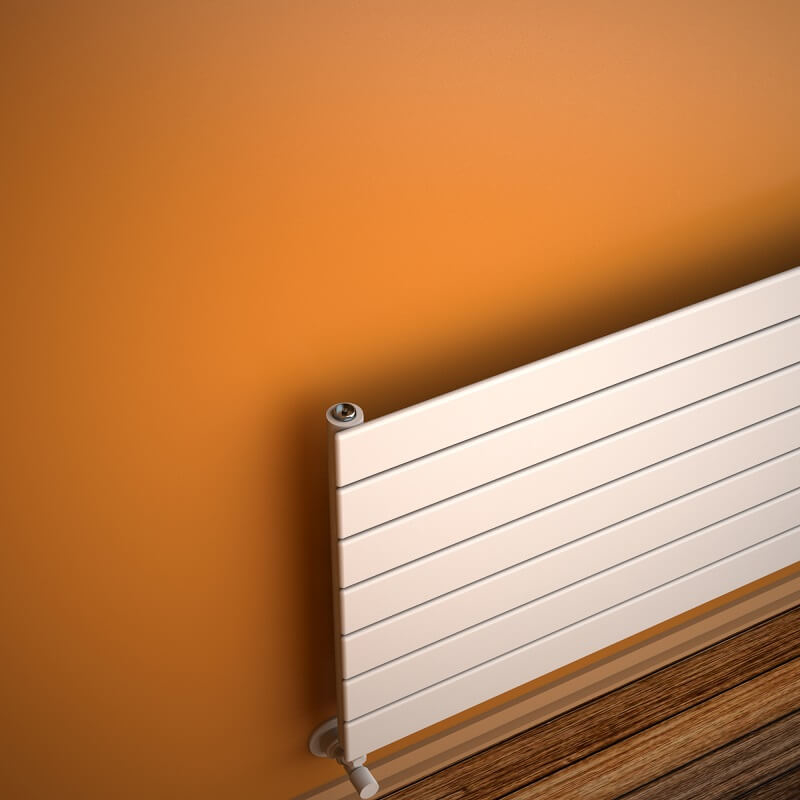

Type 10H Decorative Radiator 514x1700 White (Thin Radiator)

Name: Type 10H Decorative Radiator 514x1700 White (Thin Radiator)
SKU: 210H05141700B1PS
Price: 12403.20 TRY
Availability: InStock

Product Code : 210H05141700B1PS

Guarantee : 10 Year

TAXES Included

Price

24,806.40 TL

Discounted Price

12,403.20 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"5874","59_0":"8619","58_0":"11364","57_0":"14109","56_0":"16854","55_0":"18114","54_0":"19374","53_0":"21111","52_0":"21447"},"variant_prices":{"60_0":10336,"59_0":11136,"58_0":11136,"57_0":11136,"56_0":11136,"55_0":11136,"54_0":11136,"53_0":11136,"52_0":11136},"variant_price_raws":{"60_0":10336,"59_0":11136,"58_0":11136,"57_0":11136,"56_0":11136,"55_0":11136,"54_0":11136,"53_0":11136,"52_0":11136},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"20672","59_0":"22272","58_0":"22272","57_0":"22272","56_0":"22272","55_0":"22272","54_0":"22272","53_0":"22272","52_0":"22272"},"variant_supplier_codes":{"60_0":"210H05141700B1PS","59_0":"210H05141700B1PM2","58_0":"210H05141700B1PM3","57_0":"210H05141700B1PM1","56_0":"210H05141700B1PY0","55_0":"210H05141700B1PC1","54_0":"210H05141700B1PC2","53_0":"210H05141700B1PR2","52_0":"210H05141700B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options

Standard Entry

Bottom Right 50mm

Bottom Left 50mm

Bottom Middle 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-45cm Entry Right

Side-45cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

18.08.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=514 mm

• Width=1700 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,8 lt

• Weight=20,1 kg

• Boxed Weight=23,03 kg

• Box Size=57x176x8,6 cm

TAPPING OPTIONS

• Standard Entry=1650 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1790mm

• Cross Up-Right / Down-Left=1790mm

• Cross Up-Left / Down-Right=1790mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 882 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1112Kcal/h

• Heat Output 55/45-20° ?t=30°C=452Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1025 Watt

• Heat Output 90/70-20°?t=60°C=1292 Watt

• Heat Output 55/45-20°?t=30°C=525 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3498 Btu

• Heat Output 90/70-20°?t=60°C=4408 Btu

• Heat Output 55/45-20°?t=30°C=1791 Btu
