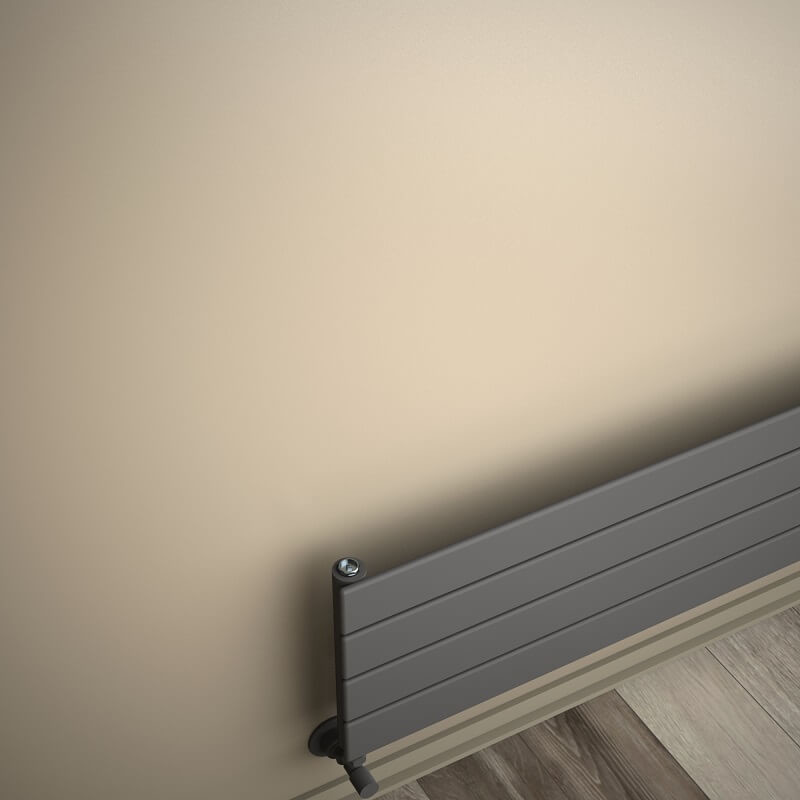

Type 10H Decorative Radiator 292x1200 Anthracite (Thin Radiator)

Name: Type 10H Decorative Radiator 292x1200 Anthracite (Thin Radiator)
SKU: 210H02921200B2TS
Price: 7388.64 TRY
Availability: InStock

Product Code : 210H02921200B2TS

Guarantee : 10 Year

TAXES Included

Price

18,471.60 TL

Discounted Price

7,388.64 TL

15 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"5771","40_0":"14006","42_0":"8516","41_0":"11261","43_0":"16751","45_0":"18011","44_0":"19271","46_0":"20456","47_0":"20774"},"variant_prices":{"39_0":"6157.2","40_0":"6157.2","42_0":"6157.2","41_0":"6157.2","43_0":"6157.2","45_0":"6157.2","44_0":"6157.2","46_0":"6157.2","47_0":"6157.2"},"variant_price_raws":{"39_0":6157.2,"40_0":6157.2,"42_0":6157.2,"41_0":6157.2,"43_0":6157.2,"45_0":6157.2,"44_0":6157.2,"46_0":6157.2,"47_0":6157.2},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":15393,"40_0":15393,"42_0":15393,"41_0":15393,"43_0":15393,"45_0":15393,"44_0":15393,"46_0":15393,"47_0":15393},"variant_supplier_codes":{"39_0":"210H02921200B2TS","40_0":"210H02921200B2TM1","42_0":"210H02921200B2TM2","41_0":"210H02921200B2TM3","43_0":"210H02921200B2TY0","45_0":"210H02921200B2TC1","44_0":"210H02921200B2TC2","46_0":"210H02921200B2TR1","47_0":"210H02921200B2TL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Right 50mm

Bottom Left 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-25cm Entry Right

Side-25cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

28.11.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 10H

• Material =Steel

• Height=292 mm

• Width=1200 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=2,9 lt

• Weight=8,4 kg

• Boxed Weight=9,76 kg

• Box Size=35x126x8,6 cm

TAPPING OPTIONS

• Standard Entry=1150 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1290mm

• Cross Up-Right / Down-Left=1290mm

• Cross Up-Left / Down-Right=1290mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 378 Kcal/h

• Heat Output 90/70-20° ?t=60°C=477Kcal/h

• Heat Output 55/45-20° ?t=30°C=194Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=439 Watt

• Heat Output 90/70-20°?t=60°C=554 Watt

• Heat Output 55/45-20°?t=30°C=225 Watt

Btu

• Heat Output 75/65-20°?t=50°C=1498 Btu

• Heat Output 90/70-20°?t=60°C=1888 Btu

• Heat Output 55/45-20°?t=30°C=767 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
