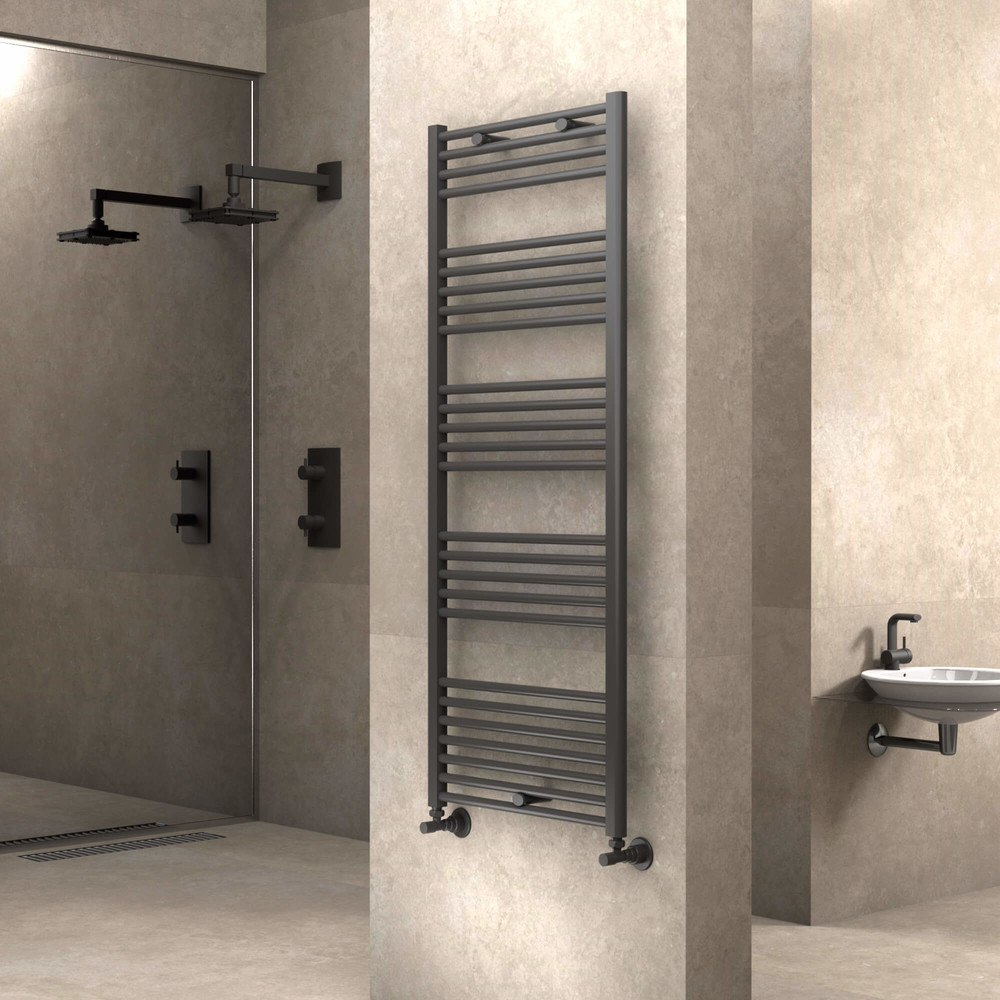

Haiti Towel Warmer 600x1500 Anthracite

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 600mm

• Height = 1500mm

• Tapping Distance = 555 mm

• Color / Coating = Anthracite

• Horizontal Pipe Quantity= 26Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profile

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 7,2lt

• Weight= 9,6kg

• Boxed Weight=10,5kg

• Box Size= 62x152x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.





Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 612Kcal/h

• Heat Output 90/70-20° ?t=60°C= 772Kcal/h

• Heat Output 55/45-20° ?t=30°C= 314Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 711Watt

• Heat Output 90/70-20°?t=60°C= 896Watt

• Heat Output 55/45-20°?t=30°C= 364Watt


Btu

• Heat Output 75/65-20°?t=50°C= 2425Btu

• Heat Output 90/70-20°?t=60°C= 3056Btu

• Heat Output 55/45-20°?t=30°C= 1242Btu
