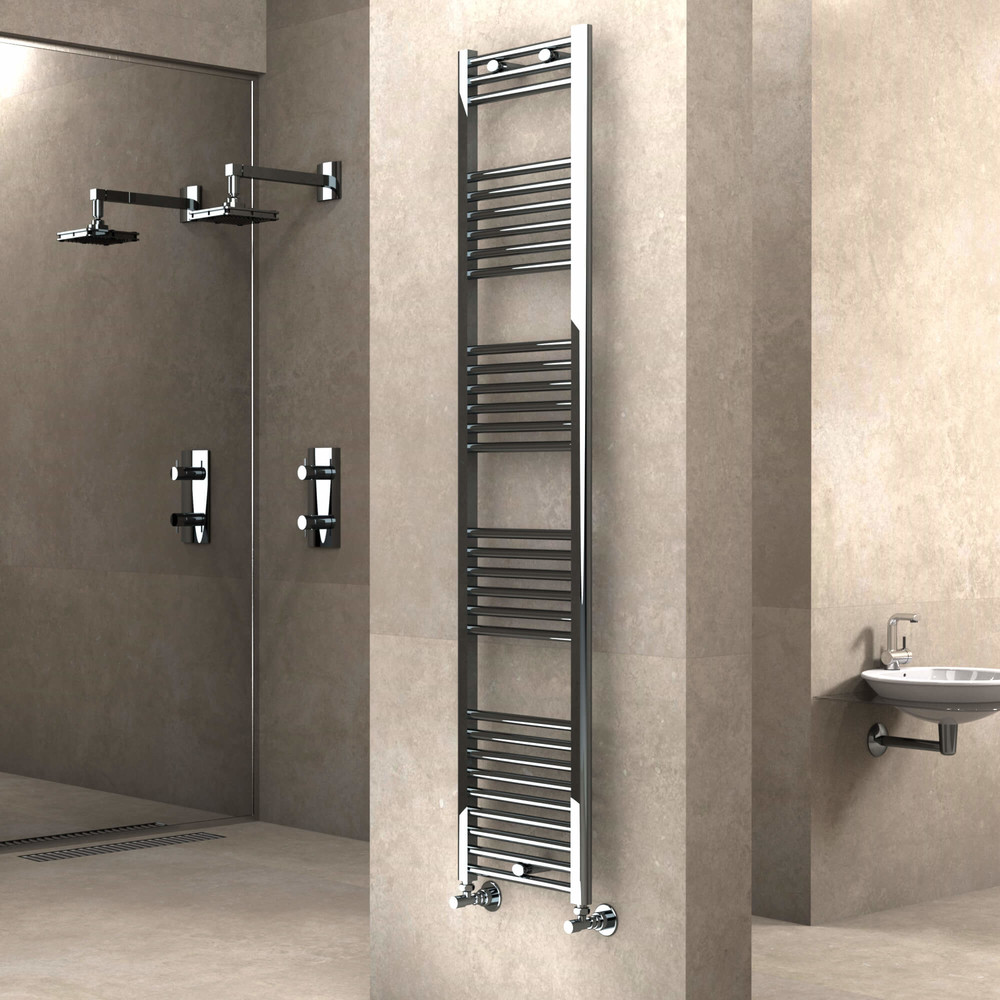

Haiti Towel Warmer 400x1800 Chrome

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 400mm

• Height = 1800mm

• Tapping Distance = 355 mm

• Color / Coating = Chrome

• Horizontal Pipe Quantity= 30Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profilee

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 6,4lt

• Weight= 8,8kg

• Boxed Weight=9,5kg

• Box Size= 42x182x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 342Kcal/h

• Heat Output 90/70-20° ?t=60°C= 431Kcal/h

• Heat Output 55/45-20° ?t=30°C= 176Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 398Watt

• Heat Output 90/70-20°?t=60°C= 501Watt

• Heat Output 55/45-20°?t=30°C= 204Watt


Btu

• Heat Output 75/65-20°?t=50°C= 1357Btu

• Heat Output 90/70-20°?t=60°C= 1710Btu

• Heat Output 55/45-20°?t=30°C= 695Btu
