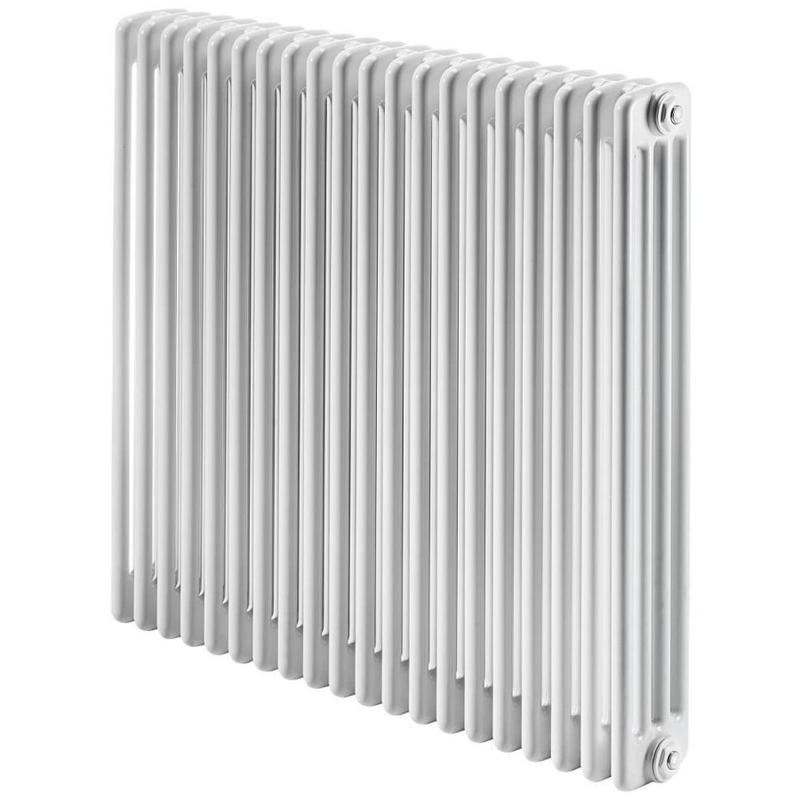

DL 4 Column Radiator 300x992 Special Color Category 2

Product Code : 2D4C03000992X2XS
Guarantee : 10 Year
TAXES Included
Price
:
144,900.24 TL
Discounted Price
:
79,695.13 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
16.03.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)
  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 4K

    • Material  = Steel

    • Height = 300 mm

    • Width   = 992 mm

    • Color = Special Color Category 2

    • Number of Columns = 4

    • Number of Sections  = 21 Pieces

    • Legs Needed If Free Standing = 3 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 108 mm

    • Wall Projection Distance  = 182 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 148 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 16,8 lt

    • Radiator Weight    = 18,9 kg

    TAPPING OPTIONS



    • Standard Entry1    = 230 mm

    • Standard Entry Cross = 1082 mm

    • Sides / Bottom Right-Left  = 1082 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 765 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 964 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 392 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 889 Watt

    • Heat Output 90/70-20° ∆t=60°C = 1121 Watt

    • Heat Output 55/45-20° ∆t=30°C = 456 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 3034 Btu

    • Heat Output 90/70-20° ∆t=60°C = 3823 Btu

    • Heat Output 55/45-20° ∆t=30°C = 1554 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day
  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
