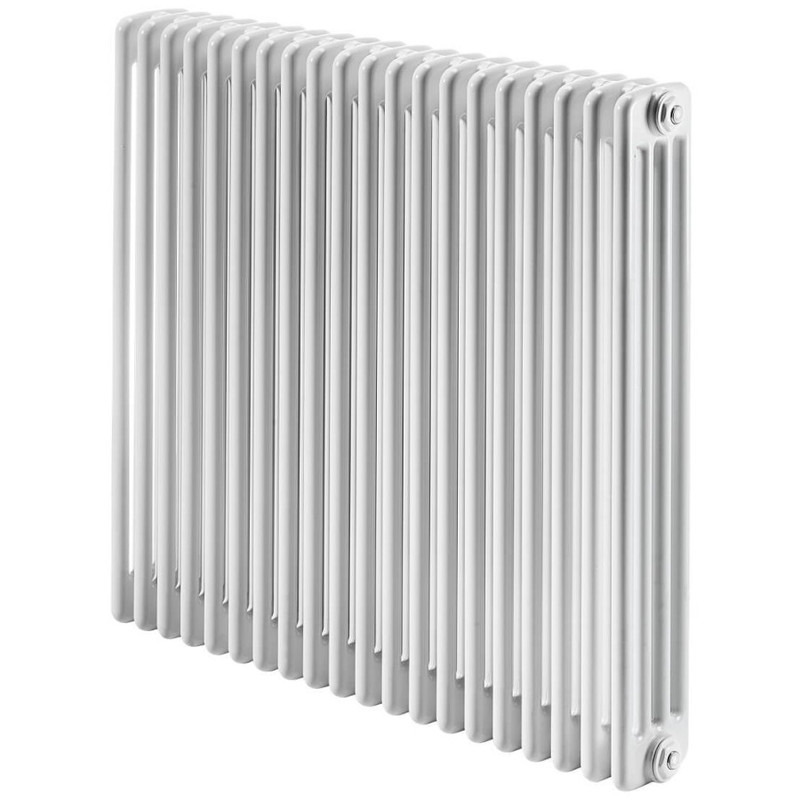

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 300 mm
• Width = 1820 mm
• Color = Special Color Category 2
• Number of Columns = 4
• Number of Sections = 39 Pieces
• Legs Needed If Free Standing = 3 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 31,2 lt
• Radiator Weight = 35,1 kgTAPPING OPTIONS
• Standard Entry1 = 230 mm
• Standard Entry Cross = 1910 mm
• Sides / Bottom Right-Left = 1910 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 1419 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 1788 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 727 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 1650 Watt
• Heat Output 90/70-20° ∆t=60°C = 2079 Watt
• Heat Output 55/45-20° ∆t=30°C = 845 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 5630 Btu
• Heat Output 90/70-20° ∆t=60°C = 7094 Btu
• Heat Output 55/45-20° ∆t=30°C = 2883 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
