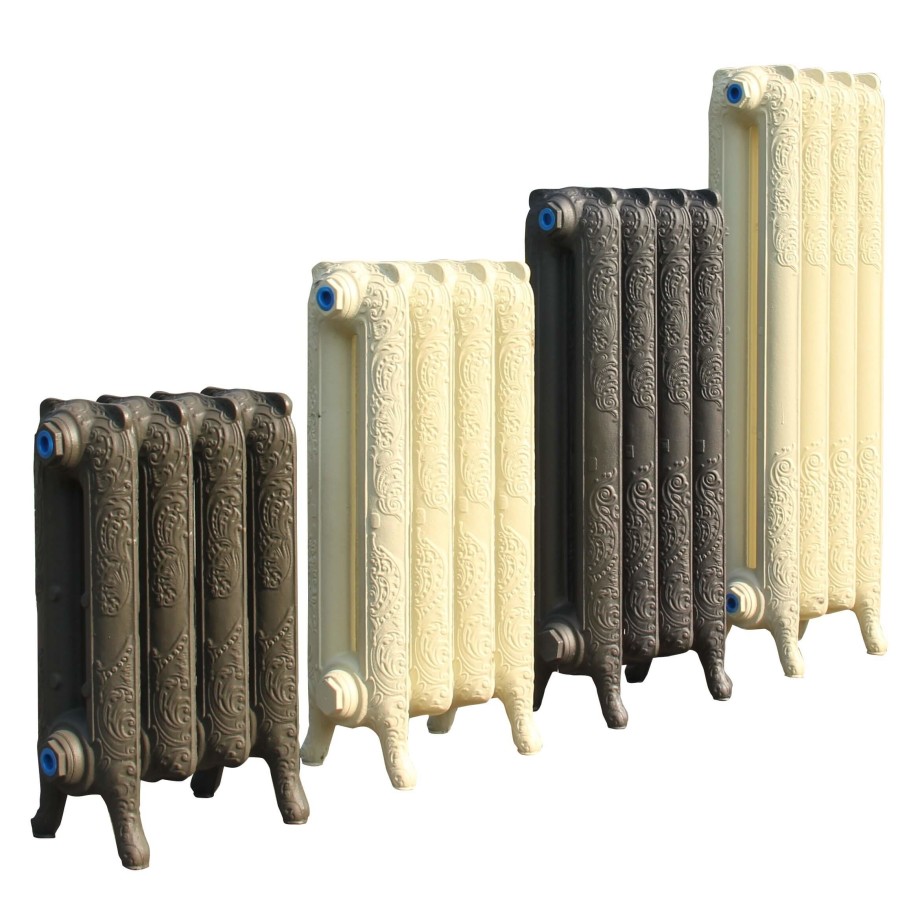

DECORA Cast Iron Radiator Footed End 2 Column 510x560 Primer

DECORA CASTING RADIATOR WITH LEGS TECHNICAL INFORMATION

• Model = Decora

• Material = Cast Iron

• Number of Columns = 2

• Number of Sections = 7 Pieces

• Height = 510 mm

• Width = 532 mm

• Color / Coating / Surface = Primer

• Tapping Distance = 350 mm

• Number of Legs = 2

• Maximum Working Pressure = 9 Bar

• Section Depth = 184,5 mm

• Section Thickness = 76 mm

• Water Volume = 12,81 lt

• Weight = 56,05 kg

• 4x½" Connection ( 2 Pcs Bottom, 2 Pcs Top)

• Blind plug and reducer available on each group, but not air vent

• Assembly Set Is Not Included In The Price for Wall Mounted Radiators

Heat Output

Kcal / h

• Heat Output 75/65-20° ?t=50°C = 443 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 559 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 227 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 515 Watt

• Heat Output 90/70-20° ?t=60°C = 649 Watt

• Heat Output 55/45-20° ?t=30°C = 264 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1758 Btu

• Heat Output 90/70-20° ?t=60°C = 2216 Btu

• Heat Output 55/45-20° ?t=30°C = 901 Btu
