%60 réduit

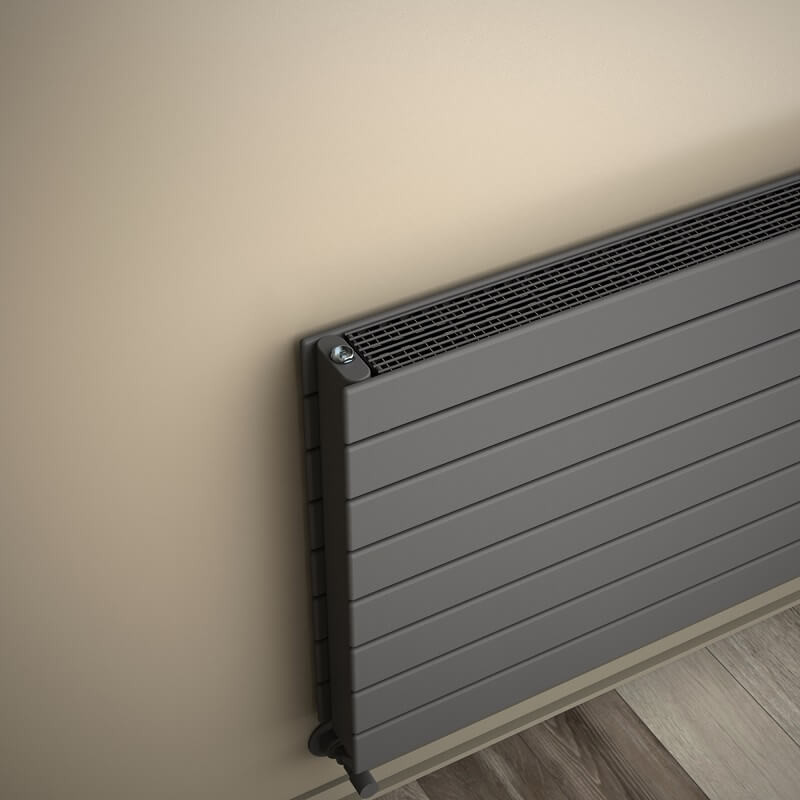

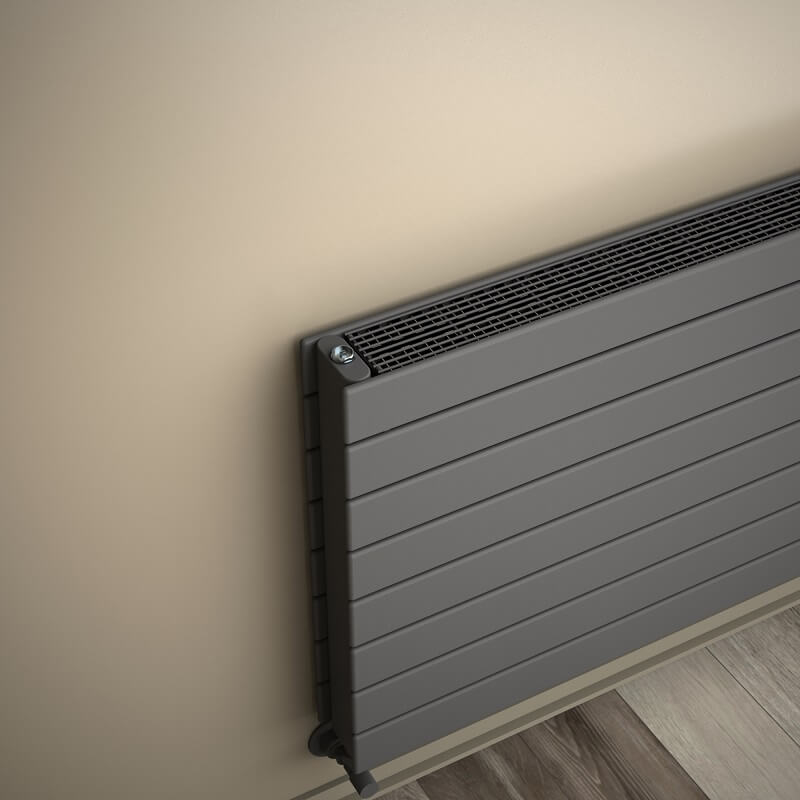

Type 22H Radiateur Décoratif 588x700 Anthracite

Name: Type 22H Radiateur Décoratif 588x700 Anthracite
SKU: 222H05880700B2TS
Price: 17571.84 TRY
Availability: InStock

Code De Produit : 222H05880700B2TS

Garantie : 15 Année

TAXES INCLUSES

Prix

43.929,60 TL

Prix réduit

17.571,84 TL

15 Yıl
Garanti

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8274","68_0":"16509","67_0":"13764","66_0":"11019","65_0":"17769","64_0":"19029","63_0":"20289","62_0":"22221","61_0":"21951"},"variant_prices":{"69_0":"14643.2","68_0":"14643.2","67_0":"14643.2","66_0":"14643.2","65_0":"14643.2","64_0":"14643.2","63_0":"14643.2","62_0":"14643.2","61_0":"14643.2"},"variant_price_raws":{"69_0":14643.2,"68_0":14643.2,"67_0":14643.2,"66_0":14643.2,"65_0":14643.2,"64_0":14643.2,"63_0":14643.2,"62_0":14643.2,"61_0":14643.2},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":36608,"68_0":36608,"67_0":36608,"66_0":36608,"65_0":36608,"64_0":36608,"63_0":36608,"62_0":36608,"61_0":36608},"variant_supplier_codes":{"69_0":"222H05880700B2TS","68_0":"222H05880700B2TM1","67_0":"222H05880700B2TM3","66_0":"222H05880700B2TM2","65_0":"222H05880700B2TY0","64_0":"222H05880700B2TC1","63_0":"222H05880700B2TC2","62_0":"222H05880700B2TL4","61_0":"222H05880700B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

28.11.2025 (28 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=600 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=6,8 lt

• Weight=22,5 kg

• Poids brute=23,86 kg

• Dimension de carton=64x66x13,6 cm

TAPPING OPTIONS

• Entrée Standard=550 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=690mm

• Croix en haut à droite / en bas à gauche=690mm

• Croix haut-gauche / bas-droite=690mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 858 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1082Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=440Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=997 Watt

• Puissance thérmique90/70-20°?t=60°C=1257 Watt

• Puissance thérmique55/45-20°?t=30°C=511 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=3402 Btu

• Puissance thérmique90/70-20°?t=60°C=4287 Btu

• Puissance thérmique55/45-20°?t=30°C=1742 Btu

Informations Sur La Garantie

:

15 Années

Livraison Info

:

28 Jours

Les Étiquettes Des Produits

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

D'autres Couleurs

%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8273","68_0":"16508","67_0":"13763","66_0":"11018","65_0":"17768","64_0":"19028","63_0":"20288","62_0":"22220","61_0":"21950"},"variant_prices":{"69_0":"14643.2","68_0":"14643.2","67_0":"14643.2","66_0":"14643.2","65_0":"14643.2","64_0":"14643.2","63_0":"14643.2","62_0":"14643.2","61_0":"14643.2"},"variant_price_raws":{"69_0":14643.2,"68_0":14643.2,"67_0":14643.2,"66_0":14643.2,"65_0":14643.2,"64_0":14643.2,"63_0":14643.2,"62_0":14643.2,"61_0":14643.2},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":36608,"68_0":36608,"67_0":36608,"66_0":36608,"65_0":36608,"64_0":36608,"63_0":36608,"62_0":36608,"61_0":36608},"variant_supplier_codes":{"69_0":"222H05880700B1PS","68_0":"222H05880700B1PM1","67_0":"222H05880700B1PM3","66_0":"222H05880700B1PM2","65_0":"222H05880700B1PY0","64_0":"222H05880700B1PC1","63_0":"222H05880700B1PC2","62_0":"222H05880700B1PL4","61_0":"222H05880700B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 22H Radiateur Décoratif 588x700 Blanc ∆t50°C=1000 Kcal/h |∆t60°C= 1261 Kcal/h | 8 Tuyeaux | Chauffe 7-20 m2

43.929,60 TL

17.571,84 TL
%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8274","68_0":"16509","67_0":"13764","66_0":"11019","65_0":"17769","64_0":"19029","63_0":"20289","62_0":"22221","61_0":"21951"},"variant_prices":{"69_0":"14643.2","68_0":"14643.2","67_0":"14643.2","66_0":"14643.2","65_0":"14643.2","64_0":"14643.2","63_0":"14643.2","62_0":"14643.2","61_0":"14643.2"},"variant_price_raws":{"69_0":14643.2,"68_0":14643.2,"67_0":14643.2,"66_0":14643.2,"65_0":14643.2,"64_0":14643.2,"63_0":14643.2,"62_0":14643.2,"61_0":14643.2},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":36608,"68_0":36608,"67_0":36608,"66_0":36608,"65_0":36608,"64_0":36608,"63_0":36608,"62_0":36608,"61_0":36608},"variant_supplier_codes":{"69_0":"222H05880700B2TS","68_0":"222H05880700B2TM1","67_0":"222H05880700B2TM3","66_0":"222H05880700B2TM2","65_0":"222H05880700B2TY0","64_0":"222H05880700B2TC1","63_0":"222H05880700B2TC2","62_0":"222H05880700B2TL4","61_0":"222H05880700B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 22H Radiateur Décoratif 588x700 Anthracite ∆t50°C=1000 Kcal/h |∆t60°C= 1261 Kcal/h | 8 Tuyeaux | Chauffe 7-20 m2

43.929,60 TL

17.571,84 TL
%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"8275","68_0":"16510","67_0":"13765","66_0":"11020","65_0":"17770","64_0":"19030","63_0":"20290","62_0":"22222","61_0":"21952"},"variant_prices":{"69_0":"14643.2","68_0":"14643.2","67_0":"14643.2","66_0":"14643.2","65_0":"14643.2","64_0":"14643.2","63_0":"14643.2","62_0":"14643.2","61_0":"14643.2"},"variant_price_raws":{"69_0":14643.2,"68_0":14643.2,"67_0":14643.2,"66_0":14643.2,"65_0":14643.2,"64_0":14643.2,"63_0":14643.2,"62_0":14643.2,"61_0":14643.2},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":36608,"68_0":36608,"67_0":36608,"66_0":36608,"65_0":36608,"64_0":36608,"63_0":36608,"62_0":36608,"61_0":36608},"variant_supplier_codes":{"69_0":"222H05880700B3MS","68_0":"222H05880700B3MM1","67_0":"222H05880700B3MM3","66_0":"222H05880700B3MM2","65_0":"222H05880700B3MY0","64_0":"222H05880700B3MC1","63_0":"222H05880700B3MC2","62_0":"222H05880700B3ML4","61_0":"222H05880700B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 22H Radiateur Décoratif 588x700 Noir mat ∆t50°C=1000 Kcal/h |∆t60°C= 1261 Kcal/h | 8 Tuyeaux | Chauffe 7-20 m2

43.929,60 TL

17.571,84 TL
