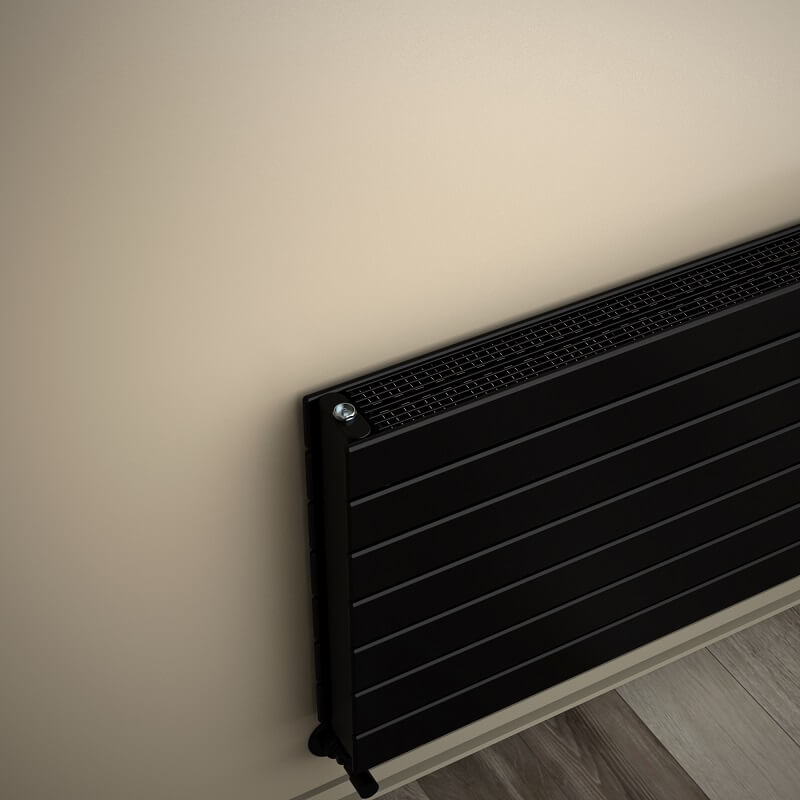

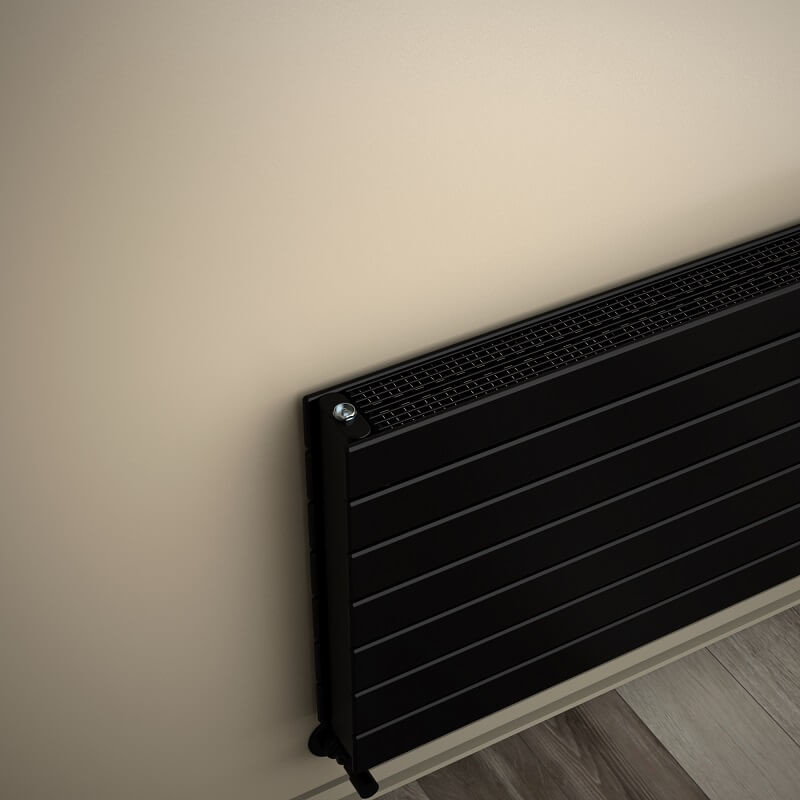

Type 22H Radiateur Décoratif 514x800 Noir mat

Name: Type 22H Radiateur Décoratif 514x800 Noir mat
SKU: 222H05140800B3MS
Price: 17382.24 TRY
Availability: InStock

Code De Produit : 222H05140800B3MS

Garantie : 15 Année

TAXES INCLUSES

Prix

43.455,60 TL

Prix réduit

17.382,24 TL

15 Yıl
Garanti

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8198","59_0":"10943","58_0":"13688","57_0":"16433","56_0":"17693","55_0":"18953","54_0":"20213","53_0":"21329","52_0":"21665"},"variant_prices":{"60_0":"14485.2","59_0":"14485.2","58_0":"14485.2","57_0":"14485.2","56_0":"14485.2","55_0":"14485.2","54_0":"14485.2","53_0":"14485.2","52_0":"14485.2"},"variant_price_raws":{"60_0":14485.2,"59_0":14485.2,"58_0":14485.2,"57_0":14485.2,"56_0":14485.2,"55_0":14485.2,"54_0":14485.2,"53_0":14485.2,"52_0":14485.2},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":36213,"59_0":36213,"58_0":36213,"57_0":36213,"56_0":36213,"55_0":36213,"54_0":36213,"53_0":36213,"52_0":36213},"variant_supplier_codes":{"60_0":"222H05140800B3MS","59_0":"222H05140800B3MM2","58_0":"222H05140800B3MM3","57_0":"222H05140800B3MM1","56_0":"222H05140800B3MY0","55_0":"222H05140800B3MC1","54_0":"222H05140800B3MC2","53_0":"222H05140800B3MR2","52_0":"222H05140800B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"99","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

28.11.2025 (28 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=700 mm

• Couleur / Revêtement=Matte Black RAL9005

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=6,6 lt

• Weight=22,7 kg

• Poids brute=24,08 kg

• Dimension de carton=57x76x13,6 cm

TAPPING OPTIONS

• Entrée Standard=650 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=790mm

• Croix en haut à droite / en bas à gauche=790mm

• Croix haut-gauche / bas-droite=790mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 910 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1147Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=466Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1057 Watt

• Puissance thérmique90/70-20°?t=60°C=1332 Watt

• Puissance thérmique55/45-20°?t=30°C=542 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=3607 Btu

• Puissance thérmique90/70-20°?t=60°C=4545 Btu

• Puissance thérmique55/45-20°?t=30°C=1847 Btu
