%50 réduit

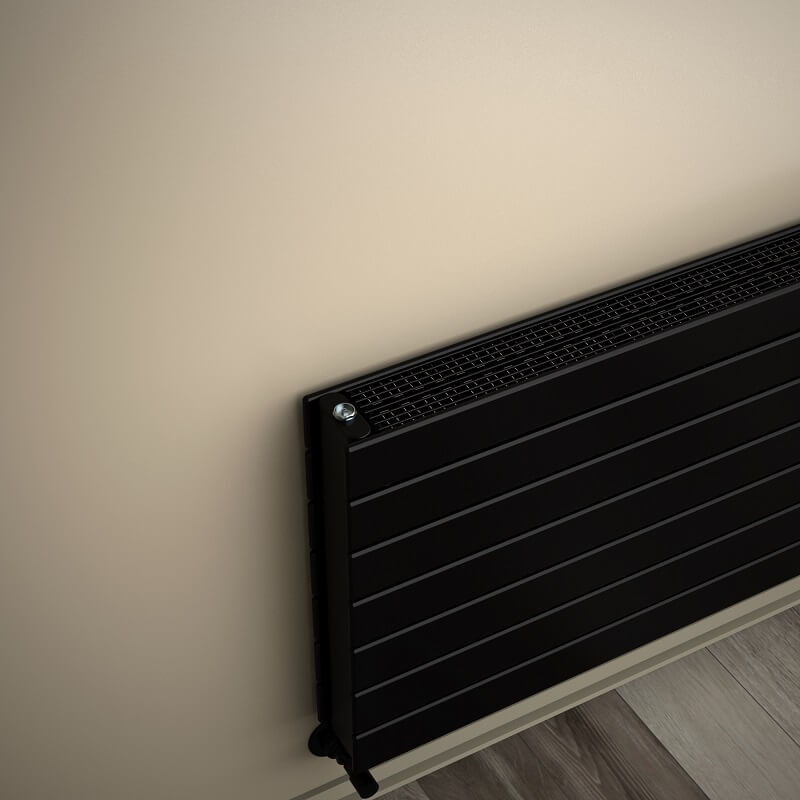

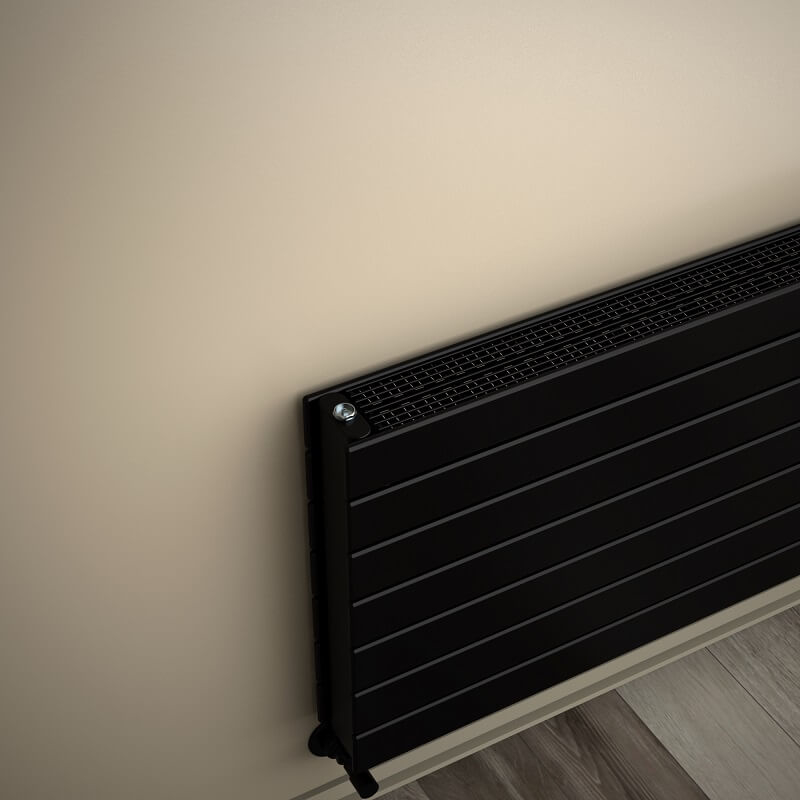

Type 22H Radiateur Décoratif 514x2500 Noir mat

Name: Type 22H Radiateur Décoratif 514x2500 Noir mat
SKU: 222H05142500B3MS
Price: 45168.00 TRY
Availability: InStock

Code De Produit : 222H05142500B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

90.336,00 TL

Prix réduit

45.168,00 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8266","59_0":"11011","58_0":"13756","57_0":"16501","56_0":"17761","55_0":"19021","54_0":"20281","53_0":"21397","52_0":"21733"},"variant_prices":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"variant_price_raws":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"75280","59_0":"76880","58_0":"76880","57_0":"76880","56_0":"76880","55_0":"76880","54_0":"76880","53_0":"76880","52_0":"76880"},"variant_supplier_codes":{"60_0":"222H05142500B3MS","59_0":"222H05142500B3MM2","58_0":"222H05142500B3MM3","57_0":"222H05142500B3MM1","56_0":"222H05142500B3MY0","55_0":"222H05142500B3MC1","54_0":"222H05142500B3MC2","53_0":"222H05142500B3MR2","52_0":"222H05142500B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

31.08.2024 (105 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=2400 mm

• Couleur / Revêtement=Matte Black RAL9005

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=18,4 lt

• Weight=74,5 kg

• Poids brute=78,51 kg

• Dimension de carton=57x246x13,6 cm

TAPPING OPTIONS

• Entrée Standard=2350 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2490mm

• Croix en haut à droite / en bas à gauche=2490mm

• Croix haut-gauche / bas-droite=2490mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 3131 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3946Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1604Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=3640 Watt

• Puissance thérmique90/70-20°?t=60°C=4587 Watt

• Puissance thérmique55/45-20°?t=30°C=1864 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=12420 Btu

• Puissance thérmique90/70-20°?t=60°C=15650 Btu

• Puissance thérmique55/45-20°?t=30°C=6360 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

105 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%50 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8264","59_0":"11009","58_0":"13754","57_0":"16499","56_0":"17759","55_0":"19019","54_0":"20279","53_0":"21395","52_0":"21731"},"variant_prices":{"60_0":30112,"59_0":30912,"58_0":30912,"57_0":30912,"56_0":30912,"55_0":30912,"54_0":30912,"53_0":30912,"52_0":30912},"variant_price_raws":{"60_0":30112,"59_0":30912,"58_0":30912,"57_0":30912,"56_0":30912,"55_0":30912,"54_0":30912,"53_0":30912,"52_0":30912},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"60224","59_0":"61824","58_0":"61824","57_0":"61824","56_0":"61824","55_0":"61824","54_0":"61824","53_0":"61824","52_0":"61824"},"variant_supplier_codes":{"60_0":"222H05142500B1PS","59_0":"222H05142500B1PM2","58_0":"222H05142500B1PM3","57_0":"222H05142500B1PM1","56_0":"222H05142500B1PY0","55_0":"222H05142500B1PC1","54_0":"222H05142500B1PC2","53_0":"222H05142500B1PR2","52_0":"222H05142500B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2500 Blanc ∆t50°C=3261 Kcal/h |∆t60°C= 4111 Kcal/h | 7 Tuyeaux | Chauffe 21-63 m2

72.268,80 TL

36.134,40 TL
%50 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8265","59_0":"11010","58_0":"13755","57_0":"16500","56_0":"17760","55_0":"19020","54_0":"20280","53_0":"21396","52_0":"21732"},"variant_prices":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"variant_price_raws":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"75280","59_0":"76880","58_0":"76880","57_0":"76880","56_0":"76880","55_0":"76880","54_0":"76880","53_0":"76880","52_0":"76880"},"variant_supplier_codes":{"60_0":"222H05142500B2TS","59_0":"222H05142500B2TM2","58_0":"222H05142500B2TM3","57_0":"222H05142500B2TM1","56_0":"222H05142500B2TY0","55_0":"222H05142500B2TC1","54_0":"222H05142500B2TC2","53_0":"222H05142500B2TR2","52_0":"222H05142500B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2500 Anthracite ∆t50°C=3261 Kcal/h |∆t60°C= 4111 Kcal/h | 7 Tuyeaux | Chauffe 21-63 m2

90.336,00 TL

45.168,00 TL
%50 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8266","59_0":"11011","58_0":"13756","57_0":"16501","56_0":"17761","55_0":"19021","54_0":"20281","53_0":"21397","52_0":"21733"},"variant_prices":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"variant_price_raws":{"60_0":37640,"59_0":38440,"58_0":38440,"57_0":38440,"56_0":38440,"55_0":38440,"54_0":38440,"53_0":38440,"52_0":38440},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"75280","59_0":"76880","58_0":"76880","57_0":"76880","56_0":"76880","55_0":"76880","54_0":"76880","53_0":"76880","52_0":"76880"},"variant_supplier_codes":{"60_0":"222H05142500B3MS","59_0":"222H05142500B3MM2","58_0":"222H05142500B3MM3","57_0":"222H05142500B3MM1","56_0":"222H05142500B3MY0","55_0":"222H05142500B3MC1","54_0":"222H05142500B3MC2","53_0":"222H05142500B3MR2","52_0":"222H05142500B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2500 Noir mat ∆t50°C=3261 Kcal/h |∆t60°C= 4111 Kcal/h | 7 Tuyeaux | Chauffe 21-63 m2

90.336,00 TL

45.168,00 TL
%50 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8267","59_0":"11012","58_0":"13757","57_0":"16502","56_0":"17762","55_0":"19022","54_0":"20282","53_0":"21398","52_0":"21734"},"variant_prices":{"60_0":37476,"59_0":38276,"58_0":38276,"57_0":38276,"56_0":38276,"55_0":38276,"54_0":38276,"53_0":38276,"52_0":38276},"variant_price_raws":{"60_0":37476,"59_0":38276,"58_0":38276,"57_0":38276,"56_0":38276,"55_0":38276,"54_0":38276,"53_0":38276,"52_0":38276},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"74952","59_0":"76552","58_0":"76552","57_0":"76552","56_0":"76552","55_0":"76552","54_0":"76552","53_0":"76552","52_0":"76552"},"variant_supplier_codes":{"60_0":"222H05142500K6FS","59_0":"222H05142500K6FM2","58_0":"222H05142500K6FM3","57_0":"222H05142500K6FM1","56_0":"222H05142500K6FY0","55_0":"222H05142500K6FC1","54_0":"222H05142500K6FC2","53_0":"222H05142500K6FR2","52_0":"222H05142500K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2500 Effet bois ∆t50°C=3261 Kcal/h |∆t60°C= 4111 Kcal/h | 7 Tuyeaux | Chauffe 21-63 m2

89.942,40 TL

44.971,20 TL
