%60 réduit

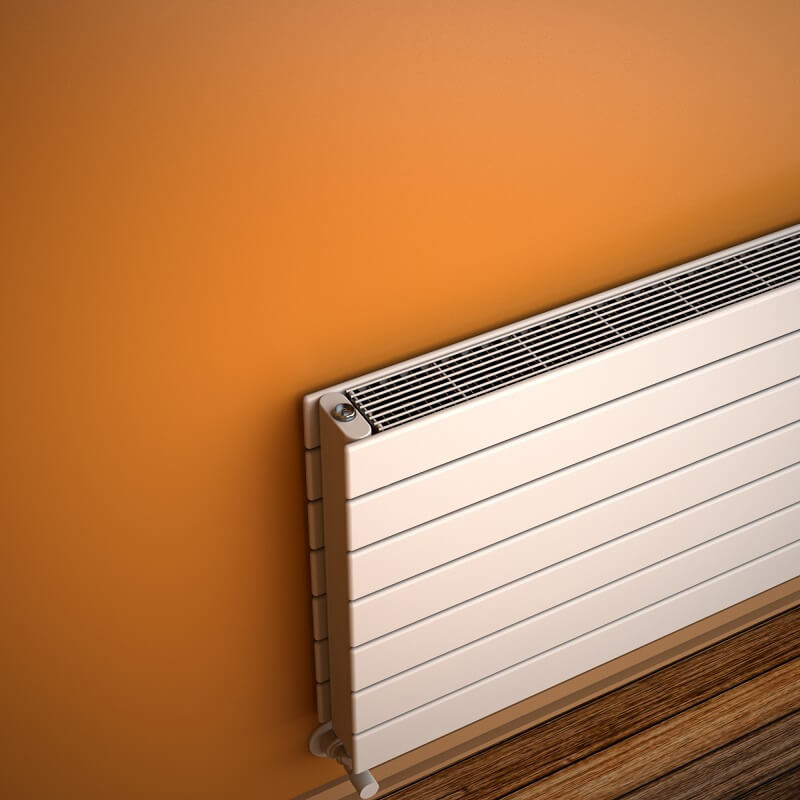

Type 22H Radiateur Décoratif 514x2400 Blanc

Name: Type 22H Radiateur Décoratif 514x2400 Blanc
SKU: 222H05142400B1PS
Price: 39974.40 TRY
Availability: InStock

Code De Produit : 222H05142400B1PS

Garantie : 15 Année

TAXES INCLUSES

Prix

99.936,00 TL

Prix réduit

39.974,40 TL

15 Yıl
Garanti

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8260","59_0":"11005","58_0":"13750","57_0":"16495","56_0":"17755","55_0":"19015","54_0":"20275","53_0":"21391","52_0":"21727"},"variant_prices":{"60_0":"33312","59_0":"33312","58_0":"33312","57_0":"33312","56_0":"33312","55_0":"33312","54_0":"33312","53_0":"33312","52_0":"33312"},"variant_price_raws":{"60_0":33312,"59_0":33312,"58_0":33312,"57_0":33312,"56_0":33312,"55_0":33312,"54_0":33312,"53_0":33312,"52_0":33312},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":83280,"59_0":83280,"58_0":83280,"57_0":83280,"56_0":83280,"55_0":83280,"54_0":83280,"53_0":83280,"52_0":83280},"variant_supplier_codes":{"60_0":"222H05142400B1PS","59_0":"222H05142400B1PM2","58_0":"222H05142400B1PM3","57_0":"222H05142400B1PM1","56_0":"222H05142400B1PY0","55_0":"222H05142400B1PC1","54_0":"222H05142400B1PC2","53_0":"222H05142400B1PR2","52_0":"222H05142400B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

28.11.2025 (28 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=2300 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17,7 lt

• Weight=71,5 kg

• Poids brute=75,35 kg

• Dimension de carton=57x236x13,6 cm

TAPPING OPTIONS

• Entrée Standard=2250 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2390mm

• Croix en haut à droite / en bas à gauche=2390mm

• Croix haut-gauche / bas-droite=2390mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 3001 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3782Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1537Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=3489 Watt

• Puissance thérmique90/70-20°?t=60°C=4397 Watt

• Puissance thérmique55/45-20°?t=30°C=1787 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=11905 Btu

• Puissance thérmique90/70-20°?t=60°C=15001 Btu

• Puissance thérmique55/45-20°?t=30°C=6096 Btu

Informations Sur La Garantie

:

15 Années

Livraison Info

:

28 Jours

Les Étiquettes Des Produits

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

D'autres Couleurs

%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8260","59_0":"11005","58_0":"13750","57_0":"16495","56_0":"17755","55_0":"19015","54_0":"20275","53_0":"21391","52_0":"21727"},"variant_prices":{"60_0":"33312","59_0":"33312","58_0":"33312","57_0":"33312","56_0":"33312","55_0":"33312","54_0":"33312","53_0":"33312","52_0":"33312"},"variant_price_raws":{"60_0":33312,"59_0":33312,"58_0":33312,"57_0":33312,"56_0":33312,"55_0":33312,"54_0":33312,"53_0":33312,"52_0":33312},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":83280,"59_0":83280,"58_0":83280,"57_0":83280,"56_0":83280,"55_0":83280,"54_0":83280,"53_0":83280,"52_0":83280},"variant_supplier_codes":{"60_0":"222H05142400B1PS","59_0":"222H05142400B1PM2","58_0":"222H05142400B1PM3","57_0":"222H05142400B1PM1","56_0":"222H05142400B1PY0","55_0":"222H05142400B1PC1","54_0":"222H05142400B1PC2","53_0":"222H05142400B1PR2","52_0":"222H05142400B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2400 Blanc ∆t50°C=3130 Kcal/h |∆t60°C= 3946 Kcal/h | 7 Tuyeaux | Chauffe 21-61 m2

99.936,00 TL

39.974,40 TL
%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8261","59_0":"11006","58_0":"13751","57_0":"16496","56_0":"17756","55_0":"19016","54_0":"20276","53_0":"21392","52_0":"21728"},"variant_prices":{"60_0":"33312","59_0":"33312","58_0":"33312","57_0":"33312","56_0":"33312","55_0":"33312","54_0":"33312","53_0":"33312","52_0":"33312"},"variant_price_raws":{"60_0":33312,"59_0":33312,"58_0":33312,"57_0":33312,"56_0":33312,"55_0":33312,"54_0":33312,"53_0":33312,"52_0":33312},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":83280,"59_0":83280,"58_0":83280,"57_0":83280,"56_0":83280,"55_0":83280,"54_0":83280,"53_0":83280,"52_0":83280},"variant_supplier_codes":{"60_0":"222H05142400B2TS","59_0":"222H05142400B2TM2","58_0":"222H05142400B2TM3","57_0":"222H05142400B2TM1","56_0":"222H05142400B2TY0","55_0":"222H05142400B2TC1","54_0":"222H05142400B2TC2","53_0":"222H05142400B2TR2","52_0":"222H05142400B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2400 Anthracite ∆t50°C=3130 Kcal/h |∆t60°C= 3946 Kcal/h | 7 Tuyeaux | Chauffe 21-61 m2

99.936,00 TL

39.974,40 TL
%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8262","59_0":"11007","58_0":"13752","57_0":"16497","56_0":"17757","55_0":"19017","54_0":"20277","53_0":"21393","52_0":"21729"},"variant_prices":{"60_0":"33312","59_0":"33312","58_0":"33312","57_0":"33312","56_0":"33312","55_0":"33312","54_0":"33312","53_0":"33312","52_0":"33312"},"variant_price_raws":{"60_0":33312,"59_0":33312,"58_0":33312,"57_0":33312,"56_0":33312,"55_0":33312,"54_0":33312,"53_0":33312,"52_0":33312},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":83280,"59_0":83280,"58_0":83280,"57_0":83280,"56_0":83280,"55_0":83280,"54_0":83280,"53_0":83280,"52_0":83280},"variant_supplier_codes":{"60_0":"222H05142400B3MS","59_0":"222H05142400B3MM2","58_0":"222H05142400B3MM3","57_0":"222H05142400B3MM1","56_0":"222H05142400B3MY0","55_0":"222H05142400B3MC1","54_0":"222H05142400B3MC2","53_0":"222H05142400B3MR2","52_0":"222H05142400B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2400 Noir mat ∆t50°C=3130 Kcal/h |∆t60°C= 3946 Kcal/h | 7 Tuyeaux | Chauffe 21-61 m2

99.936,00 TL

39.974,40 TL
