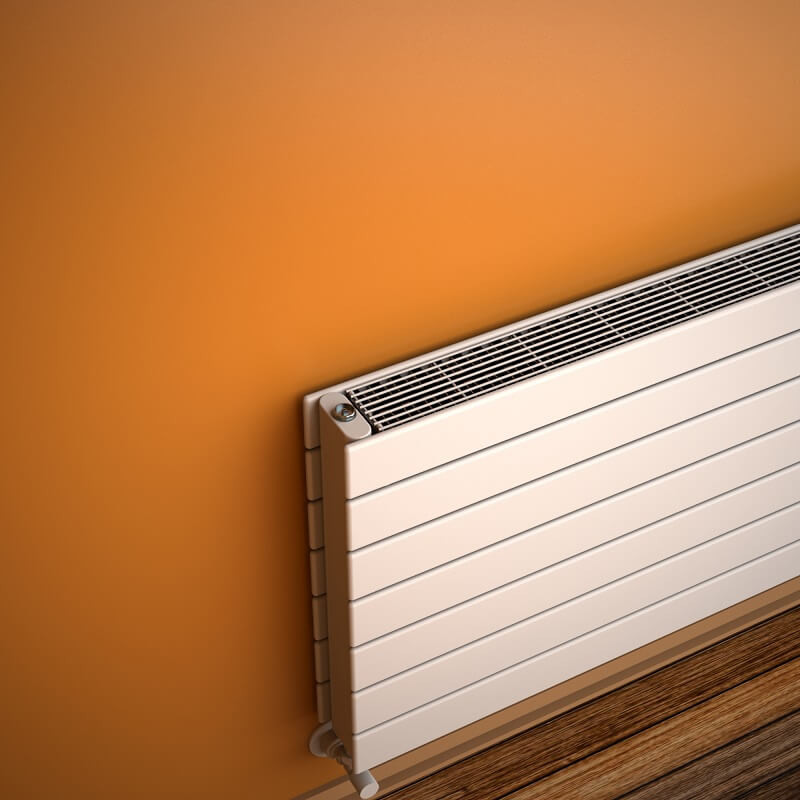

Type 22H Radiateur Décoratif 514x2300 Blanc

Name: Type 22H Radiateur Décoratif 514x2300 Blanc
SKU: 222H05142300B1PS
Price: 38553.60 TRY
Availability: InStock

Code De Produit : 222H05142300B1PS

Garantie : 15 Année

TAXES INCLUSES

Prix

96.384,00 TL

Prix réduit

38.553,60 TL

15 Yıl
Garanti

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8256","59_0":"11001","58_0":"13746","57_0":"16491","56_0":"17751","55_0":"19011","54_0":"20271","53_0":"21387","52_0":"21723"},"variant_prices":{"60_0":"32128","59_0":"32128","58_0":"32128","57_0":"32128","56_0":"32128","55_0":"32128","54_0":"32128","53_0":"32128","52_0":"32128"},"variant_price_raws":{"60_0":32128,"59_0":32128,"58_0":32128,"57_0":32128,"56_0":32128,"55_0":32128,"54_0":32128,"53_0":32128,"52_0":32128},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":80320,"59_0":80320,"58_0":80320,"57_0":80320,"56_0":80320,"55_0":80320,"54_0":80320,"53_0":80320,"52_0":80320},"variant_supplier_codes":{"60_0":"222H05142300B1PS","59_0":"222H05142300B1PM2","58_0":"222H05142300B1PM3","57_0":"222H05142300B1PM1","56_0":"222H05142300B1PY0","55_0":"222H05142300B1PC1","54_0":"222H05142300B1PC2","53_0":"222H05142300B1PR2","52_0":"222H05142300B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

28.11.2025 (28 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=2200 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17,1 lt

• Weight=68,4 kg

• Poids brute=72,1 kg

• Dimension de carton=57x226x13,6 cm

TAPPING OPTIONS

• Entrée Standard=2150 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2290mm

• Croix en haut à droite / en bas à gauche=2290mm

• Croix haut-gauche / bas-droite=2290mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 2870 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3617Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1470Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=3337 Watt

• Puissance thérmique90/70-20°?t=60°C=4205 Watt

• Puissance thérmique55/45-20°?t=30°C=1709 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=11386 Btu

• Puissance thérmique90/70-20°?t=60°C=14347 Btu

• Puissance thérmique55/45-20°?t=30°C=5830 Btu

Informations Sur La Garantie

:

15 Années

Livraison Info

:

28 Jours

Les Étiquettes Des Produits

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

D'autres Couleurs

%60 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8256","59_0":"11001","58_0":"13746","57_0":"16491","56_0":"17751","55_0":"19011","54_0":"20271","53_0":"21387","52_0":"21723"},"variant_prices":{"60_0":"32128","59_0":"32128","58_0":"32128","57_0":"32128","56_0":"32128","55_0":"32128","54_0":"32128","53_0":"32128","52_0":"32128"},"variant_price_raws":{"60_0":32128,"59_0":32128,"58_0":32128,"57_0":32128,"56_0":32128,"55_0":32128,"54_0":32128,"53_0":32128,"52_0":32128},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":80320,"59_0":80320,"58_0":80320,"57_0":80320,"56_0":80320,"55_0":80320,"54_0":80320,"53_0":80320,"52_0":80320},"variant_supplier_codes":{"60_0":"222H05142300B1PS","59_0":"222H05142300B1PM2","58_0":"222H05142300B1PM3","57_0":"222H05142300B1PM1","56_0":"222H05142300B1PY0","55_0":"222H05142300B1PC1","54_0":"222H05142300B1PC2","53_0":"222H05142300B1PR2","52_0":"222H05142300B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 22H Radiateur Décoratif 514x2300 Blanc ∆t50°C=3001 Kcal/h |∆t60°C= 3783 Kcal/h | 7 Tuyeaux | Chauffe 20-58 m2
